4.3.3.4.6 For U.S. only: Mounting Two Cabinets Stacked on the Wall
You can mount two cabinets stacked on the wall using the wall-mount kit.
Wall-Mount Kit
Procedure
7
DANGER
The second cabinet also requires an earth ground as described on
Section 4.3.3.5.2. Do not fasten wall-mounted cabinets with the connecting plates,
as this will interfere with the earth ground.

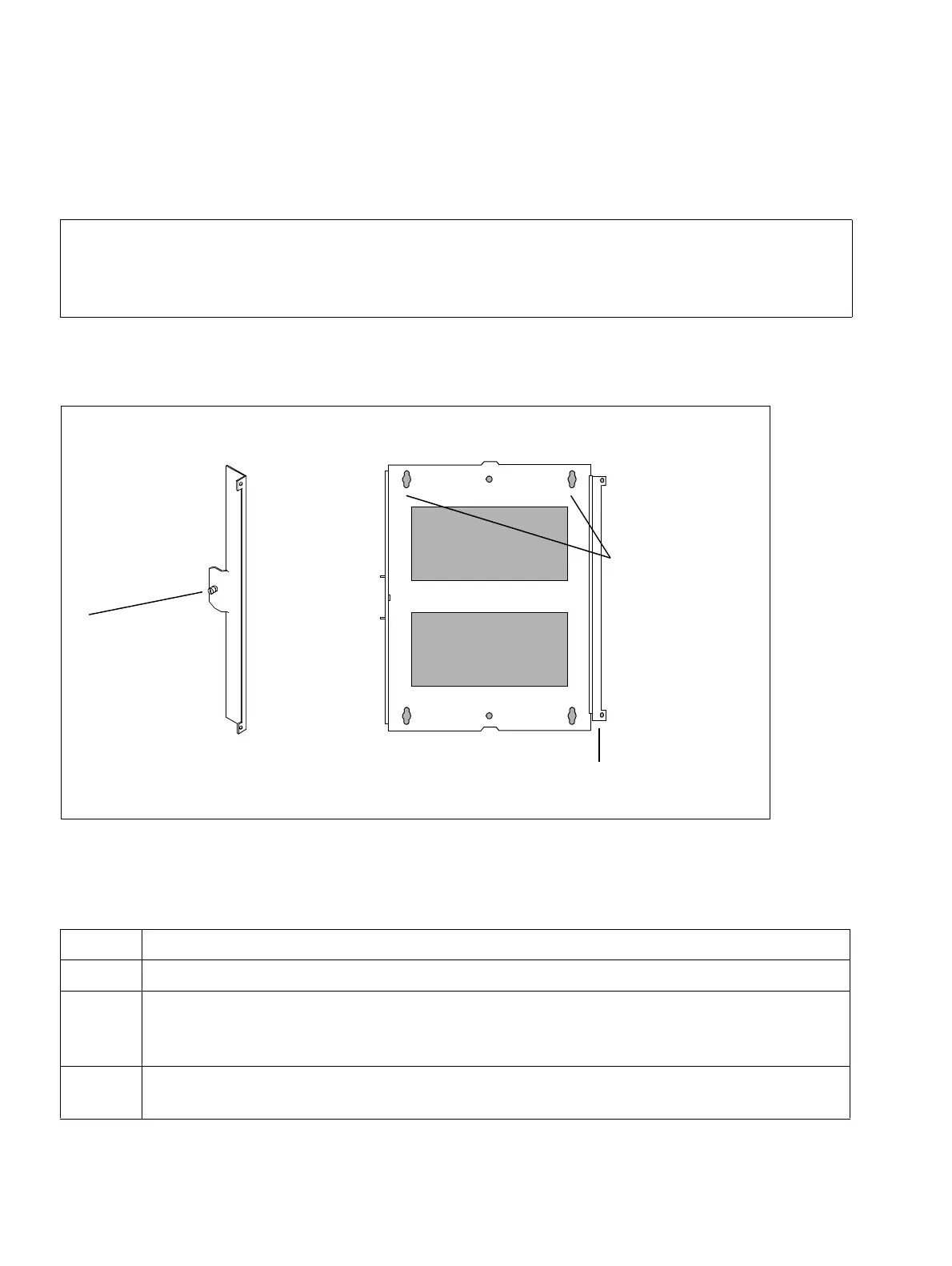

Figure 4-53 HiPath 3750 - Wall-Mount Kit (for U.S. only)
Step Activity
1. Install a plywood backboard at least 0.75 in. (19.05 mm) thick.
2. Use the wall-mounting bracket as a template to drill three holes in the backboard.
Use the keyed holes in the top of the bracket and the round hole in the bottom of the
bracket.
3. Install the screws in the top two holes for each bracket, tightening them until 0.25 in.
(6.35 mm) is protruding.
Latching assembly Bracket for wall mounting
Latch
Keyed holes
Swing-out component
