Siemens HiPath 3000 Service Manual

sysdat.fm
P31003-H3550-S403-4-7620, 02/05
HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
2-11
System Data
HiPath 3000
2.2.2.7 Design and Dimensions of HiPath 3300
Design
The housing intended for use with 19-inch cabinets (Figure 2-7)HiPath 3300 contains three
slots with the following assignments (represented in Figure 4-112):
● Slot level 1: slide-in shelves for two peripheral boards
● Slot level 2: slide-in shelf for CBRC control board
● Slot level 3: Optional boards (up to 3 modules)
The power supply is on the rear panel of the subrack.
The connection to peripherals (telephones, trunks, and others) is set up using MW8 jacks on
the board’s front cover.
Dimensions

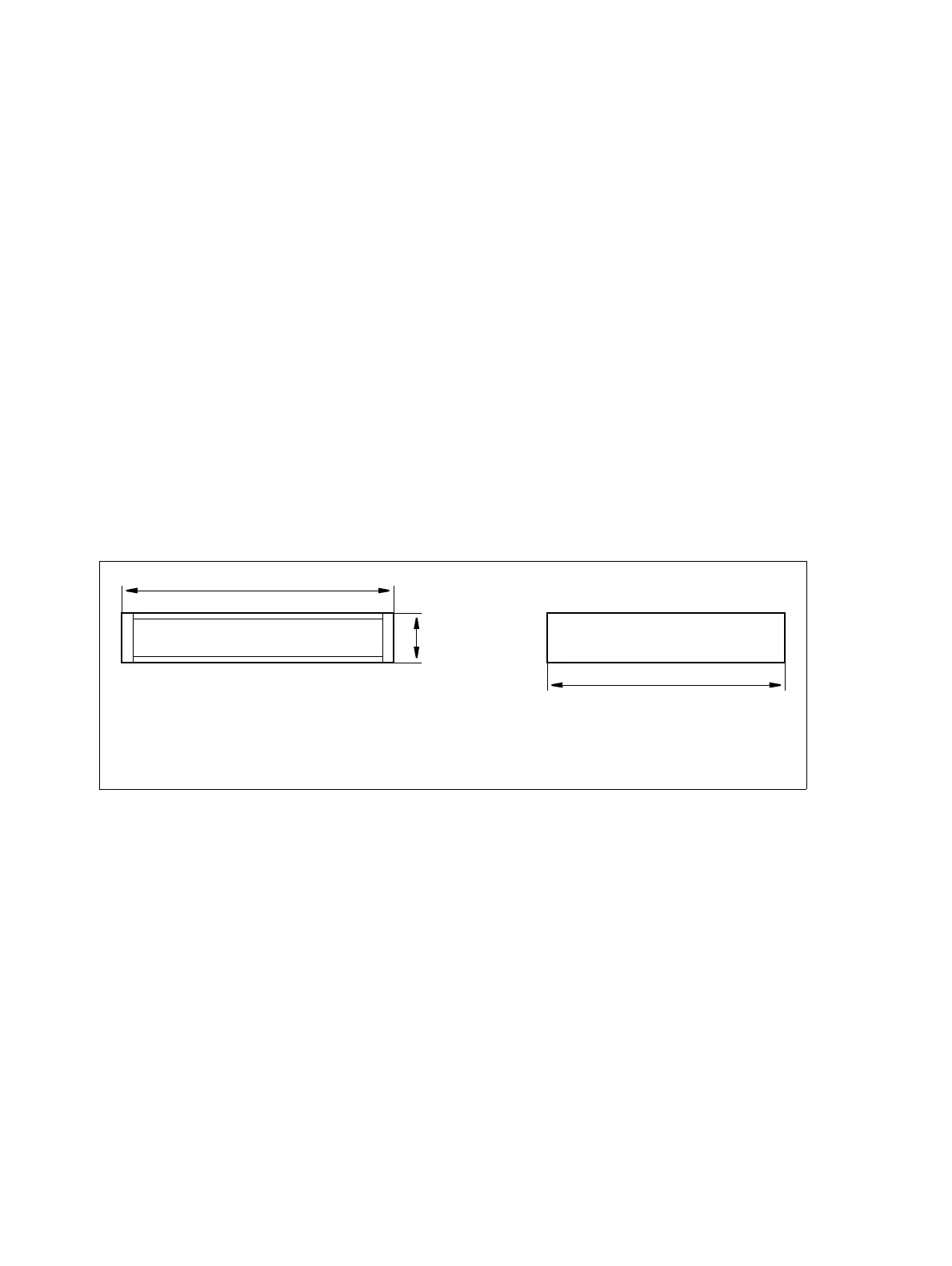

Figure 2-7 HiPath 3300 Dimensions
440 mm
88 mm
380 mm
Necessary height units for 19-inch cabinet assembly: 2
(one height unit corresponds to approx. 1.7’’=43 mm)
