Siemens HiPath 3000 Service Manual

Installing HiPath 3000
P31003-H3550-S403-4-7620, 02/05
4-124 HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
inst_h3.fm
Installing HiPath 3750, HiPath 3700
Layout and dimensions of the MDFU

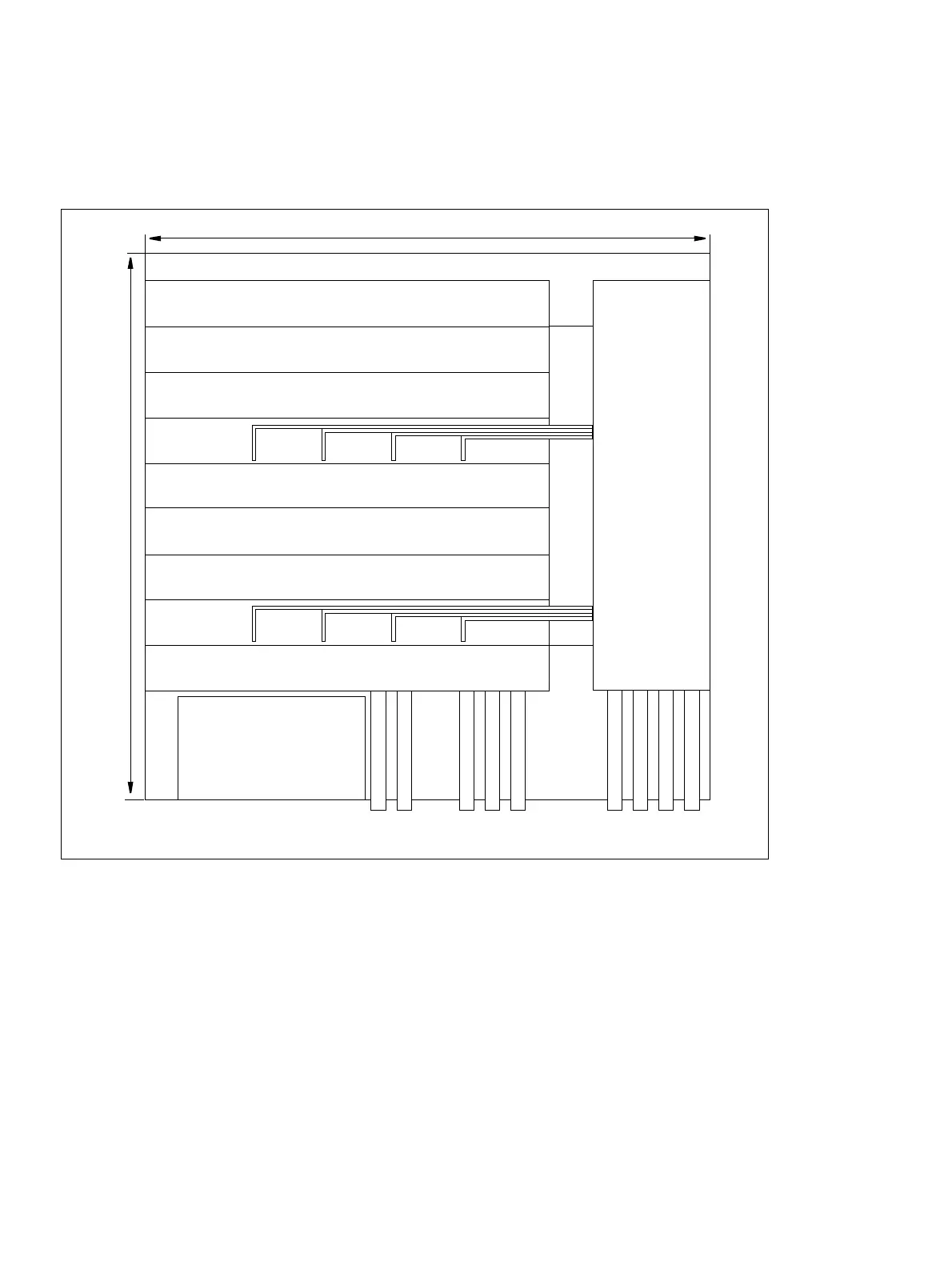

Figure 4-70 MDFU - Layout and Dimensions (367.0 x 328.8 x 125.4 mm) (not for U.S.)
2 x PFT1
or
1 x PFT4
9 slots (9 x 30 mm)
Special built-in comps.
System side Line network
328.8
367.0
1
2
3
6
4
5
Jumpering
Channel
9
7
8
