Siemens HiPath 3000 Service Manual

Installing HiPath 3000
P31003-H3550-S403-4-7620, 02/05
4-182 HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
inst_h3.fm
Installing HiPath 3550, HiPath 3350, HiPath 3500, and HiPath 3300

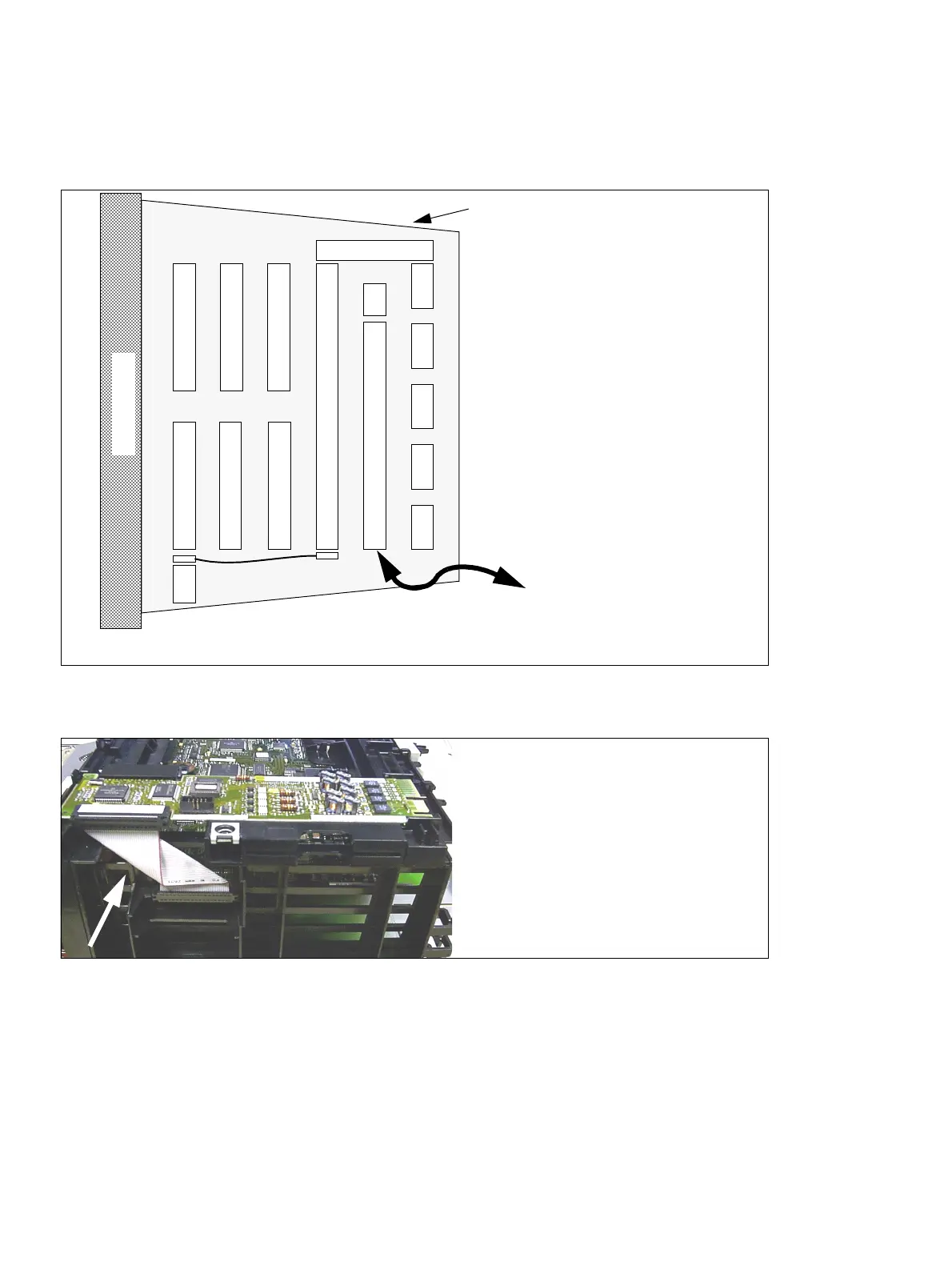

Figure 4-103 HiPath 3550 - Slots in the Wall Housing
Figure 4-104 HiPath 3550 - Option Adapter Long (OPAL)
Opt.1
Opt.2
Opt.3Opt.4
Opt.5
Slot 10 (HiPath 3750
Slot 4 Slot 8 Slot 6
Slot 5
Slot 9
Slot 7
V.24
Slot 2Slot 3 CBCC
OPAL
Wall
to MDF
CUC: Connection Unit Com
Slot levels
123456
The CBCC board is connected to
the optional board via a ribbon ca-
ble (OPAL) (see adjacent figure).
