Boards for HiPath 3000
P31003-H3550-S403-4-7620, 02/05
3-64 HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
boards.fm
Central Boards

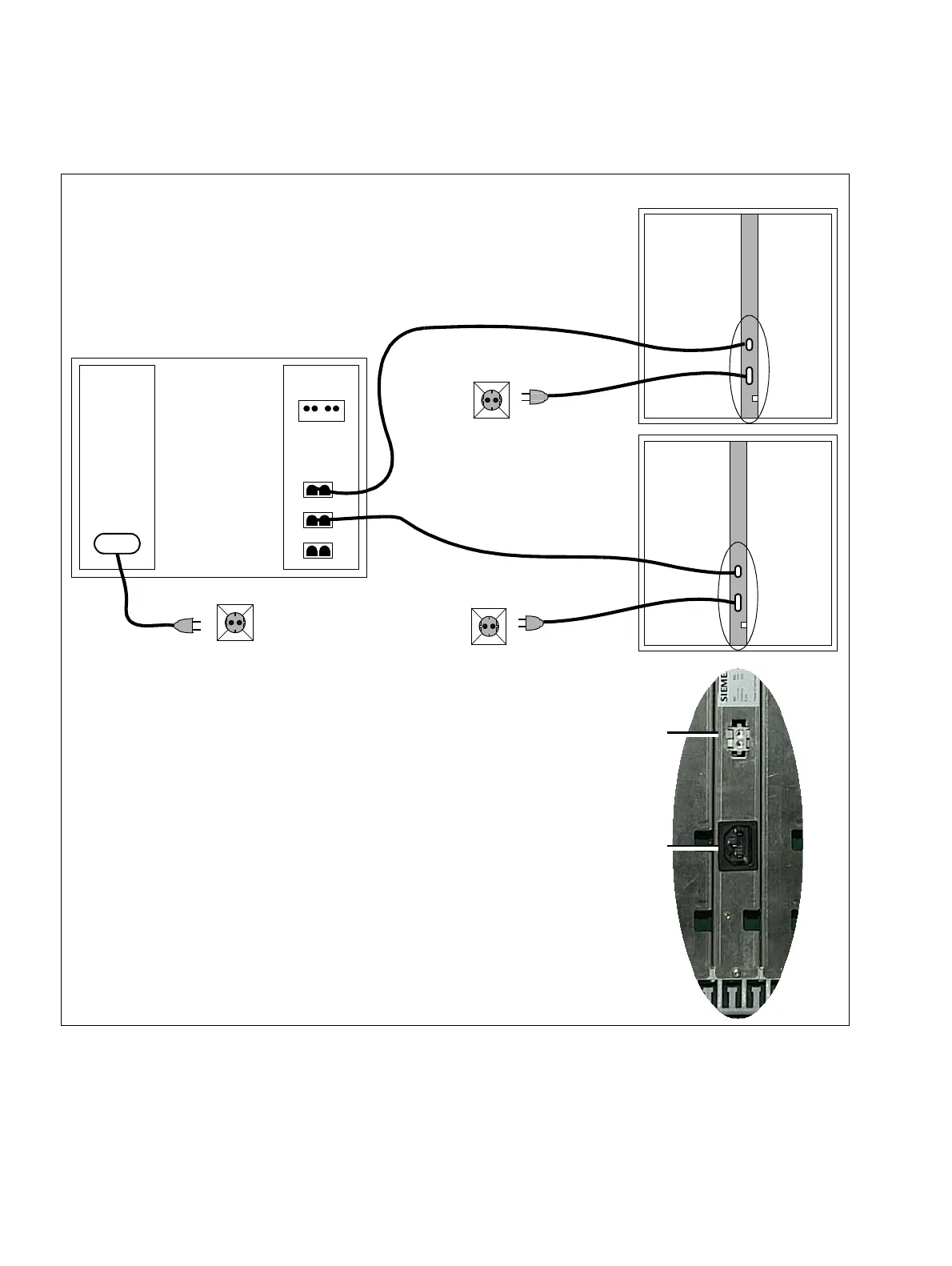

Figure 3-23 Connections Between the BSG 48/38 Battery Cabinet and HiPath 3800
DC
Output 1,
–48 V
1
2
3
BSG 48/38
with batt.set
(38 Ah/48 V)
100 - 240 Vac
50 - 60 Hz
AC input
Note: For reasons of clarity, the system cabinets are shown sepa-
rately and without grounding.
DC connection cable
DC connection cable
X210
X211
X210
X211
Basic cabi-
net
100 - 240 Vac
50 - 60 Hz
X210
X211
X210
X211
Expan-
sion cabi-
net
100 - 240 Vac
50 - 60 Hz
X210
DC port
X211
AC power
HiPath 3800
