boards.fm
P31003-H3550-S403-4-7620, 02/05
HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
3-83
Boards for HiPath 3000
Central Boards

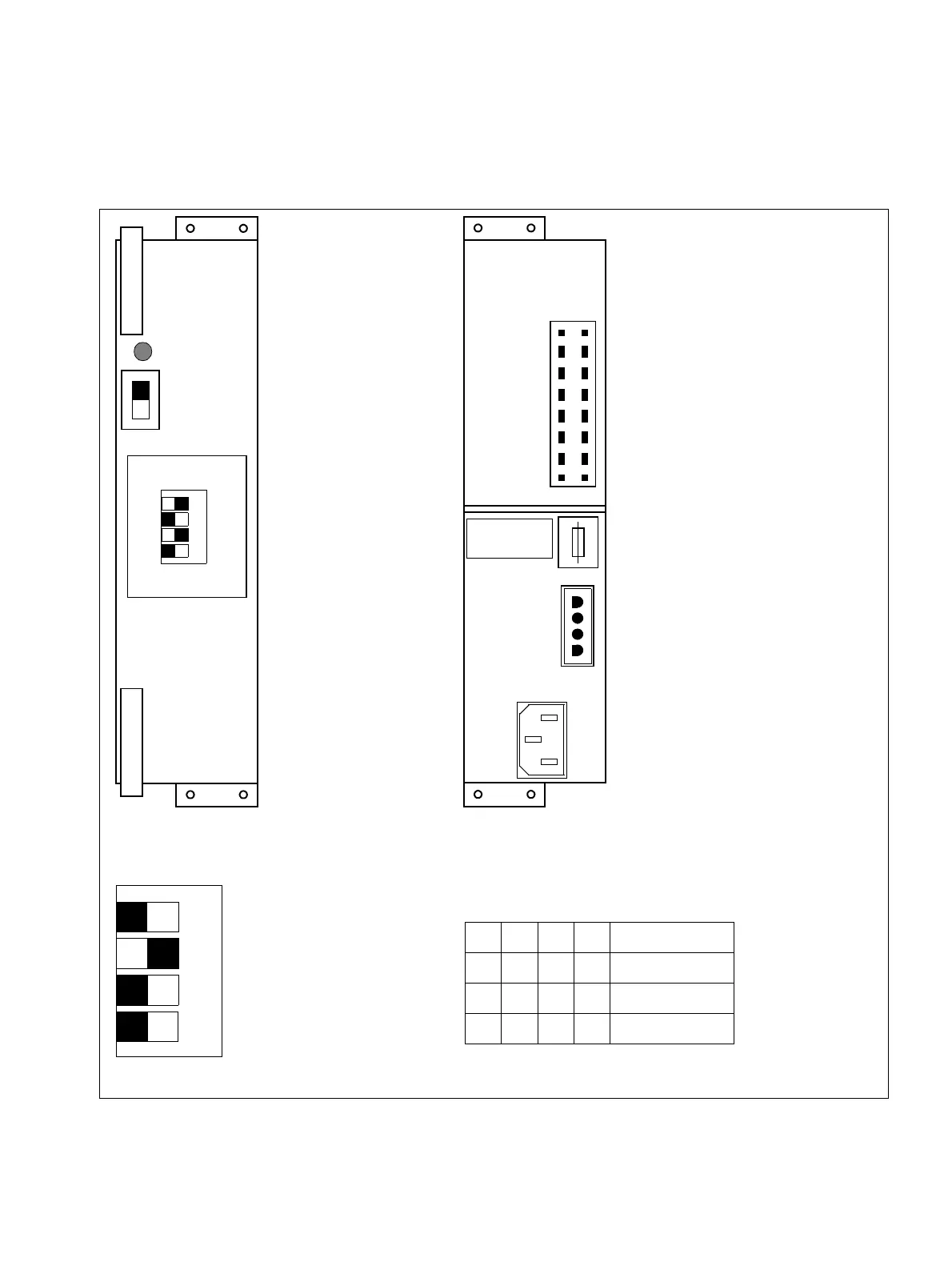

Front and rear views of the UPSM (S30122-K5950-A100)
Figure 3-34 Front and Rear Views of the UPSM (S30122-K5950-A100)
REAR
VIEW
FRONT
VIEW
LED
Warning:
High Voltage
Connector for system supply
voltages
AC outlet
OFF
ON
Modular ring genera-
tor
ON/OFF switch for
secondary operating
voltages (system sup-
ply voltages)
Overload protection for battery
mode
1
4
3
2
DIP switches
(for example 25 Hz)
Off On
Modular ring generator
Ring frequency selector:
DIP switch settings
(S4 = used for factory testing)
1234Frequency
On Off Off 20 Hz
Off On Off 25 Hz
Off Off On 50 Hz
Connector for battery pack or
battery cabinet
Only plug in or unplug the
connector when in de-ener-
gized state (switch = OFF).
