boards.fm
P31003-H3550-S403-4-7620, 02/05
HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
3-99
Boards for HiPath 3000
Peripheral Boards
LAN adapter cable (for U.S. only)
The LAN connection is made with a special shielded adapter cable (CHAMP after the RJ45).

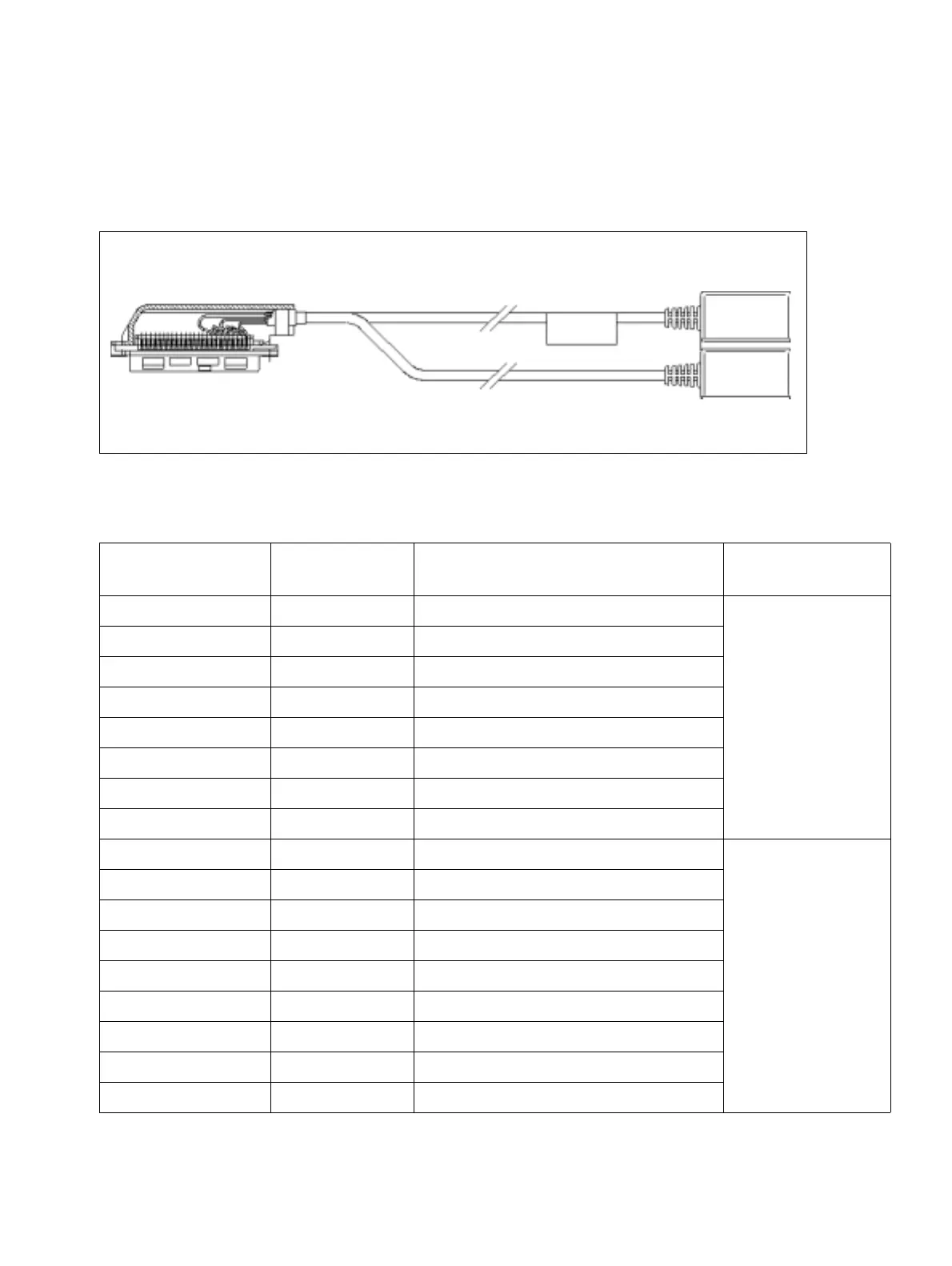

Figure 3-43 HXGM3 LAN Adapter Cable for Backplane (for U.S. only)
Table 3-40 HXGM3 - LAN Adapter Cable Assignment (for U.S. only)
CHAMP connec-
tor
RJ45 jack Signal LAN connection
34 1 TDP (Transmit Data +) LAN 2
35 2 TDN (Transmit Data –)
36 4 TT1 (Transmit Termination 1)
37 5 TT2 (Transmit Termination 2)
38 3 RDP (Receive Data +)
39 6 RDN (Receive Data –)
40 7 RT1 (Receive Termination 1)
41 8 RT2 (Receive Termination 2)
42 1 TDP (Transmit Data +) LAN 1
43 2 TDN (Transmit Data –)
44 4 TT1 (Transmit Termination 1)
45 5 TT2 (Transmit Termination 2)
46 3 RDP (Receive Data +)
47 6 RDN (Receive Data –)
48 7 RT1 (Receive Termination 1)
49 8 RT2 (Receive Termination 2)
25, 50 Housing Shield
RJ45 socket: LAN 1
(10/100 BaseT)
RJ45 socket: LAN 2
(10 BaseT)
CHAMP (backplane)
