Siemens HiPath 3000 Service Manual

Boards for HiPath 3000
P31003-H3550-S403-4-7620, 02/05
3-224 HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
boards.fm
Peripheral Boards
Front panel

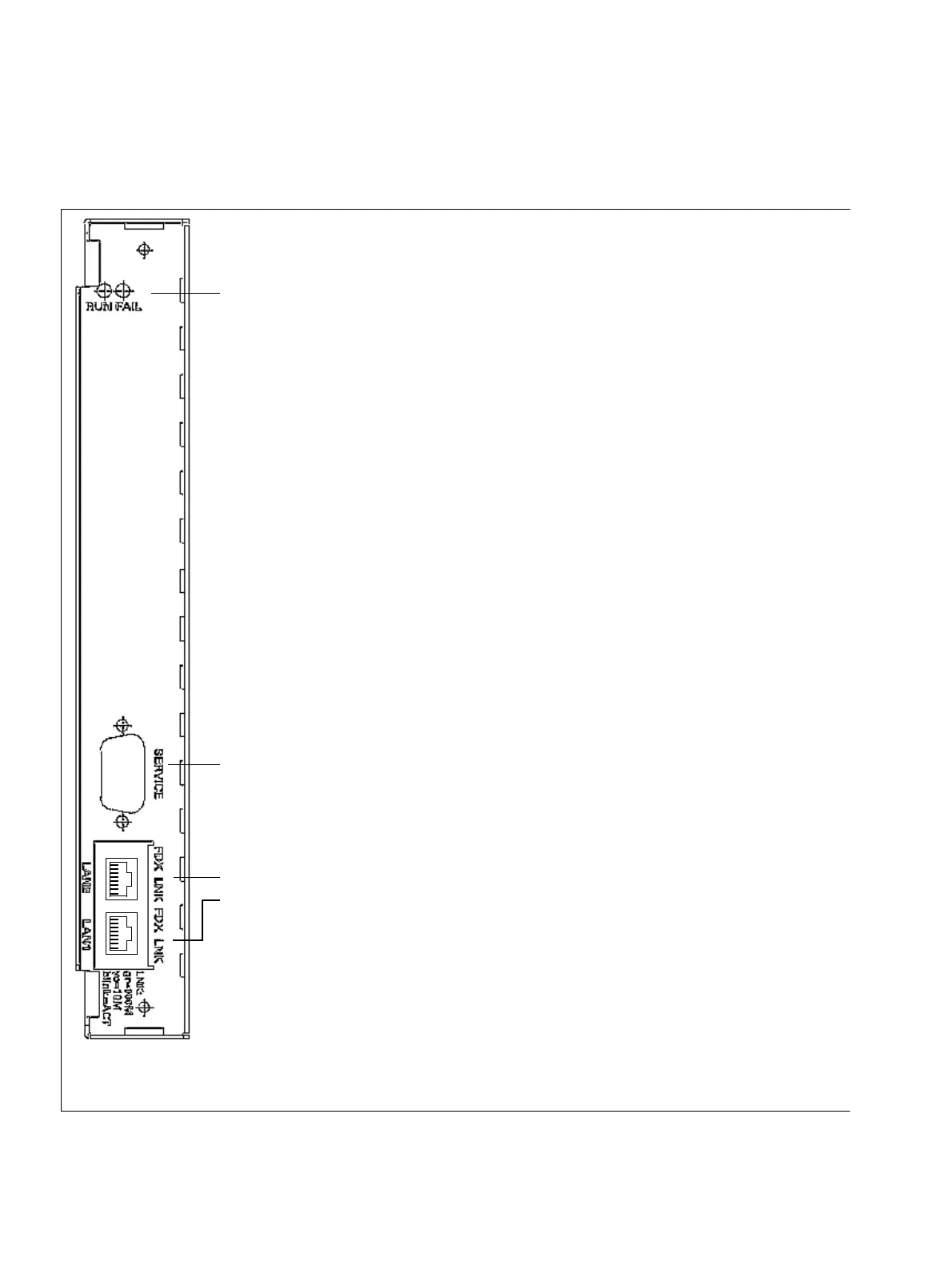

Figure 3-94 STMI2 - Front Panel
Two LEDs indicating the board status:
● Run (green)
– on = at least 1 B channel busy
– off = normal operation
● Fail (red) = error encountered
V.24 interface (9-pin Sub-D plug)
Two Ethernet (10/100BaseT) LAN connectors (8-pin RJ45 jacks):
● LAN2 (only released for service applications)
● LAN1
The LAN interface status is indicated by two LEDs:
● LED1:
– Green = 100 Mbps online (link)
– Yellow = 10 Mbps online (link)
– Flashing = active
● LED2 (green):
– On = full-duplex (FDX)
– Off = half-duplex
