boards.fm
P31003-H3550-S403-4-7620, 02/05
HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
3-267
Boards for HiPath 3000
Peripheral Boards
TMCAS in HiPath 3550
TMCAS can be used only in slot 10 of the wall housing.
Page 3-268 has information on the assignments for the two C39195-A9700-B512, -B514 TM-
CAS cables.

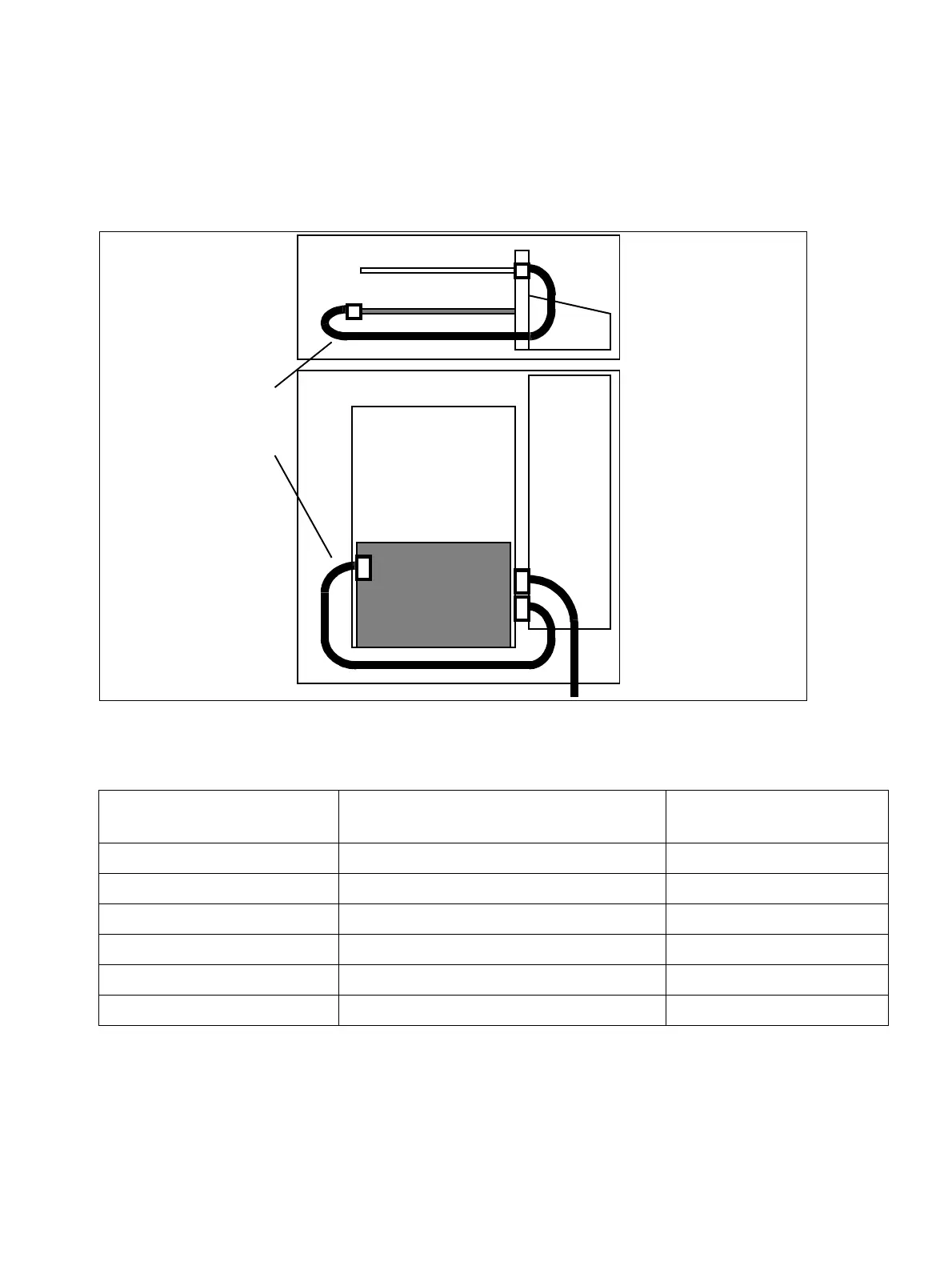

Figure 3-110 TMCAS in HiPath 3550
Table 3-124 Assignment of the TS2-TMCAS Connection Cable C39195-A9700-B511
TS2
Wieland terminal X2, pin
Function TMCAS
SU connector X9, pin
1, 2, 3 – –
4 +5 V for board detection 33
5 a-wire (T), receive 6
6 b-wire (R), receive 26
7 a-wire (T), transmit 2
8 b-wire (R), transmit 22
TS2
TMCAS
X2
X8, X9
TMCAS
TS2
X2
X8
X9
PSU/
UPS
TMCAS cable:
C39195-A9700-
B512/-B514, length
= 10 m
Connection Cable
TS2-TMCAS:
C39195-A9700-
B511, length =
0.57 m
