Boards for HiPath 3000
Options
PFT1 and PFT4 board assignment

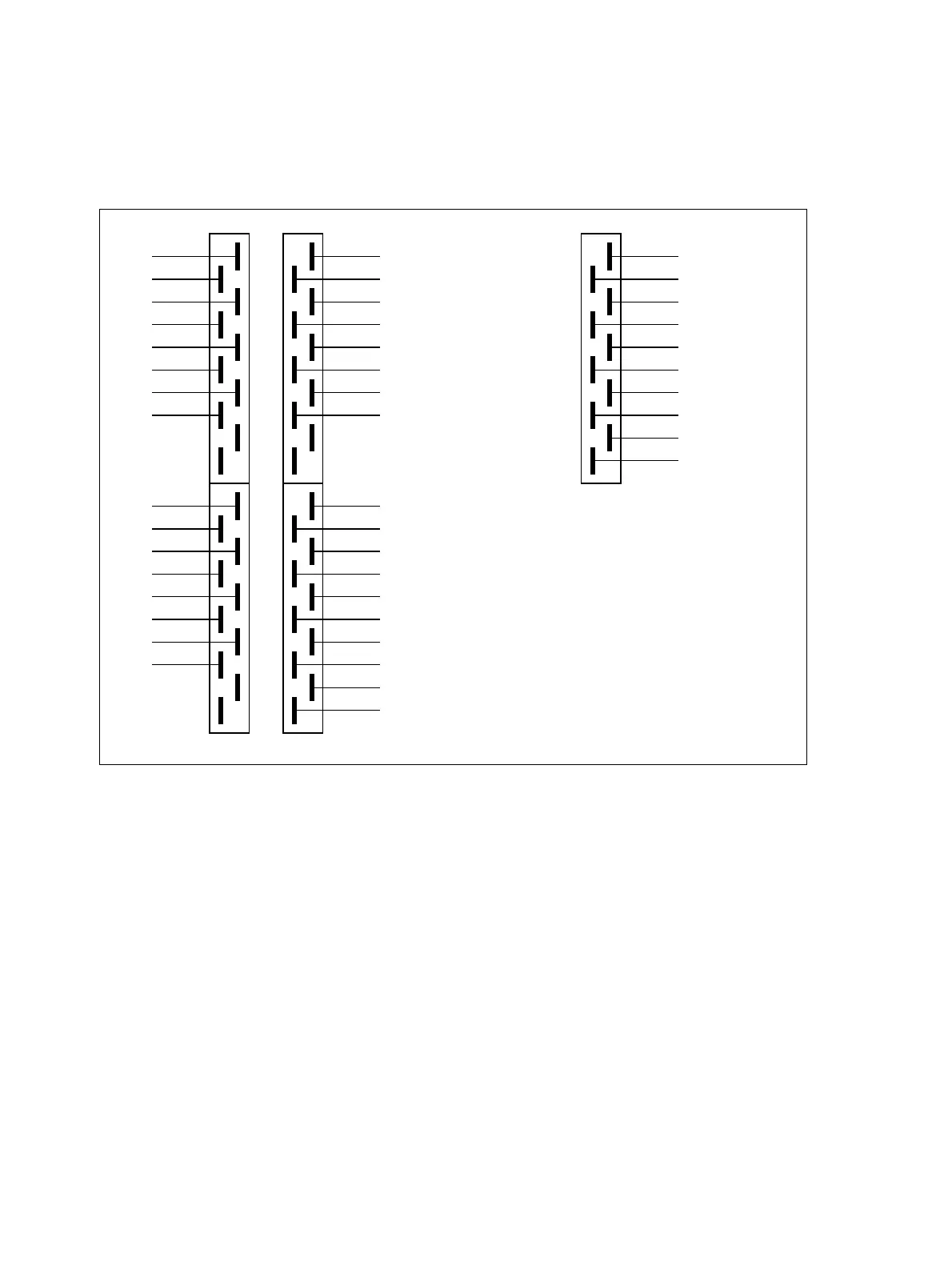

Figure 3-154 PFT1 (S30777-Q539-X) and PFT4 (S30777-Q540-X) Board Assignment
X3 X4
X1 X2
10
1
10
SMB
A
SLA
SLB
SMA
TMB
TMA
B
1
10
SMB
A
SLA
SLB
SMA
TMB
TMA
B
1
SMB
A
SLA
SLB
SMA
TMB
TMA
B
10
1
SMB
A
SLA
SLB
SMA
TMB
TMA
B
PFT
- 48
X1
10
1
SMB
A
SLA
SLB
SMA
TMB
TMA
B
PFT
- 48
TMA, TMB = Trunk circuit
A, B = a, b (Telephone company)
SMA, SMB = SLA board
SLA, SLB = Analog telephone
PFT1
PFT4
