HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
4-17
Installing HiPath 3000
Installing HiPath 3800
Grounding option 1a
Grounding option 1b

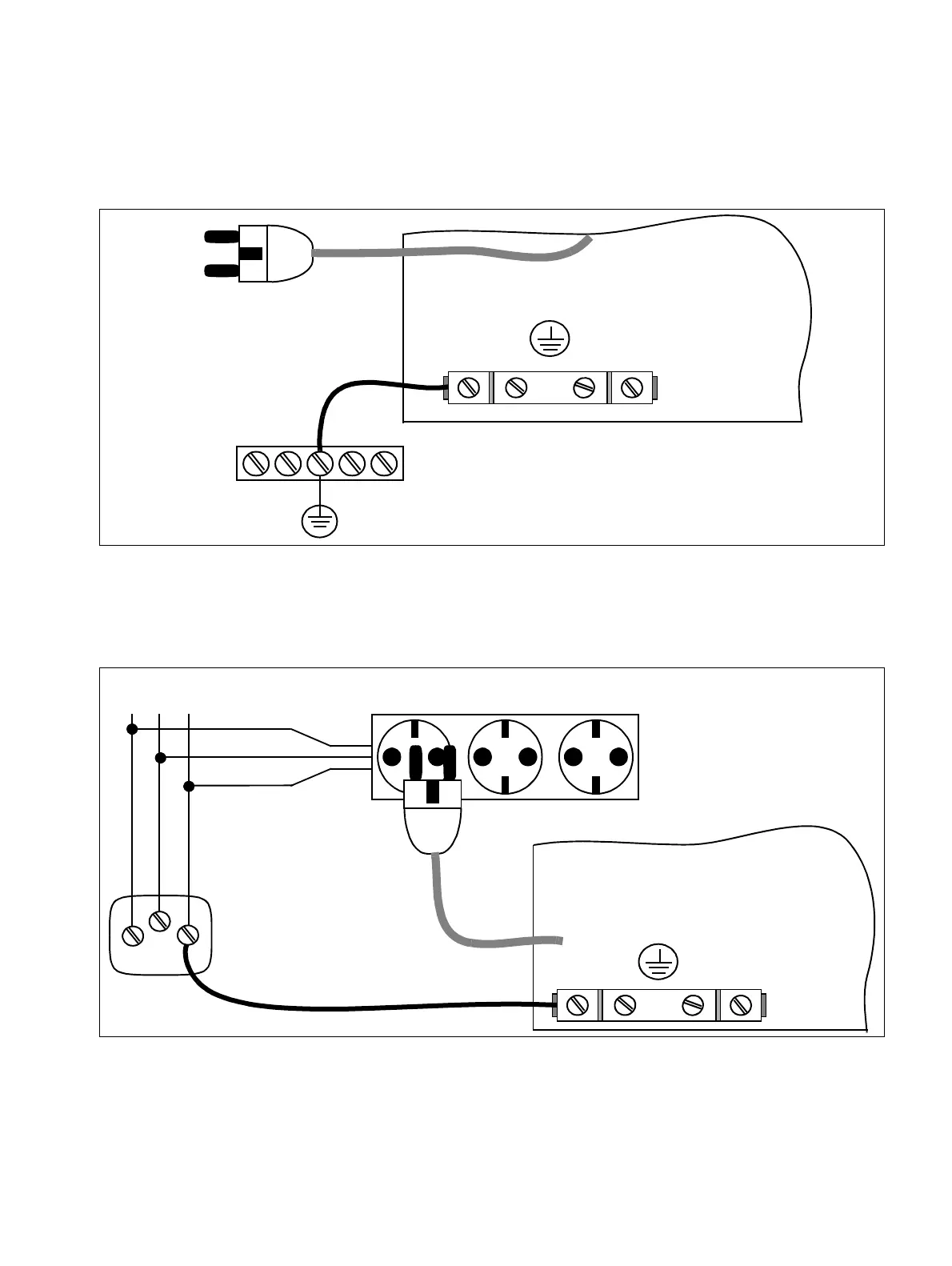

Figure 4-6 HiPath 3800 - Grounding Option 1a (not for USA)
Figure 4-7 HiPath 3800 - Grounding Option 1b (not for USA)
green/yellow
Example Potential equalization bus
HiPath 3800
Main grounding terminal
HiPath 3800
L1 N PE
230 V ~
green/yellow
Example Connector
socket
Grounding outlets
Main grounding
terminal
