Installing HiPath 3000
Installing HiPath 3750, HiPath 3700
Grounding the system cabinets and main distribution frame

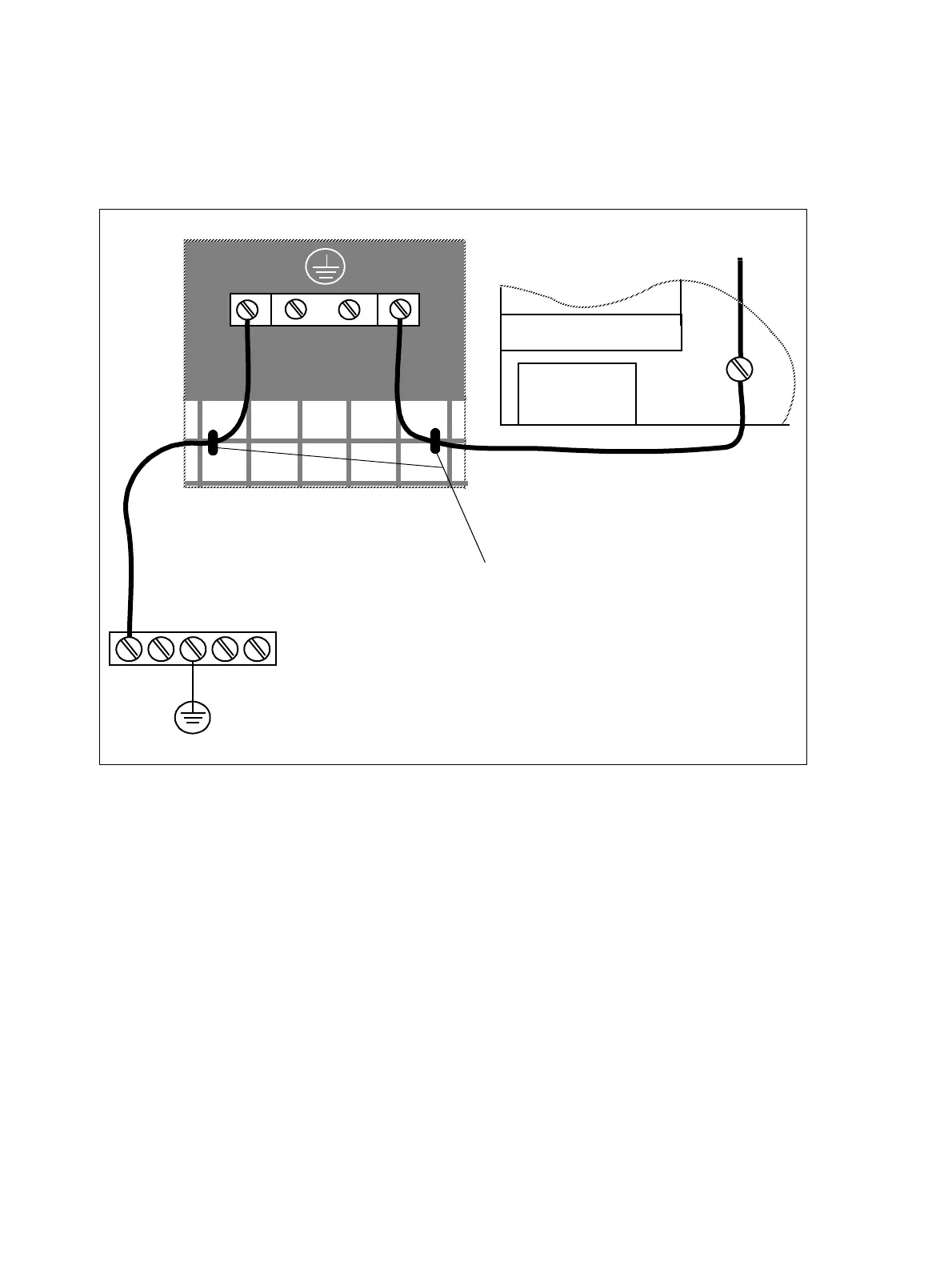

Figure 4-59 HiPath 3750 - Grounding the System Cabinets and Main Distribution Frame
(not for U.S.)
to the second and third MDFU (if
present)
Example Potential equalization bus
but not:
- central heating system
- drain channels
- ground conductor for antenna system
HiPath 3750, BC
Grounding screw (metal back-
plane, lower center)
MDFU, MDFU-E
Any color, except for green or
yellow to avoid confusion
Min. cross-section = 2.5 mm
2
green/yellow
Min. cross-section = 2.5 mm
2
Attach to the grill using cable ties
