Installing HiPath 3000
Installing HiPath 3750, HiPath 3700
Grounding the system cabinets and patch panels

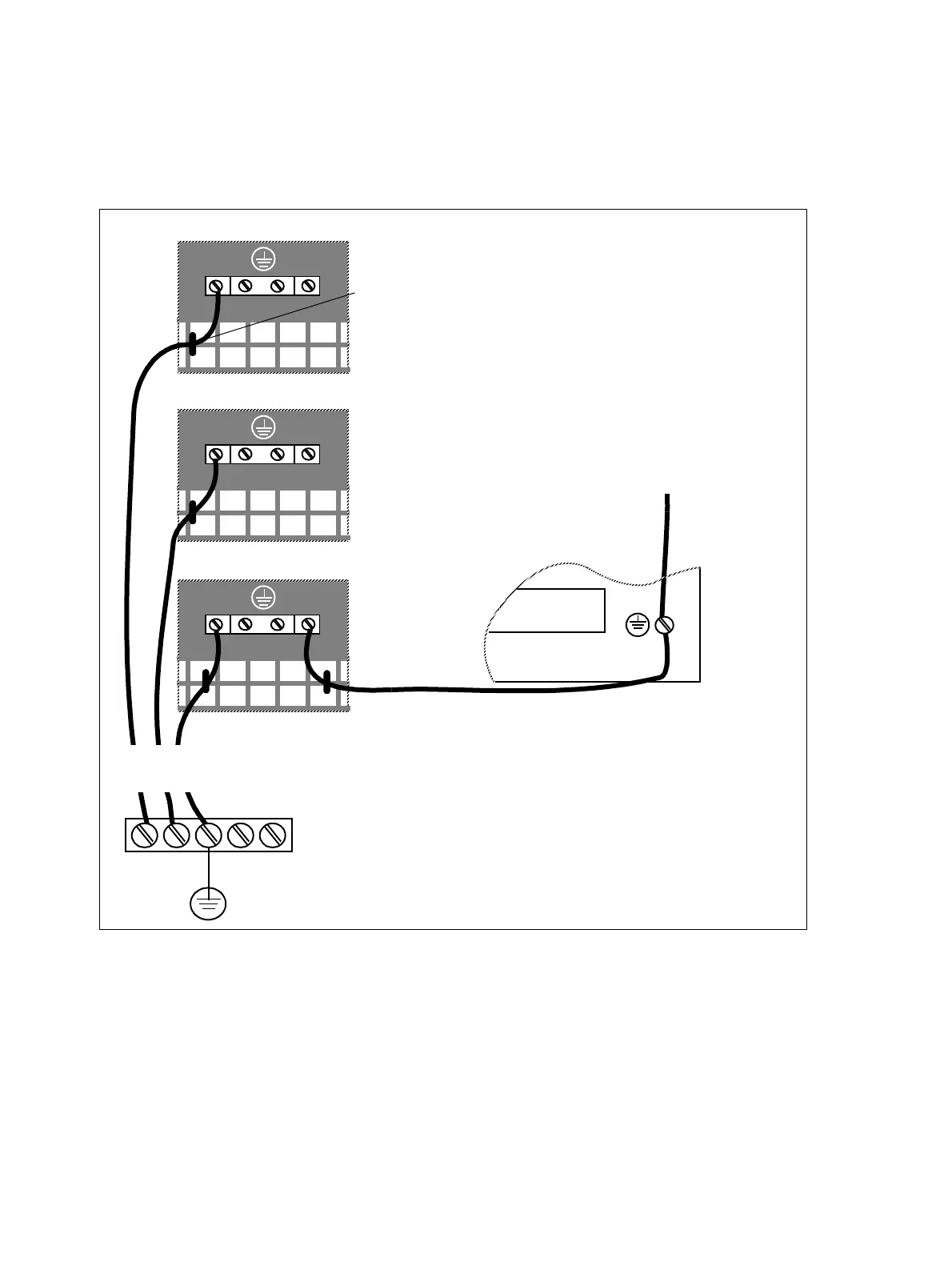

Figure 4-75 HiPath 3700- Grounding the Systems and Patch Panels in a 19-Inch Cabinet
To other patch panels S30807-
K6143-X (if present)
(A ground conductor is not re-
quired for the S
0
patch panel
S30807-K6143-X.)
Potential equalization bus,
in 19" cabinet for example
HiPath 3700, BC
Patch Panel
S30807-K6143-X
Any color, except for green or
yellow to avoid confusion
Min. cross-section = 2.5 mm
2
HiPath 3700, EC1 (if present)
HiPath 3700, EC2 (if present)
Attach to the grill
using cable ties
green/yellow
Min. cross-section = 2.5 mm
2
To Next Page
