Installing HiPath 3550, HiPath 3350, HiPath 3500, and HiPath 3300

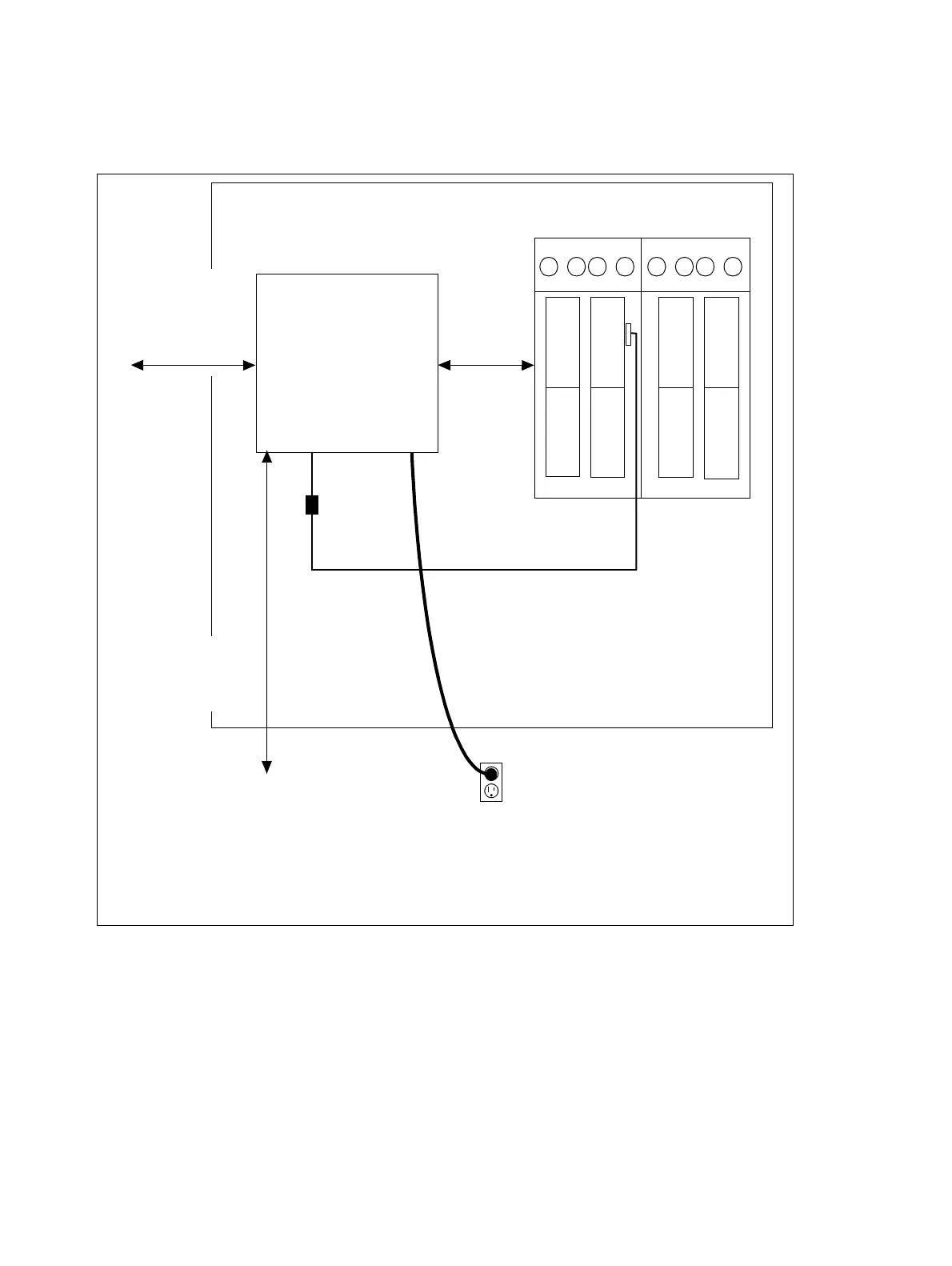

Figure 4-93 HiPath 3550 and HiPath 3350 - Space Requirements (for U.S. only)
HiPath 3550
or
HiPath 3350
The system measures 18 by 17.7 inches (46 x 45 cm). The following spaces
should be allowed: 18 in. (46 mm) of clearance on the left, and at least 8 in. (203
mm) of clearance on the top and right. Allow 20 in. (50.8 cm) of clearance on the
bottom (for cables).
Backplane
122 X 122 cm (4 X 4 ft.)
Main distribution frame
20.3 cm
(8’’)
Leave 46 cm
(18’’) free
50.8 cm
(20’’)
