Siemens HiPath 3000 Service Manual

inst_h3.fm
P31003-H3550-S403-4-7620, 02/05
HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
4-169
Installing HiPath 3000
Installing HiPath 3550, HiPath 3350, HiPath 3500, and HiPath 3300
Procedure for mounting the MDFU on the wall
Layout and dimensions of the MDFU
Step Activity
1. Use the template to drill the holes.
2. Insert the wall anchors and screw in the screws, leaving 5 mm projecting.
3. Remove the housing cover and mount the MDFU-E on the brackets.
4. Tighten the screws through the holes.

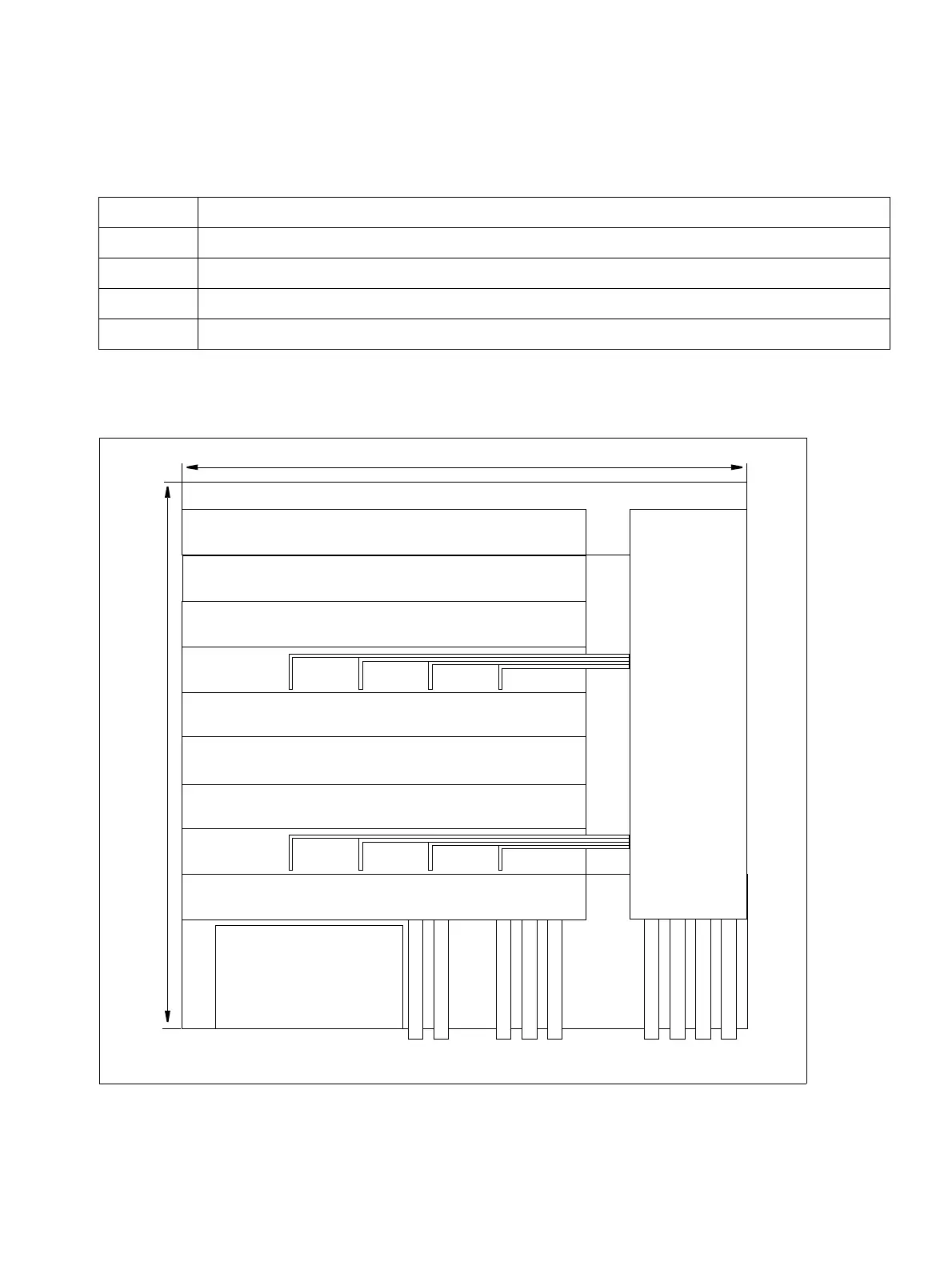

Figure 4-94 MDFU - Layout and Dimensions (367.0 x 328.8 x 125.4 mm) (not for U.S.)
2 x PFT1
or
1 x PFT4
9 slots (9 x 30 mm)
Special built-in comps.
System side Line network
328.8
367.0
1
2
3
6
4
5
Jumpering
Channel
9
7
8
