HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
9-17
Expanding and Upgrading HiPath 3000
Expanding HiPath 3000
9. Connect the batteries: To do this, slide the eight cable connector lugs [D] carefully
onto the two connection contacts on each of the four batteries.
10. Replace the ECR’s housing cover and secure the three mounting screws at the
rear.
11. Connect all of the ECR’s power and connection cables.
12. Insert the battery fuse (ECR front panel) (see Section 9.2.4.1).
13. Set the switches for battery voltage and line voltage on the ECR’s front panel to
"On" (see Section 9.2.4.1).
Step Activity

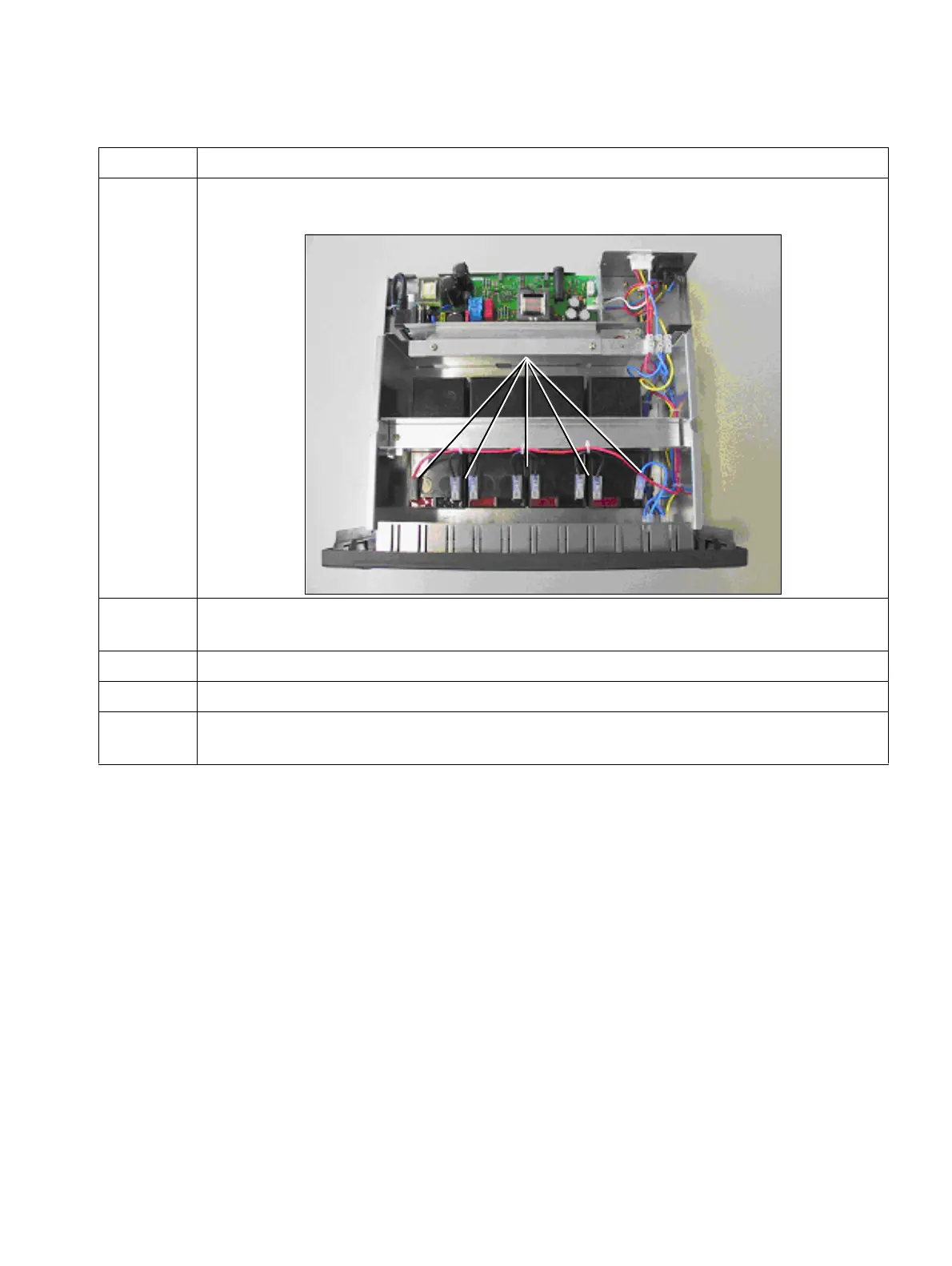

[D]
