Siemens HiPath 3000 Service Manual

exup.fm
P31003-H3550-S403-4-7620, 02/05
HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
9-19
Expanding and Upgrading HiPath 3000
Expanding HiPath 3000

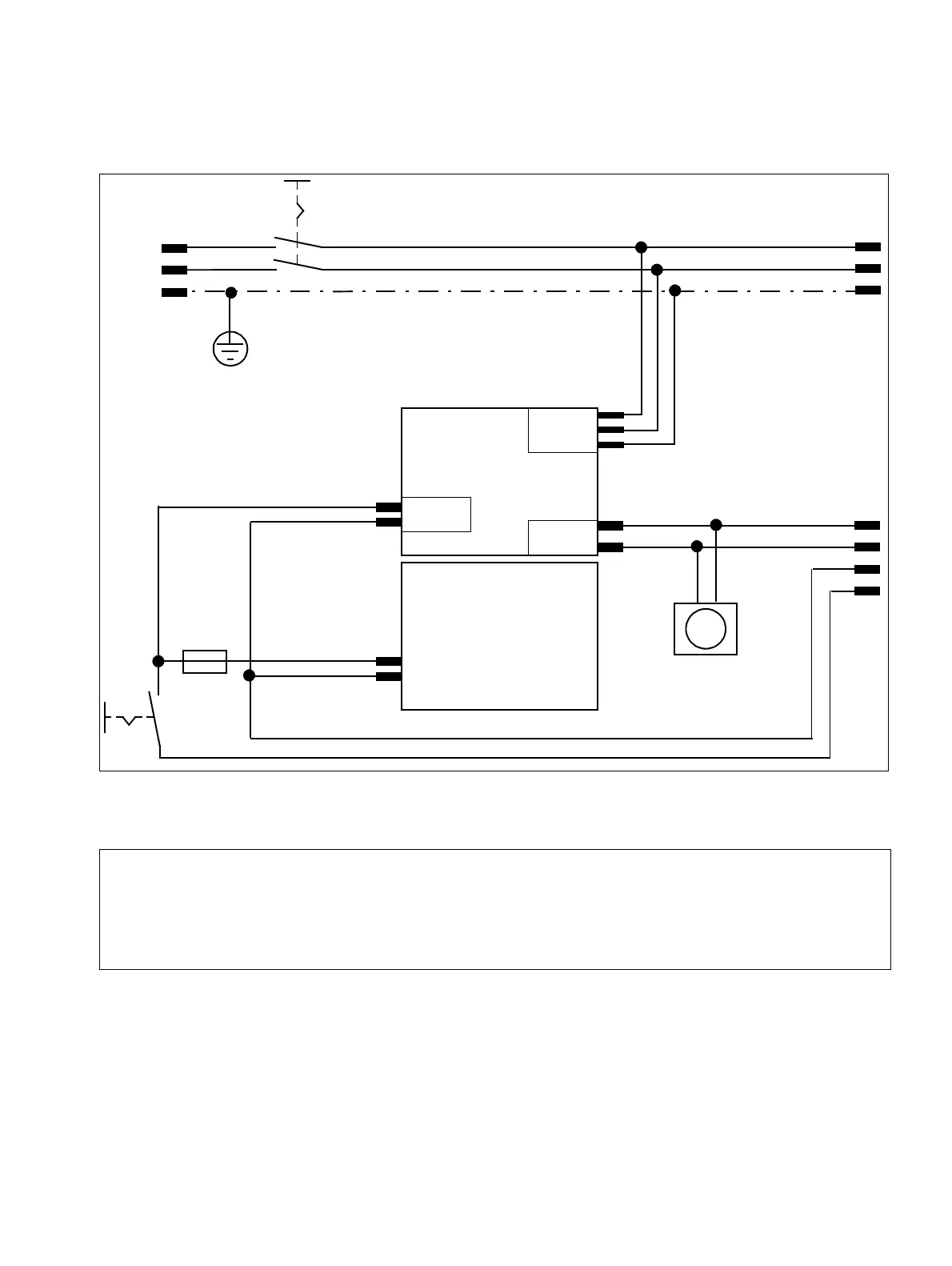

Figure 9-6 HiPath 3500, HiPath 3300 - ECR With Batteries and EPSU2-R
7
Caution
When storing an ECR equipped with batteries or if the ECR is inactive for a long pe-
riod of time, remove the battery fuse (6.3 A/T) in the front panel of the ECR.
When shipping an ECR with built-in batteries, the batteries must be removed before-
hand.
PE
4 batteries
12 V/7 Ah
–48 V BatB
+48 V
S1
S2
F1
T6.3 A
Housing
X2
L1 1
N2
PE 3
X1
1L1
2N
3PE
X3
3
4
+48 V 1
–48 V UP 2
EPSU2-R
–48 V BatE
+48 V
Fan
(not available with all
systems)
–48 V CD
+48 V
Out
Input
Batt
