boards.fm
P31003-H3550-S403-4-7620, 02/05
HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
3-33
Boards for HiPath 3000
Central Boards

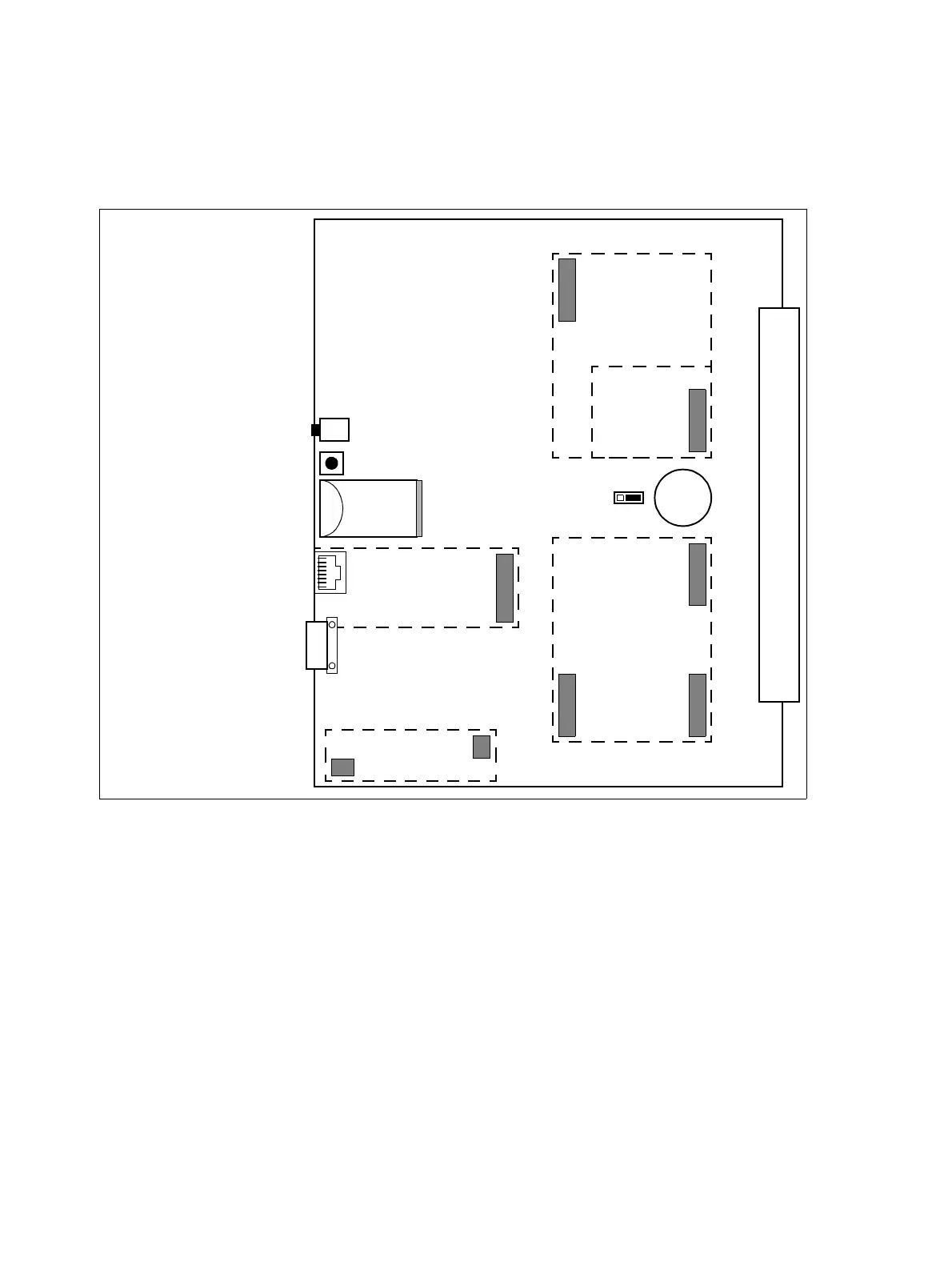

Diagram of the CBCPR board
Figure 3-3 CBCPR Board (S30810-Q2936-X)
1
X13
CMA
X14
CMS
X17
IMODN
X16
X15
X20
1
1
X19
MPPI
X12
1
X18
LIM
MMC
RUN LED
Reset/reload
switch
LAN connector,
8-pin RJ45
jack
V.24 interface,
9-pin SUB-D
plug (service PC or
application)
1
1
1
1
X27
Batt.
