5. PARAMETERS
5 - 27
No./
symbol/name
Setting
digit
Function
Initial
value
[unit]
Network
ECT
EIP
PNT
PA14
*POL
Rotation
direction
selection
Select a rotation direction.
You can enable or disable the following settings for the torque mode depending on
the setting value of [Pr. PC29 POL reflection selection at torque mode].
At position mode/velocity mode
0
Setting
value
Servo motor rotation direction
Position mode
Positioning address
increase/
Velocity mode
Speed command:
Positive
Position mode
Positioning address
decrease/
Velocity mode
Speed command:
Negative
0
CCW or positive
direction
CW or negative direction
1
CW or negative direction
CCW or positive
direction
At torque mode
Setting value
Servo motor rotation direction
[Pr. PA14]
[Pr. PC29]
Torque mode
Torque command:
Positive
Torque mode
Torque command:
Negative
0
0 _ _ _:
Enabled
CCW or positive
direction
CW or negative
direction
1 _ _ _:
Disabled
CCW or positive
direction
CW or negative
direction
1
0 _ _ _:
Enabled
CW or negative
direction
CCW or positive
direction
1 _ _ _:
Disabled
CCW or positive
direction
CW or negative
direction

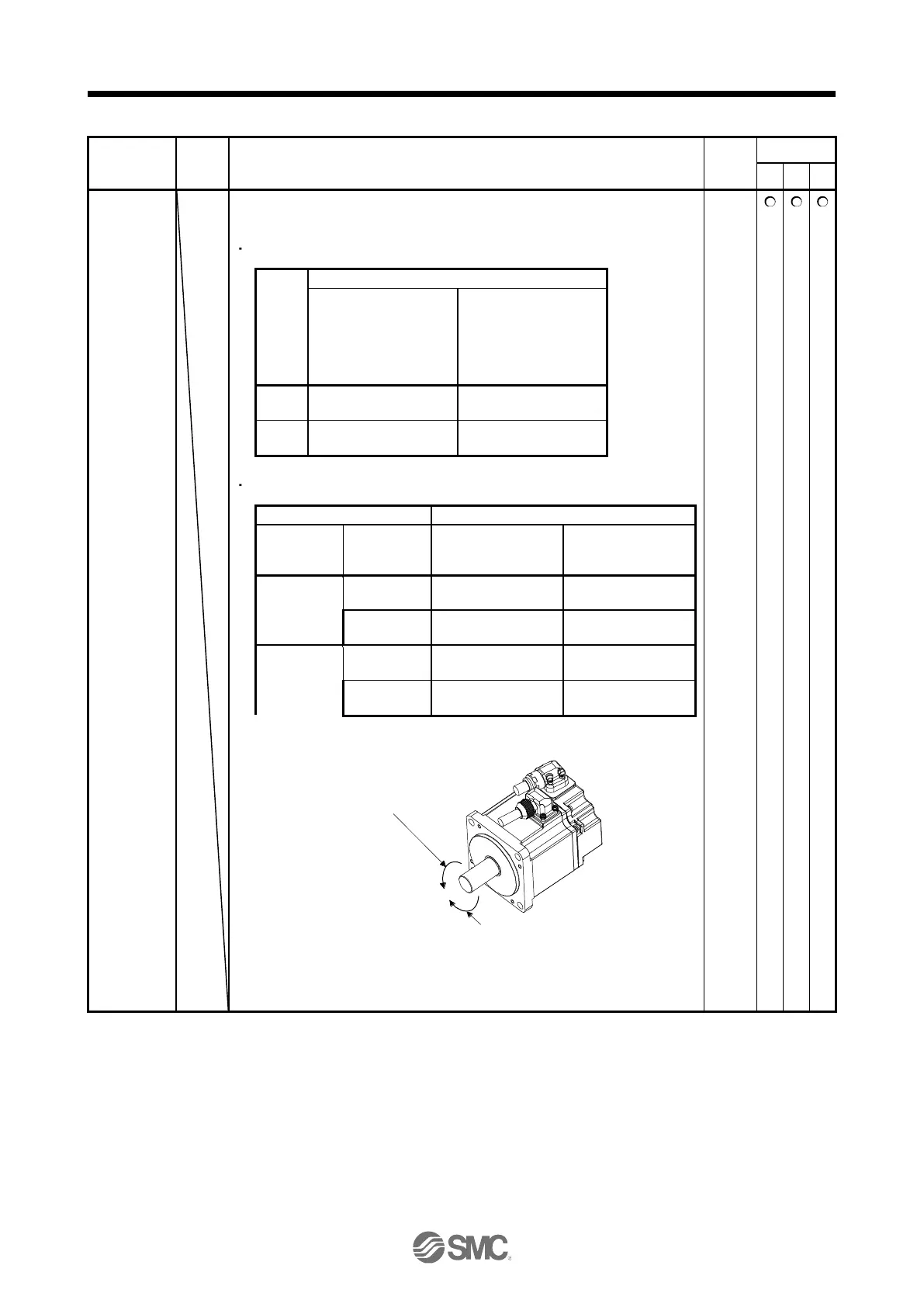

The following shows the servo motor rotation directions.
Forw ard rotation (CCW)
Reverse rotation (CW)
The positive/negative directions of the linear servo motor are as follows.
Setting range: 0, 1
