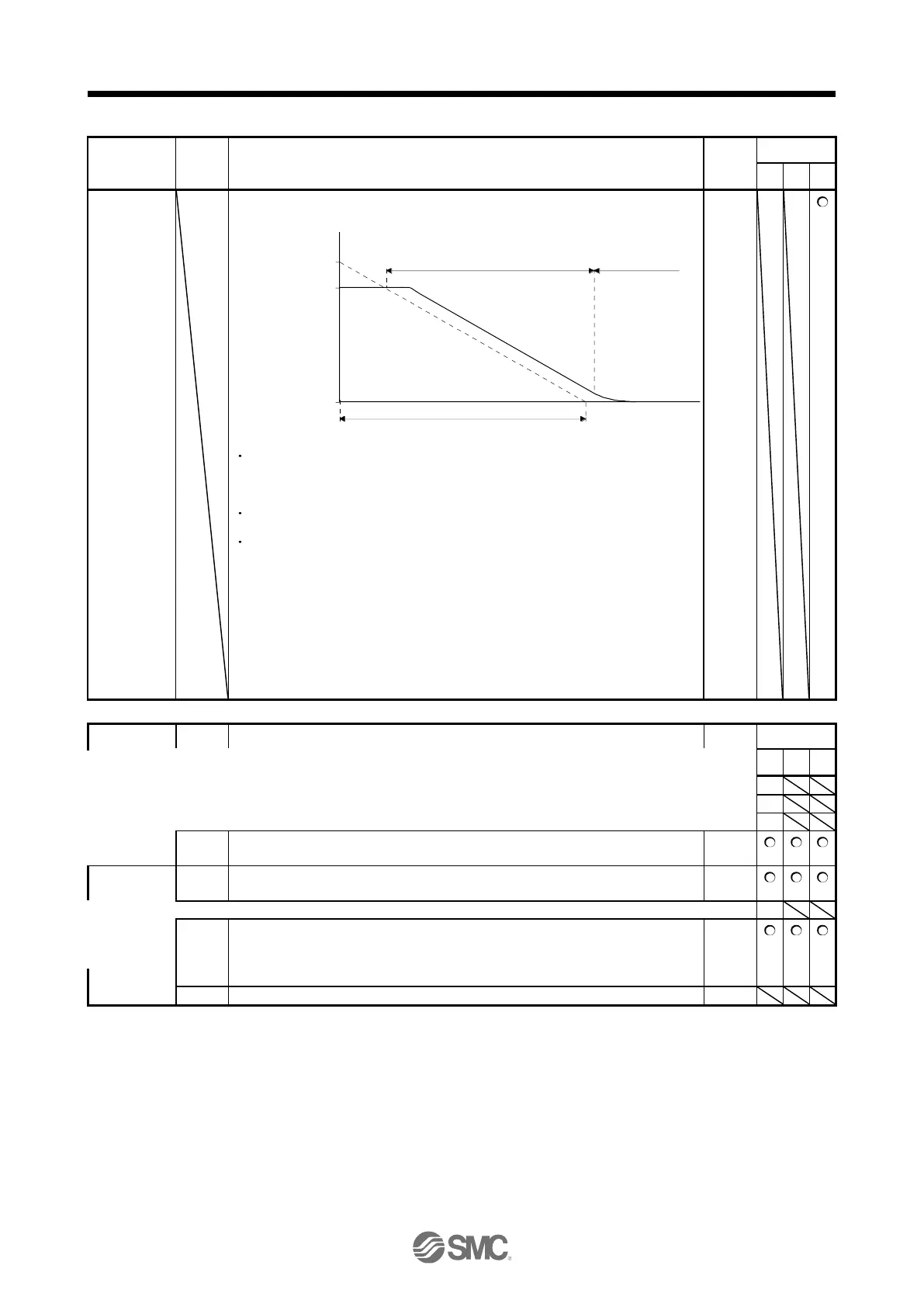

5. PARAMETERS
5 - 51
No./
symbol/name
Setting
digit
Function
Initial
value
[unit]
Network
ECT
EIP
PNT
PC24
RSBR
Forced stop
deceleration
time constant
Set a deceleration time constant for the forced stop deceleration function.
Set the time taken from the rated speed to 0 r/min. Setting "0" will apply 100 ms.
Forced stop deceleration
[Pr. PC24]
0 r/min
(0 mm/s)
Servo motor speed
Rated speed
Dynamic brake
deceleration
[Precautions]
If the servo motor torque or linear servo mot is saturated at the
maximum value during forced stop deceleration because the
set time is too short, the time to stop the servo motor will be
longer than the set time constant.
[AL. 50 Overload 1] or [AL. 51 Overload 2] may occur during
forced stop deceleration, depending on the set value.
After an alarm that leads to a forced stop deceleration, if an
alarm that does not lead to a forced stop deceleration occurs
or if the control circuit power supply is cut, dynamic braking will
start regardless of the deceleration time constant setting.
This parameter corresponds to "Quick stop deceleration (PNU: 24709, Sub: 0)".
When this parameter is mapped for the Process Data communication, the value
written with Setup software (MR Configurator2
TM
) is overwritten with the upper side.
Thus, do not write a value with Setup software (MR Configurator2
TM
).
Setting range: 0 to 20000
100
[ms]
No./
symbol/name
Setting
digit
Function
Initial
value
[unit]
Network
ECT
EIP
PNT
PC26
**COP8
Function
selection C-8
_ _ _ x
For manufacturer setting
0h
_ _ x _
0h
_ x _ _
0h
x _ _ _
Load-side encoder cable communication method selection
Do not change this value.
0h
PC27
**COP9
Function
selection C-9
_ _ _ x
Encoder pulse count polarity selection
Do not change this value.
0h
_ _ x _
For manufacturer setting
0h
_ x _ _
Selection of A/B/Z-phase input interface encoder Z-phase connection judgment
function
Do not change this value.r.
0h
x _ _ _
For manufacturer setting
0h
