Control Panel (3610)

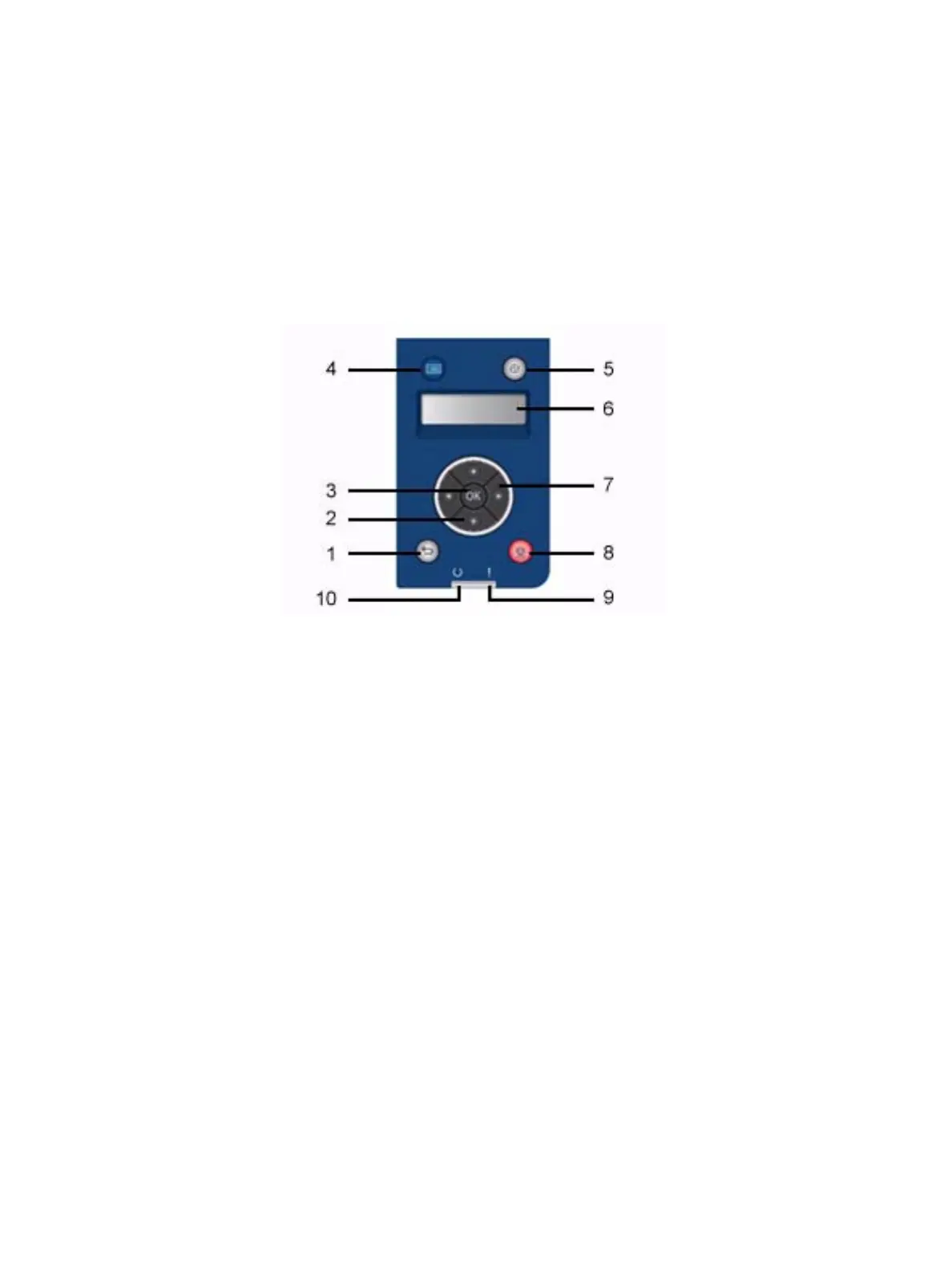

The Control Panel consists of a display, indicator lights, and buttons to control available functions.
The Control Panel:
• Displays the current operating status of the printer.
• Provides access to print features, reference materials, and admin and maintenance menus.
• Prompts you to load paper, replace supplies, and clear jams.
• Displays errors and warnings.
1 Back/Return: Moves up one level in the menu.
2 Up and Down arrows: Navigates to the next menu, item, or option.
3 OK: Displays the selected menu or selects the current menu option.
4 Menu: Displays the Information Pages, Billing Meters, Admin, Tray Settings, and
Panel Language menus.
5 Power Saver: Enters and exits low-power mode.
6The Control Panel
Display
provides information about settings, statuses, and error messages.
An asterisk (*) next to a menu option indicates the current default setting.
7 Left and Right arrows: Moves forward and backward through submenus or number fields. To
display the Walk-up Features menu and to list Secure Jobs and Saved Jobs,
press the Left arrow button.
8 Cancel: Ends the active print job
9 Error Indicator – Lights red to indicate an error condition or warning that requires
your attention.
– Blinks red when an error occurs that requires technical support.
10 Ready Indicator – Lights green when the printer is ready to receive data.
– Blinks green when the printer is busy receiving data.
