Xerox WorkCentre 3615

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-116
REP 6.3 DADF Hinges
PL 6.1 IIT Scanner / DADF
Removal
1. Remove (REP 6.2 DADF).
2. Remove the DADF Hinges. (Figure 1)
a. Turn the DADF over.
b. Remove 4 screw (silver, tapping, 8mm) to remove the Right Hinge
c. Remove 5 screws (silver, tapping, 8mm) to remove the Left Hinge.

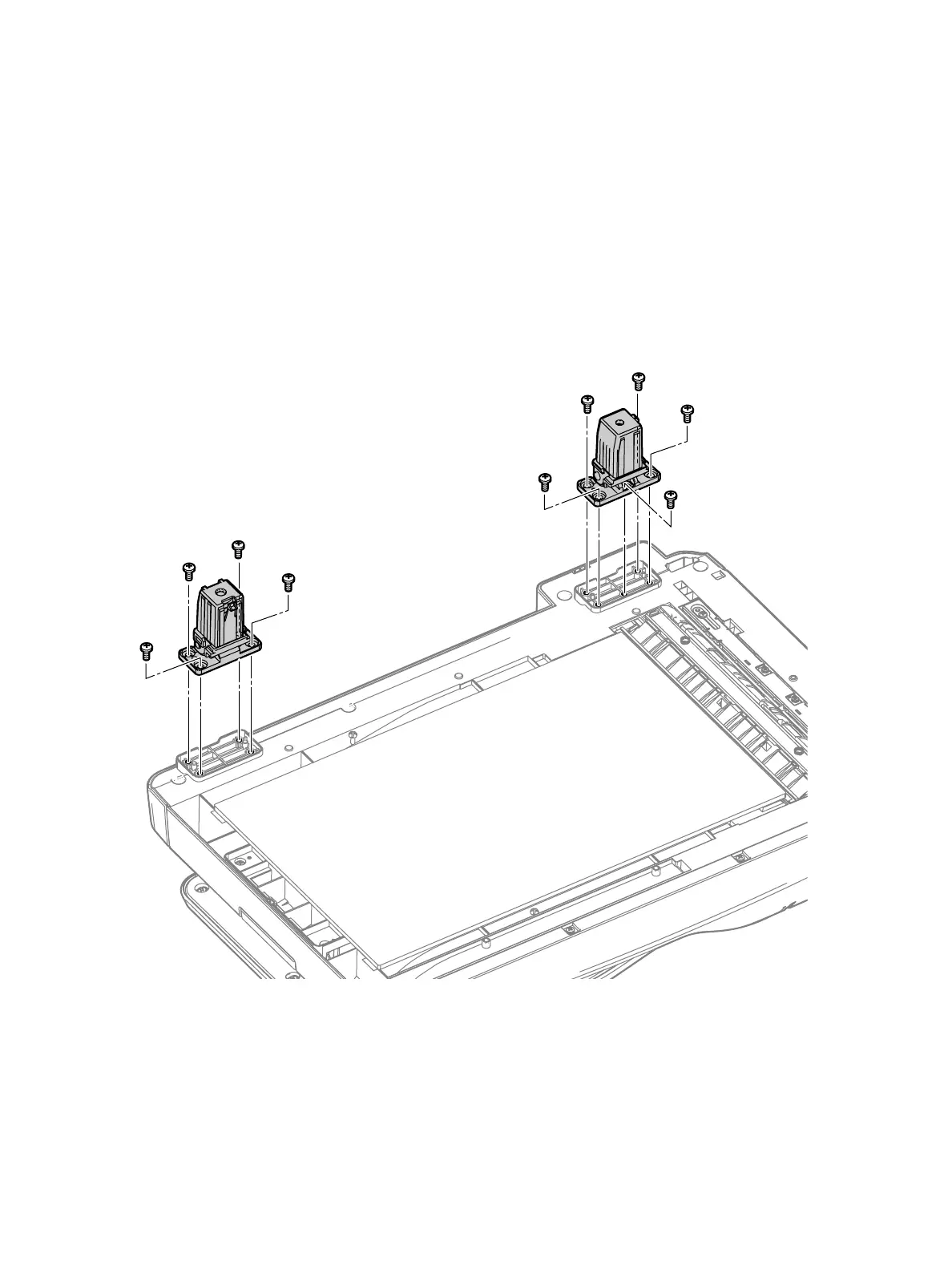

Figure 1
Replacement
1. Replace in reverse order.
s3610-10
7
b)
c)
a)
