Xerox WorkCentre 3615

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-134
REP 7.13 Pre-Registration Sensor
PL 7.4 Tray 1/Optional Tray 550-Sheet Feeder (4/4)
Removal
1. Remove the Tray from the 550-Sheet Feeder.
2. Remove (REP 7.1 550-Sheet Feeder).
3. Remove the Pre-Registration Sensor. (Figure 1)
a. Remove 2 screws (silver, tapping, 8mm).
b. Disconnect P/J 4212.
c. Release 3 clips to remove the sensor.

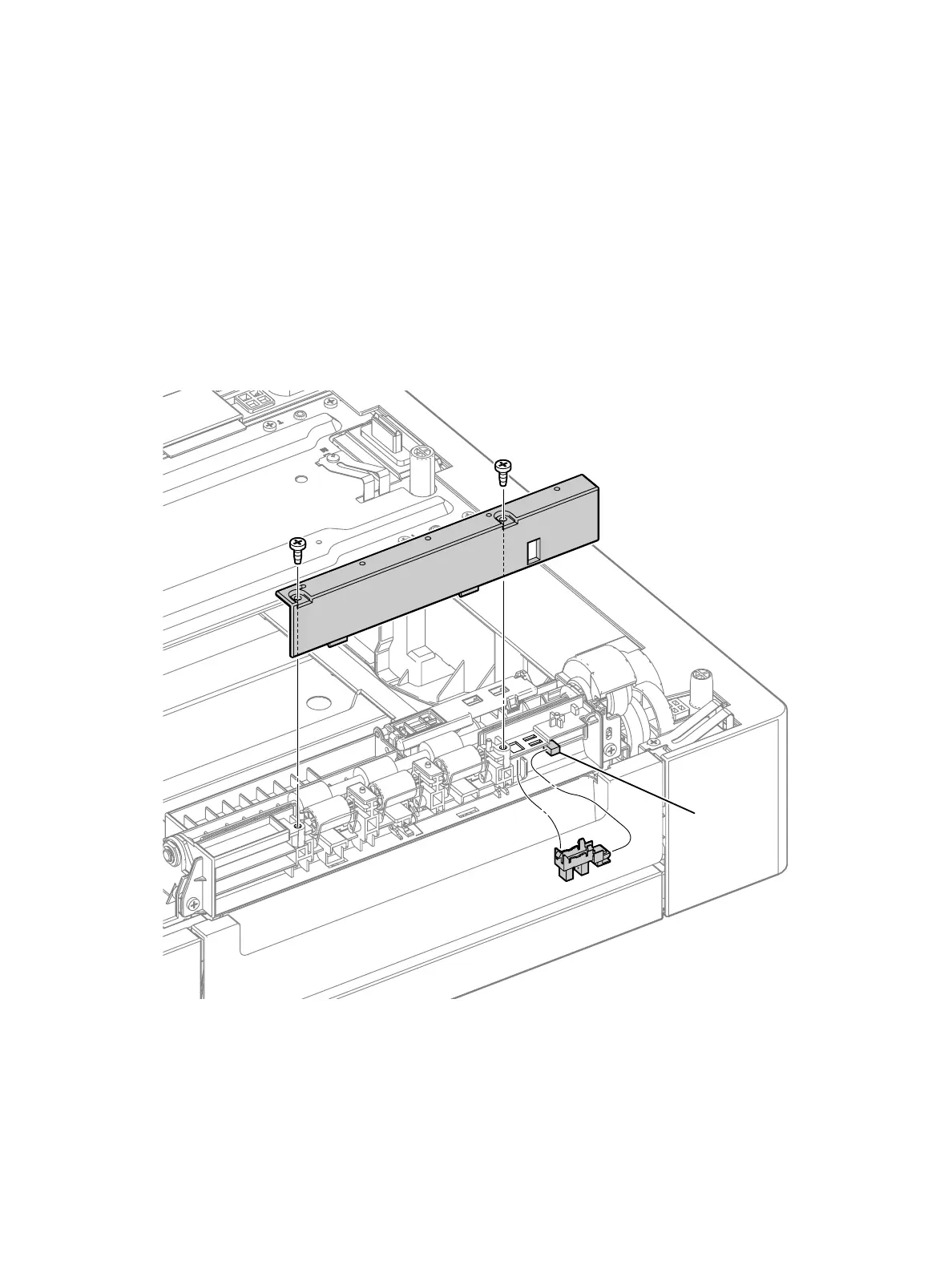

Figure 1
Replacement
1. Replace in reverse order.
P/J4212
b)
c)
a)
