Xerox WorkCentre 3615 Service Manual

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-16
REP 1.7 Left Side Cover (3610)
PL 1.1 Covers (3610)
Removal
WARNING: Allow the Fusing Assembly to cool before servicing the product.
1. Remove (REP 1.4 Top Cover Assembly (3610)).
2. Release the thumb screw to remove the ESS PWB Cover from the left side of the machine.

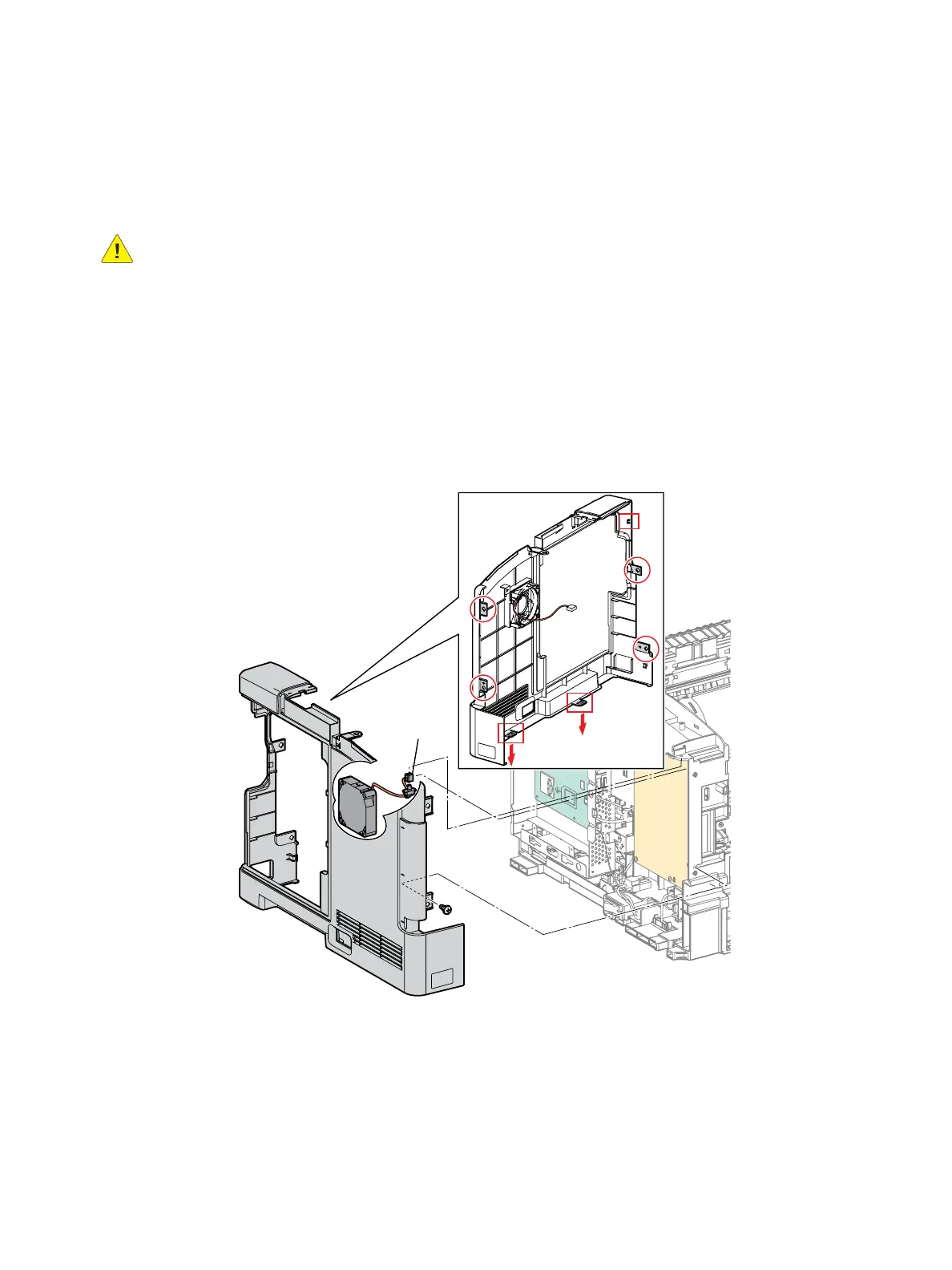

3. Remove the Left Side Cover. (Figure 1)
a. Remove 1 screw (silver, tapping, 8mm).
b. Release 4 bosses.
c. Release 3 clips that secure the cover to the chassis.
d. Release the fan cable tie, disconnect P/J241 from the LVPS.
e. Remove the cover.
Figure 1
Replacement
1. Connect P/J 241 and re-install the cable tie.
2. Secure the clips on the bottom of the cover first, before engaging the remaining clips and bosses.
3. Replace in reverse order.
s3610-010
P/J241
a)
c)
d)
e)
b)

Xerox WorkCentre 3615 Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 1200 dpi
Fax	Yes
Duplex Printing	Yes
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory (Standard)	256 MB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Print Speed	47 ppm
Scan Resolution	600 x 600 dpi
Automatic Document Feeder	50 sheets
Connectivity	Ethernet
First Page Out Time (Copy)	8.5 seconds
Paper Capacity	250 sheets
Network Connectivity	Ethernet
Operating System Compatibility	Windows, Mac, Linux
