Xerox WorkCentre 3615

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-90
REP 4.4 Duplex Drive Gear and Holder
PL 4.1 Drive
WARNING: Allow the Fusing Assembly to cool before servicing the product.
1. Open the Rear Cover.

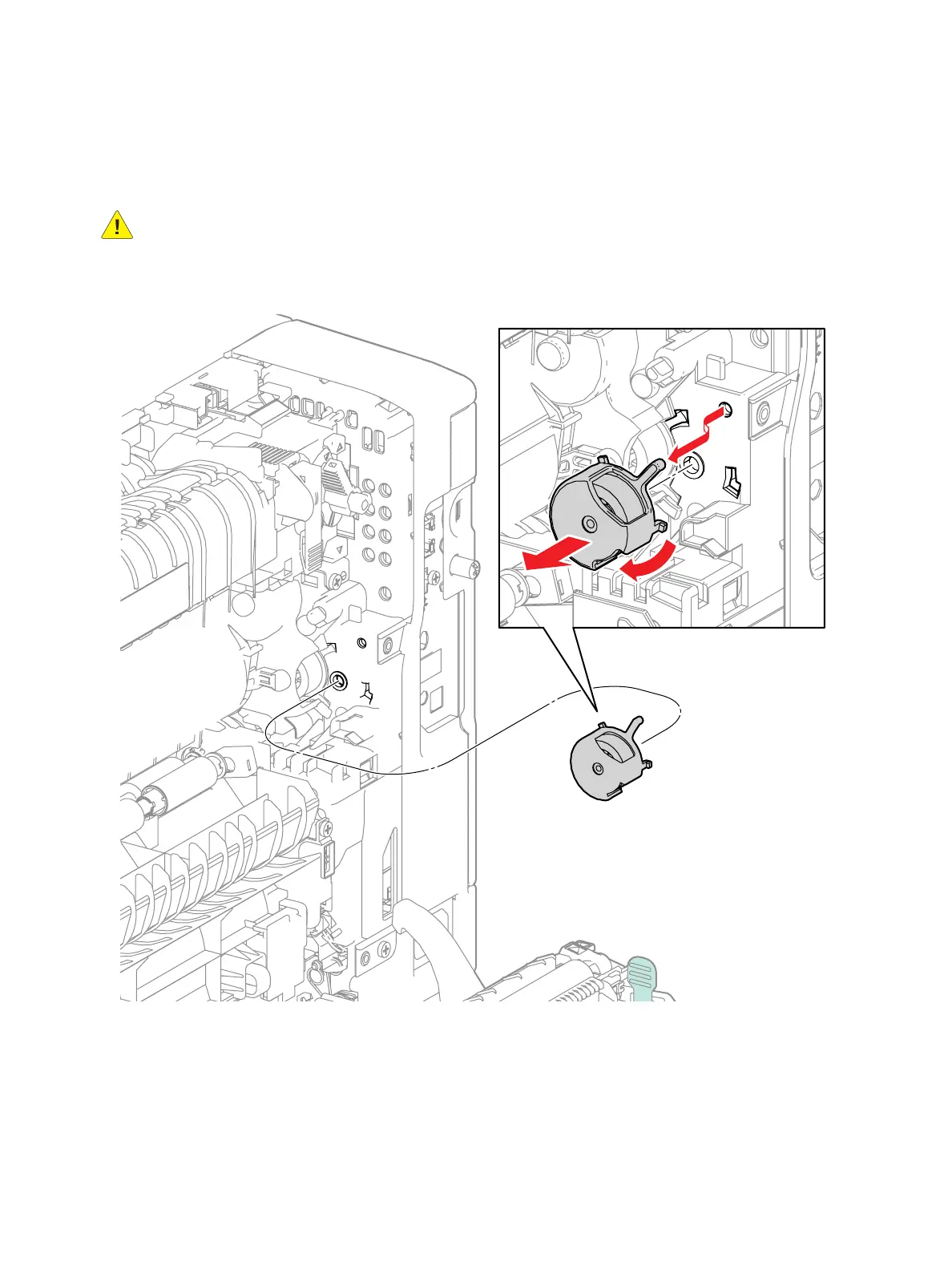

2. Rotate the Gear Holder clockwise while pulling the tab to remove the holder and gear. (Figure 1)
Figure 1
Replacement
1. Replace in reverse order.
s3610-058
