Xerox WorkCentre 3615 Service Manual

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-46
REP 2.4 Tray 1 Feed Rollers
PL 2.2 Transport Assembly
Removal
WARNING: Allow the Fusing Assembly to cool before servicing the product.
1. Remove Tray 1.

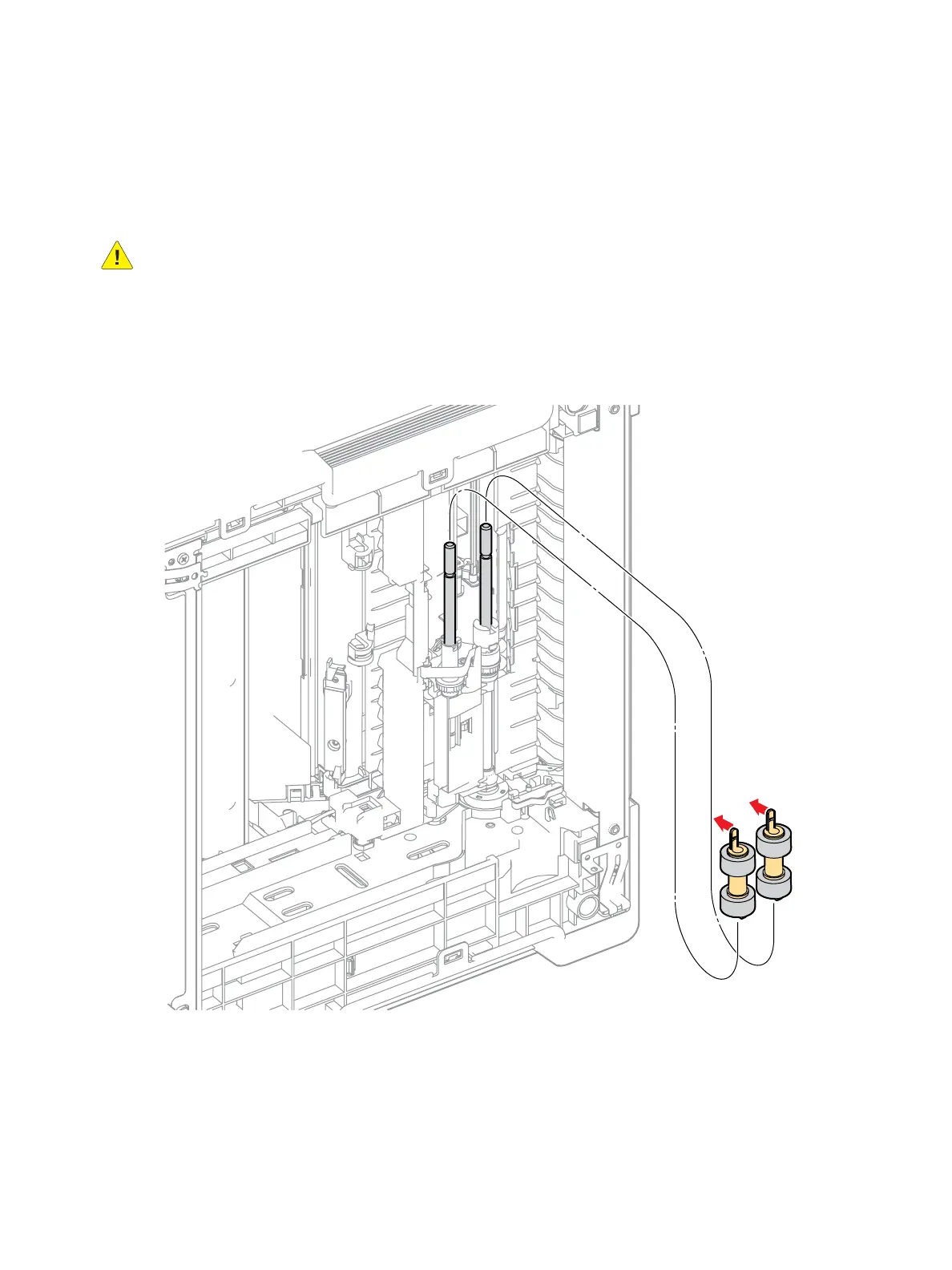

2. Reach into the tray cavity and release the clips that secure the Feed and Nudger Rollers to the
shafts. (Figure 1)
Note: The illustration shows the unit rotated for clarity.
Figure 1
Replacement
1. Make sure the tabs on the bottom of the rollers line up with the notches on the drive assembly and
the rollers are firmly locked into place.
2. Replace in reverse order.
s3610-03
0

Xerox WorkCentre 3615 Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 1200 dpi
Fax	Yes
Duplex Printing	Yes
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory (Standard)	256 MB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Print Speed	47 ppm
Scan Resolution	600 x 600 dpi
Automatic Document Feeder	50 sheets
Connectivity	Ethernet
First Page Out Time (Copy)	8.5 seconds
Paper Capacity	250 sheets
Network Connectivity	Ethernet
Operating System Compatibility	Windows, Mac, Linux
