Xerox WorkCentre 3615

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-125
REP 7.6 Drive Assembly
PL 7.1 Tray 1/Optional Tray 550-Sheet Feeder (1/4)
Removal
1. Remove the Tray from the 550-Sheet Feeder.
2. Remove (REP 7.1 550-Sheet Feeder).
3. Remove (REP 7.2 Left Side Cover).
4. Remove the 2 screws securing the white block (1 and 2).

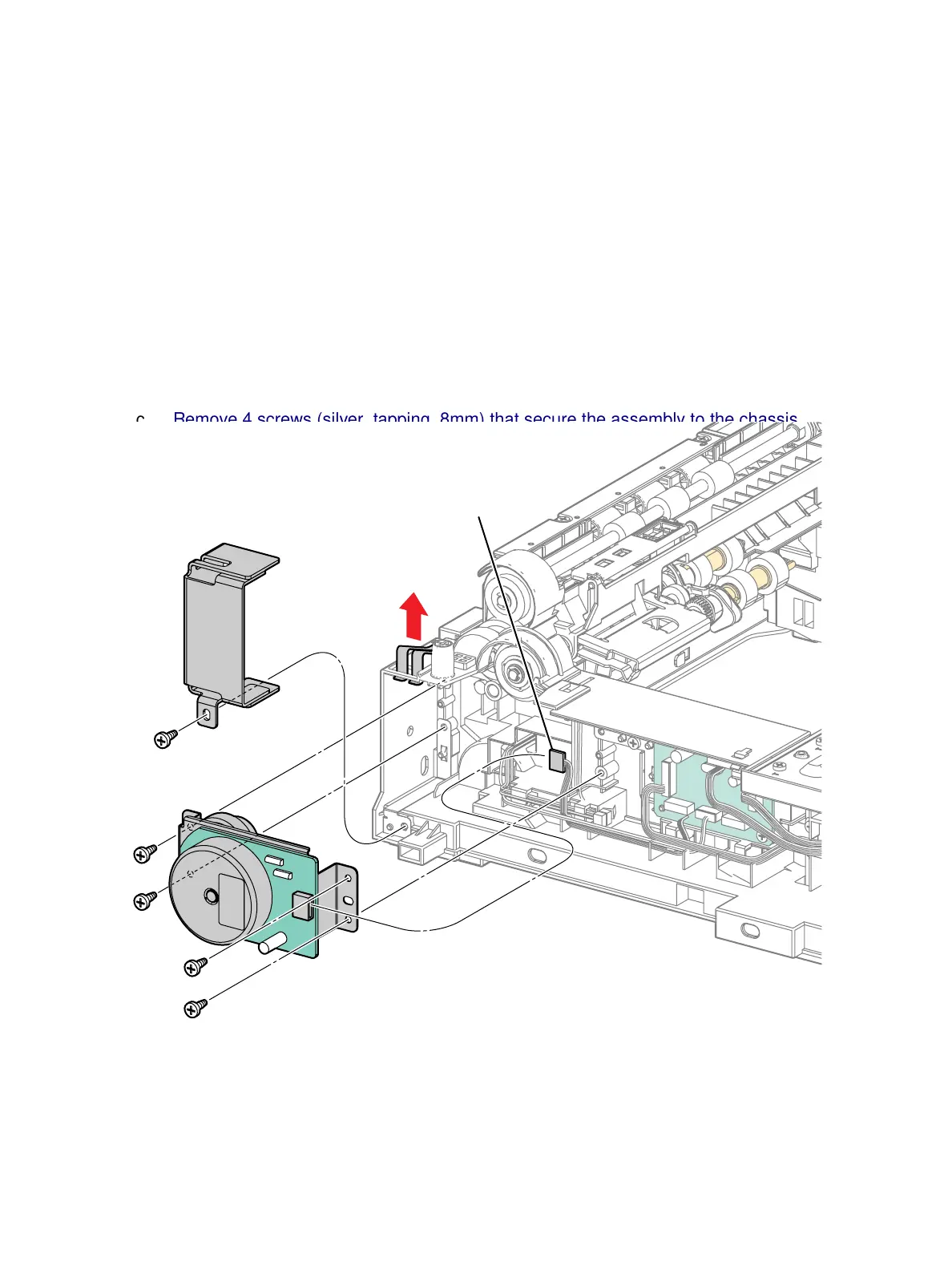

5. Remove the Drive Assembly. (Figure 1)
a. Remove 1 screw (silver, tapping, 8mm) and lift the ground straps to remove the Cover.
b. Disconnect P/J4221 from the motor.
c. Remove 4 screws (silver, tapping, 8mm) that secure the assembly to the chassis.
Figure 1
s3610-114
P/J4221
b)
c)
a)
a)
1)
2)
c. Remove 4 screws (silver, tapping, 8mm) that secure the assembly to the chassis.
