Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-19
REP 1.10 IIT Front Top Cover
PL 1.5 Control Panel (3615)
Removal
1. Remove (REP 1.9 IIT Left Side Cover).

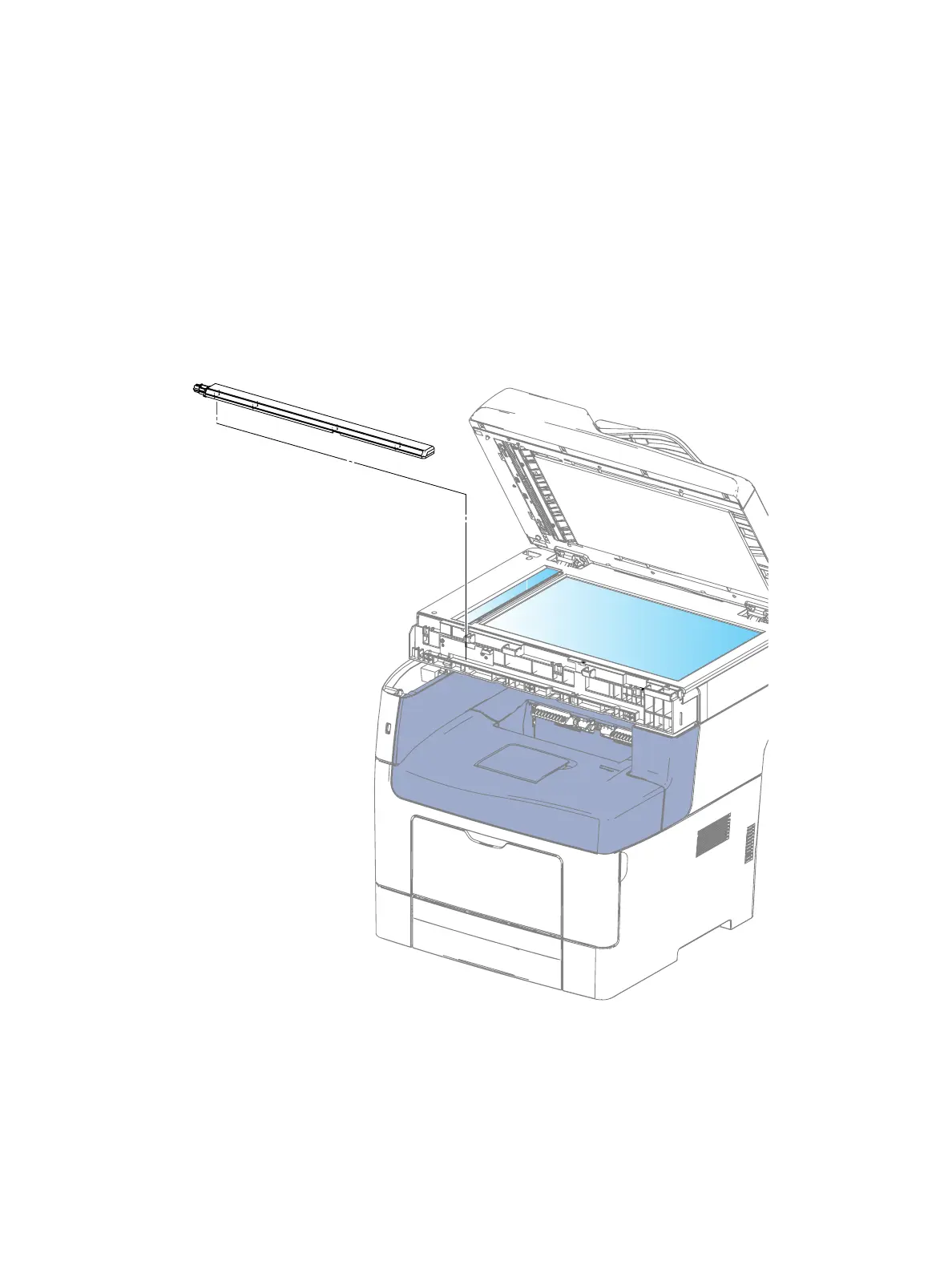

2. Remove the IIT Front Cover. (Figure 1)
a. Release the tab on the left side of the cover.
b. Slide the cover to the left and remove.
Figure 1
Replacement
1. Replace in reverse order.
s3610-142b
To Next Page
