Xerox WorkCentre 3615 Service Manual

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-85
REP 4.3 Exit Invert Drive Assembly
PL 4.1 Drive
WARNING: Allow the Fusing Assembly to cool before servicing the product.
1. Remove (REP 5.2 ESS PWB Housing).
2. Access the MCU PWB. (Figure 1)
a. Release 4 clips that secure the Top Frame Assembly to remove it from the chassis.
b. Release 3 clips that secure the MCU PWB cover to remove it from the chassis.
c. Disconnect P/J16 from the MCU PWB and release the invert clutch harness from the guide.

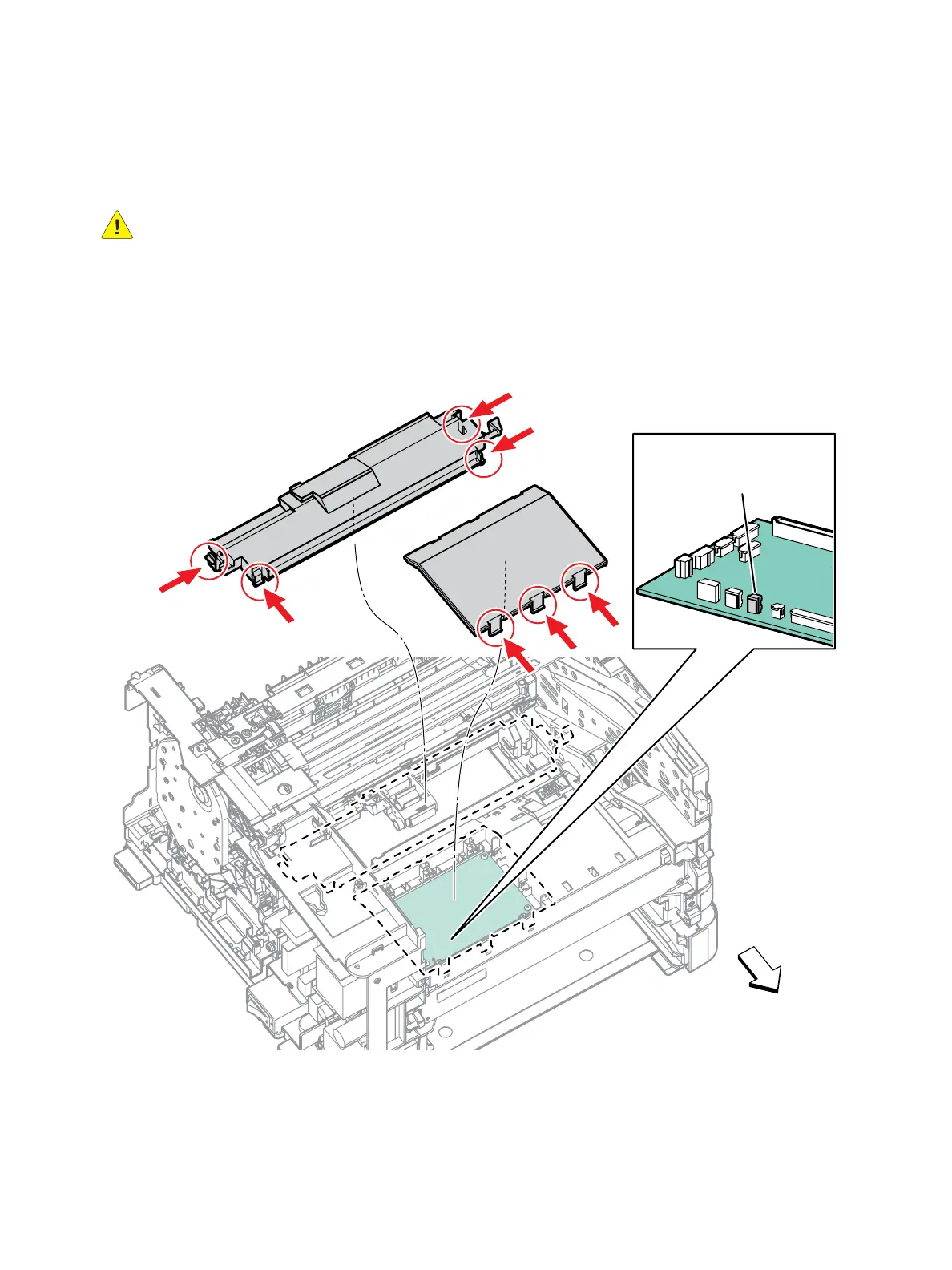

Figure 1
s3610-054
P/J16
Front

Xerox WorkCentre 3615 Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 1200 dpi
Fax	Yes
Duplex Printing	Yes
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory (Standard)	256 MB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Print Speed	47 ppm
Scan Resolution	600 x 600 dpi
Automatic Document Feeder	50 sheets
Connectivity	Ethernet
First Page Out Time (Copy)	8.5 seconds
Paper Capacity	250 sheets
Network Connectivity	Ethernet
Operating System Compatibility	Windows, Mac, Linux
