Xerox WorkCentre 3615

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-17
REP 1.8 Lower Rear Cover (3610)
PL 1.1 Covers (3610)
Removal
1. Remove (REP 1.7 Left Side Cover (3610)).
2. Remove (REP 1.6 Right Side Cover (3610)).
3. Close the Rear Cover.
4. Remove the Lower Rear Cover. (Figure 1)
a. Release the boss at each end of the cover.
b. Slide the cover to the left to release 3 clips that secure the cover to the chassis.
c. Remove the cover.

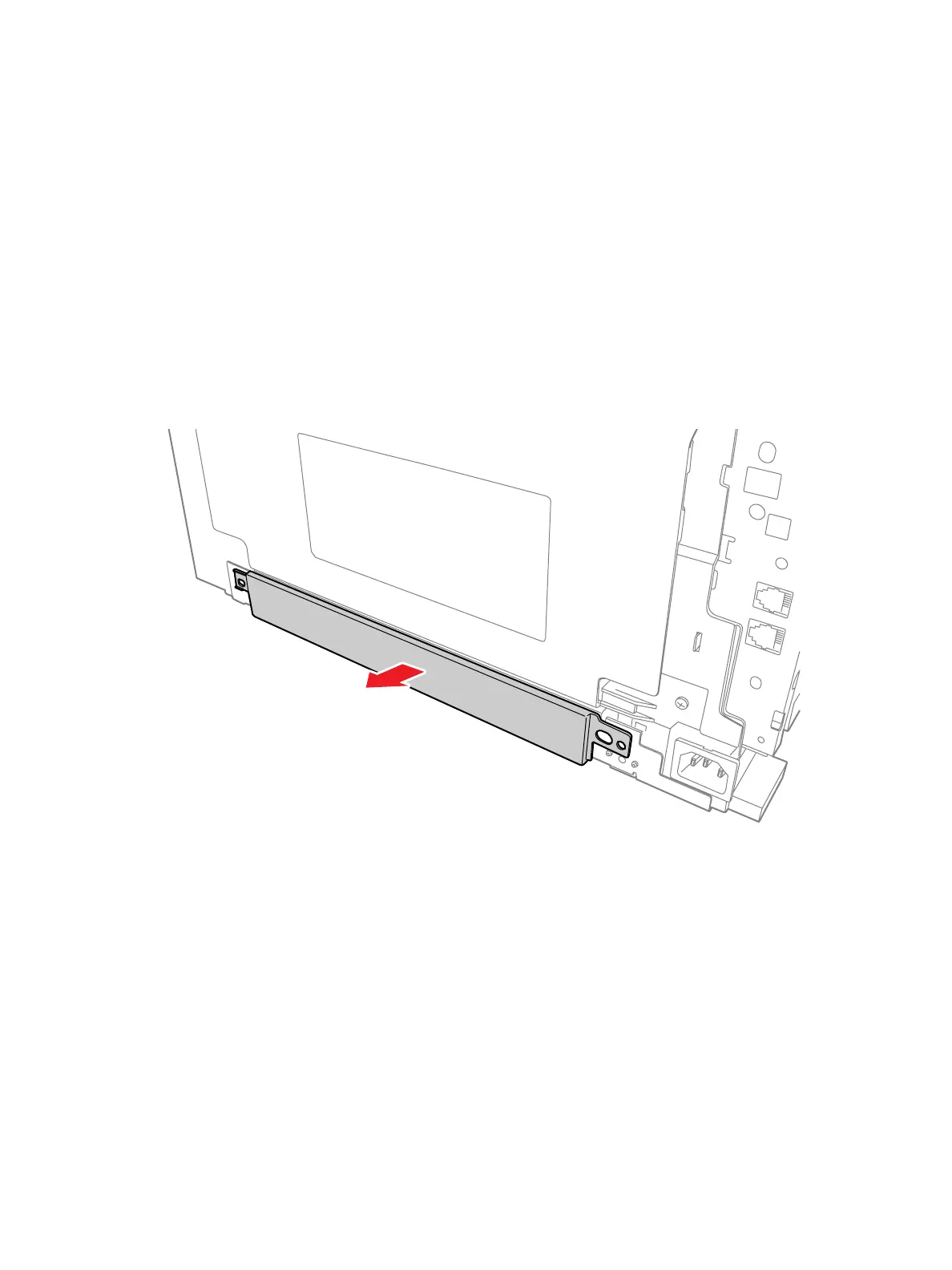

Figure 1
Replacement
1. Replace in reverse order.
s3610-159
