Xerox WorkCentre 3615 Service Manual

Image Quality
Phaser 3610, WorkCentre 3615 Service Manual3-28

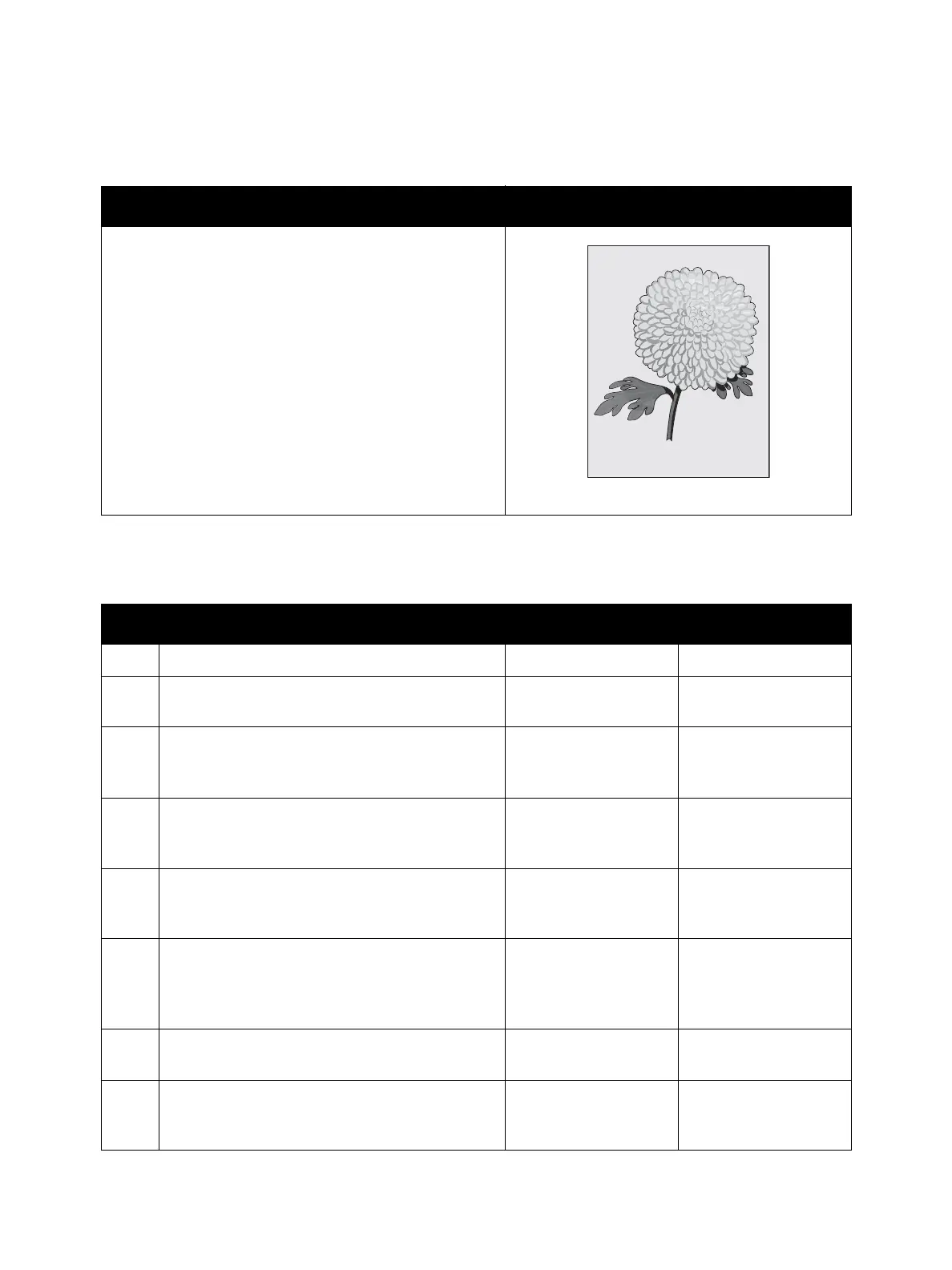

IQ-11 Background
Note: for the Phaser 3610, begin the procedure at step 4.
Troubleshooting Reference
Applicable Parts Example Print
•Xerographic Connector Assembly, PL 3.1
• Toner Cartridge, PL 3.1
• Drum Cartridge, PL 3.1
•HVPS, PL 5.3
Troubleshooting Procedure
Step Actions and Questions Yes No
1 Does the error occur only during copying? Go to step 2. Go to step 4.
2
Is the original clean?
Go to step 3. Change the original.
3
Is the Lighten/Darken set to Darker 2 or 3?
Change the setting to
Normal, then go to
step 4.
Go to step 4.
4
Is the Adjust Density setting darker 2 or 3?
(Machine Status / Tools / Admin Settings /
Service Tools)
Change the setting to
Normal, then go to
step 5.
Go to step 5.
5
Print the Test Print Gradation ESS in diagnosis.
(Service-Mode / Printer Diag / Test Print)
Is the image printed correctly?
Troubleshooting
complete
Go to step 6.
6
Is the installed paper new and dry? Does the
paper meet specifications?
Go to step 7.
Replace with paper
that meets specifica-
tions, then go to
step 7.
7
Check the Toner Type.
Is the XEROX Toner seated?
Go to step 8.
Replace the toner with
XEROX toner.
8
Execute the Clean Developer routine. (Machine
Status / Tools / Admin Settings / Service Tools)
Is the image printed correctly?
Troubleshooting
complete.
Go to step 9.
Background Contamination

Xerox WorkCentre 3615 Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 1200 dpi
Fax	Yes
Duplex Printing	Yes
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory (Standard)	256 MB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Print Speed	47 ppm
Scan Resolution	600 x 600 dpi
Automatic Document Feeder	50 sheets
Connectivity	Ethernet
First Page Out Time (Copy)	8.5 seconds
Paper Capacity	250 sheets
Network Connectivity	Ethernet
Operating System Compatibility	Windows, Mac, Linux
