Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-76
REP 3.4 Transfer Roller Assembly
PL 3.4 Transfer Roller
Removal
WARNING: Allow the Fusing Assembly to cool before servicing the product.
1. Open the Rear Cover.

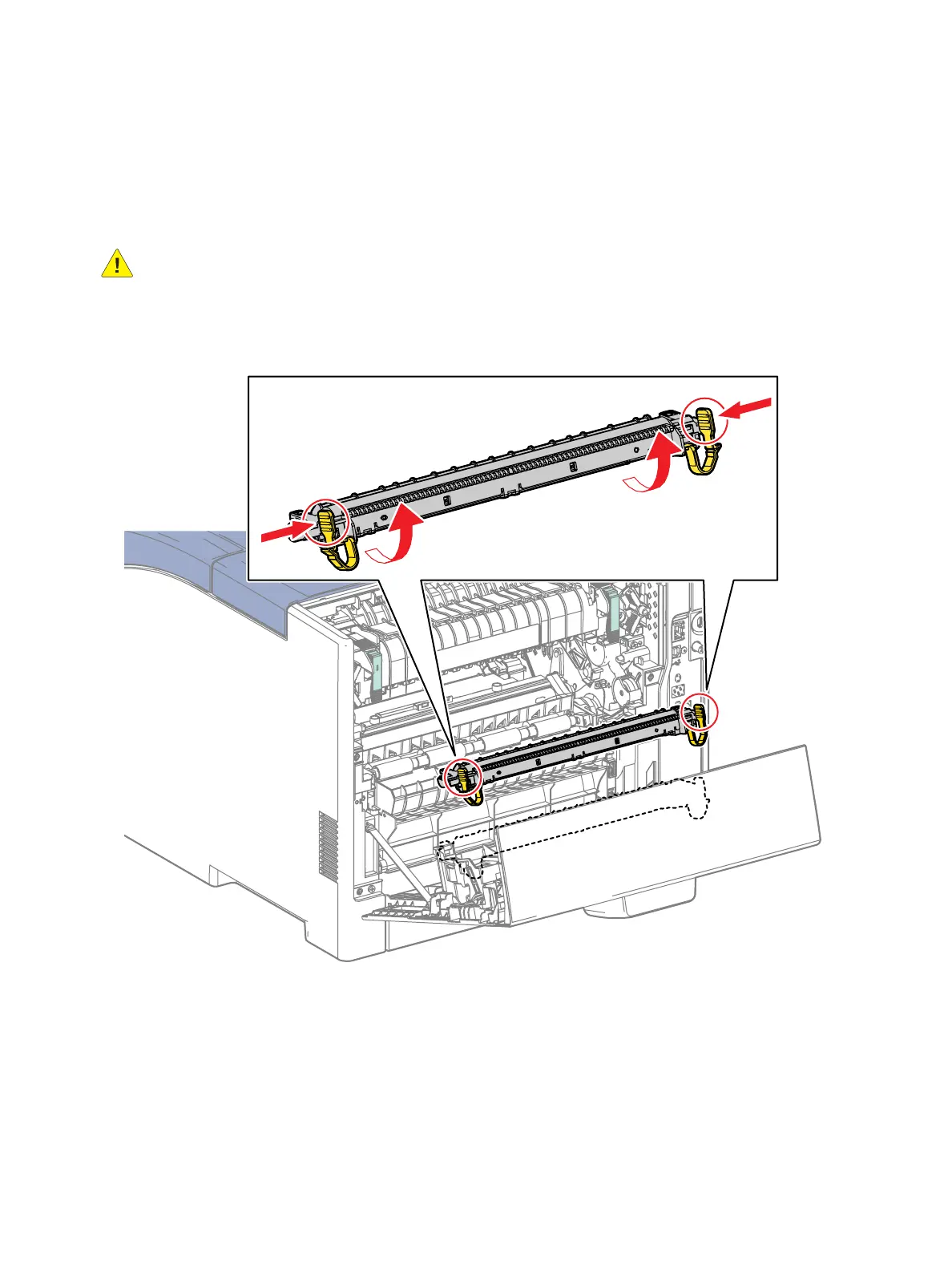

2. Press 2 clips on the left and right sides and rotate the Transfer Roller Assembly upward to remove
it. (Figure 1)
Figure 1
Replacement
1. Replace in reverse order.
2. Reset the Transfer Roller Assembly Counter. (Resetting Counters)
s3610-043
