Xerox WorkCentre 3615 Service Manual

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-75
4. Release all the harnesses from the harness guides around the MCU PWB.
5. Remove the Xerographic Connector Assembly. (Figure 2)
a. Release the clip at the top of the connector.
b. Release the Connector harness from the chassis and gently pull enough slack to remove the
connector and disconnect P/J254.

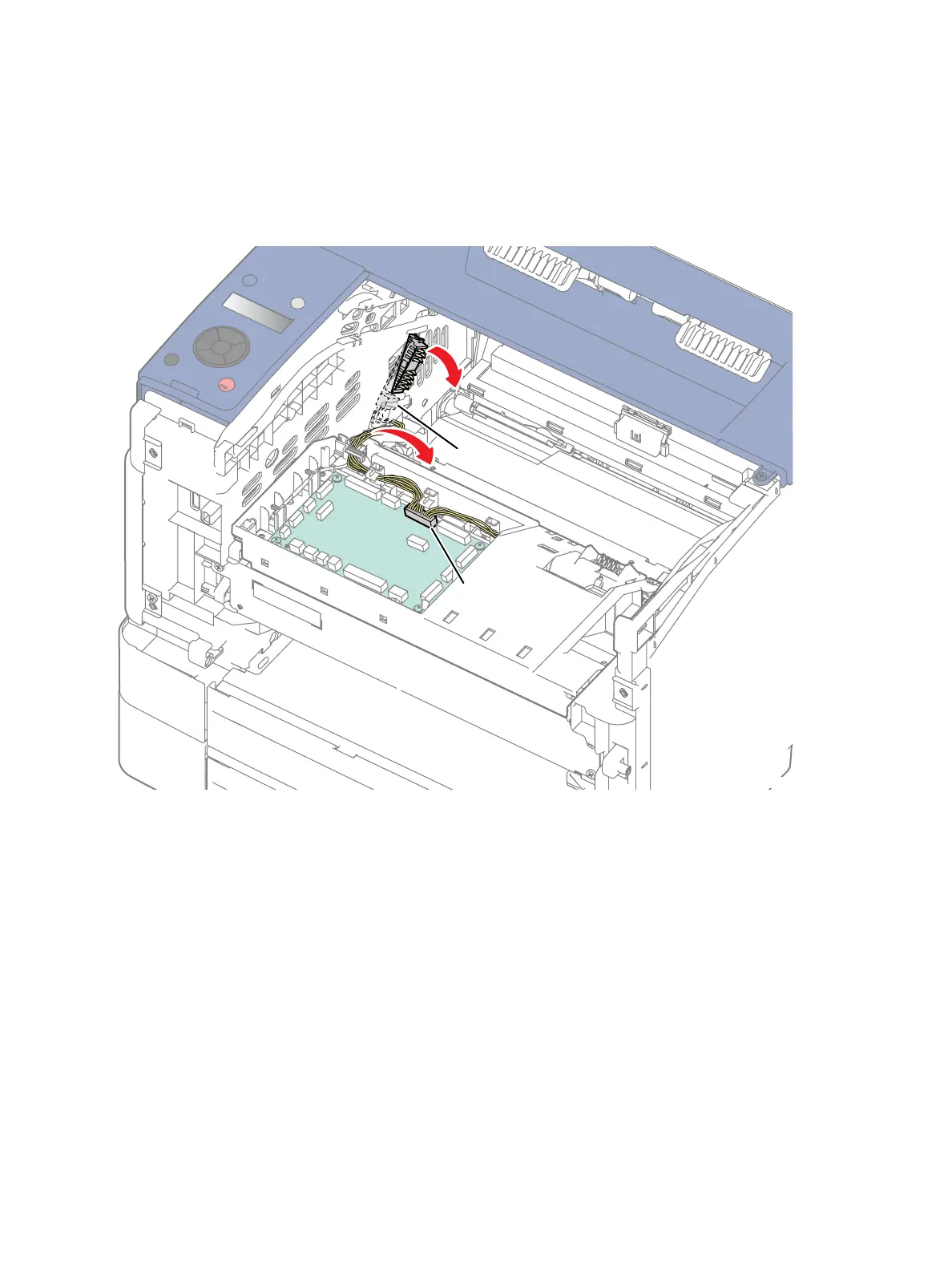

Figure 2
Replacement
1. Replace in reverse order.
s3610-042
P/J25
P/J254
