Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-48
REP 2.6 Registration Clutch
PL 2.2 Transport Assembly
Removal
WARNING: Allow the Fusing Assembly to cool before servicing the product.
1. Remove (REP 2.2 Transport Assembly).
2. Remove The Registration Clutch. (Figure 1)
a. Remove the E-ring that secures the Registration Clutch to the shaft.
b. Release the Registration Clutch harness from the Transport Assembly harness guide to
remove the clutch.

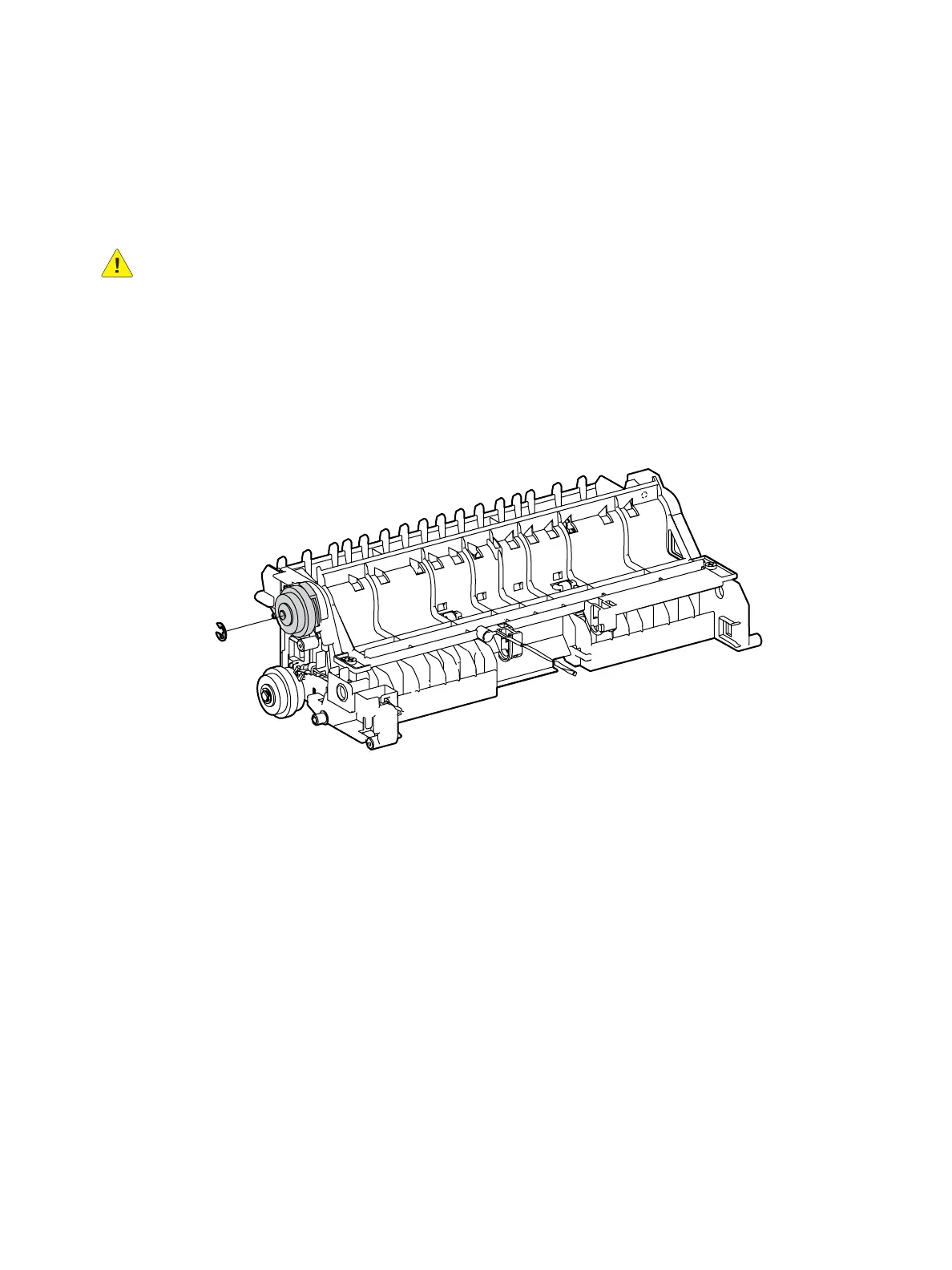

Figure 1
Replacement
1. Replace in reverse order.
