Xerox WorkCentre 3615 Service Manual

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-13
REP 1.5 Rear Cover Assembly
Removal
WARNING: Allow the Fusing Assembly to cool before servicing the product.
1. Open the Rear Cover.
2. Remove the Rear Cover Assembly. (Figure 1)
a. Release 1 clip to remove the connector cover.
b. Disconnect P/J2401.
c. Release the Stopper Strap from the chassis.
d. Lift up to release 1 hinge hook.
e. Release the boss on the left side to remove the cover. The ground spring should release from
the chassis hook as you remove the cover.

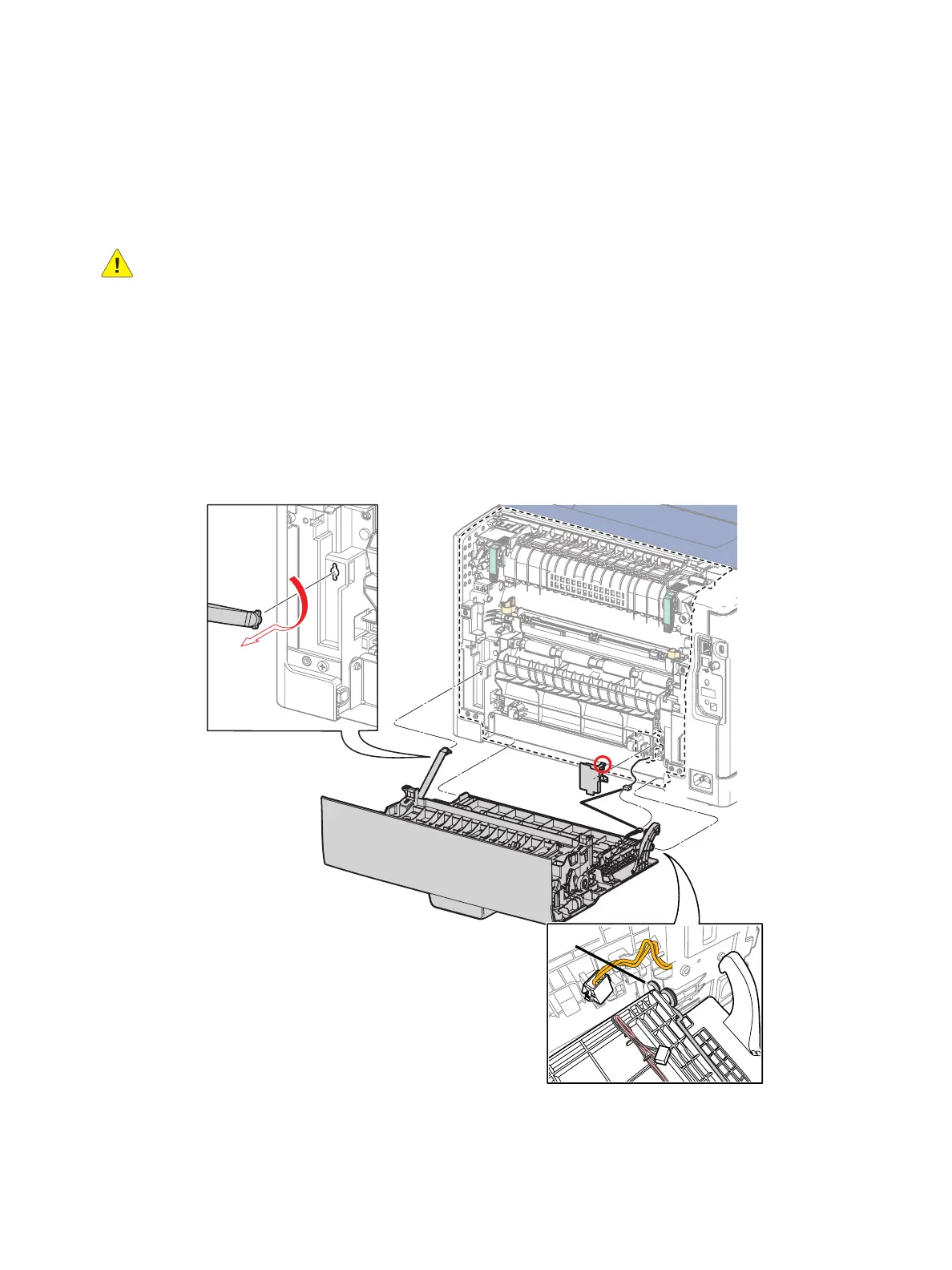

Figure 1
s3610-011
P/J2401
c)
a)
b)
e)
d)
e)
