Xerox WorkCentre 3615 Service Manual

Image Quality
Phaser 3610, WorkCentre 3615 Service Manual 3-23

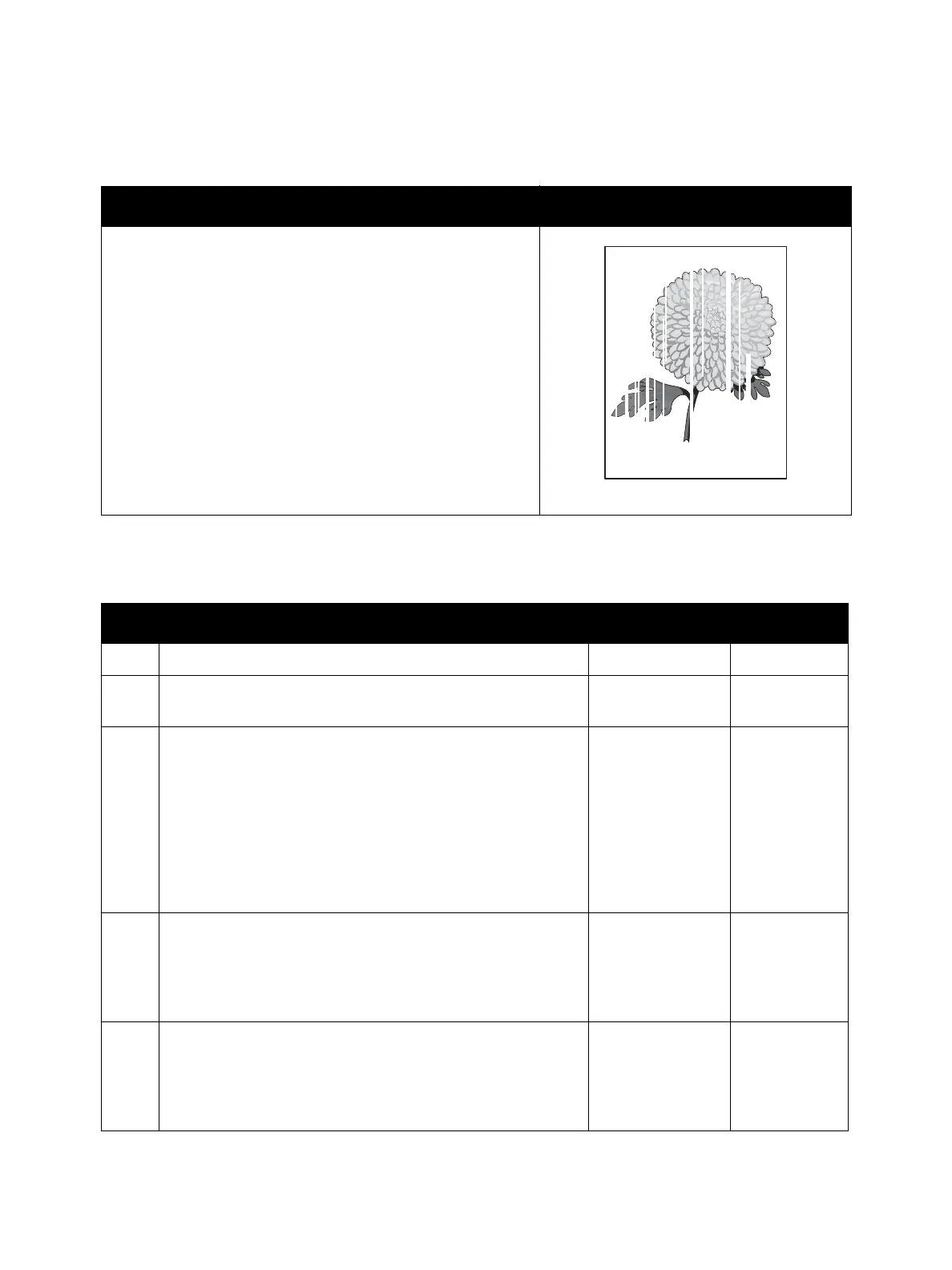

IQ-8 Vertical Bands, Voids, or Streaks (In Paper Feed Direction)
Note: for the Phaser 3610, begin the procedure at step 4.
Troubleshooting Reference
Applicable Parts Example Print
• Transfer Roller Assembly, 3.4
• Drum Cartridge, PL 3.1
•ROS Assembly, PL 3.2
• Fusing Assembly, PL 3.5
Troubleshooting Procedure
Step Actions and Questions Yes No
1 Does the error occur only during copying? Go to step 2. Go to step 4.
2
Is the original clean?
Go to step 3.
Change the
original.
3
Is there any damages or foreign substances on the Platen
Glass and DADF Feed Roller?
Remove the for-
eign substances
or clean up the
IIT/DADF. If the
Platen Glass has
been damaged,
replace (REP 6.1
IIT Assembly),
then go to step 5.
Go to step 4.
4
Print the Pitch Chart. (Machine Status / Tools / Admin Set-
tings / Service Tools / Chart.
When a repeating defect / deletion is observed, use the Pitch
Chart to determine the defective part.
Are there any defects / deletions matching the chart?
Replace the corre-
sponding parts.
Go to step 5.
Go to step 5.
5
Is the installed paper new and dry? Does the paper meet
specifications?
Go to step 6.
Replace with
paper that
meets specifi-
cations, then
go to step 6.
Vertical Blank Lines

Xerox WorkCentre 3615 Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 1200 dpi
Fax	Yes
Duplex Printing	Yes
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory (Standard)	256 MB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Print Speed	47 ppm
Scan Resolution	600 x 600 dpi
Automatic Document Feeder	50 sheets
Connectivity	Ethernet
First Page Out Time (Copy)	8.5 seconds
Paper Capacity	250 sheets
Network Connectivity	Ethernet
Operating System Compatibility	Windows, Mac, Linux
