Wiring

Phaser 3610, WorkCentre 3615 Service Manual 7-45

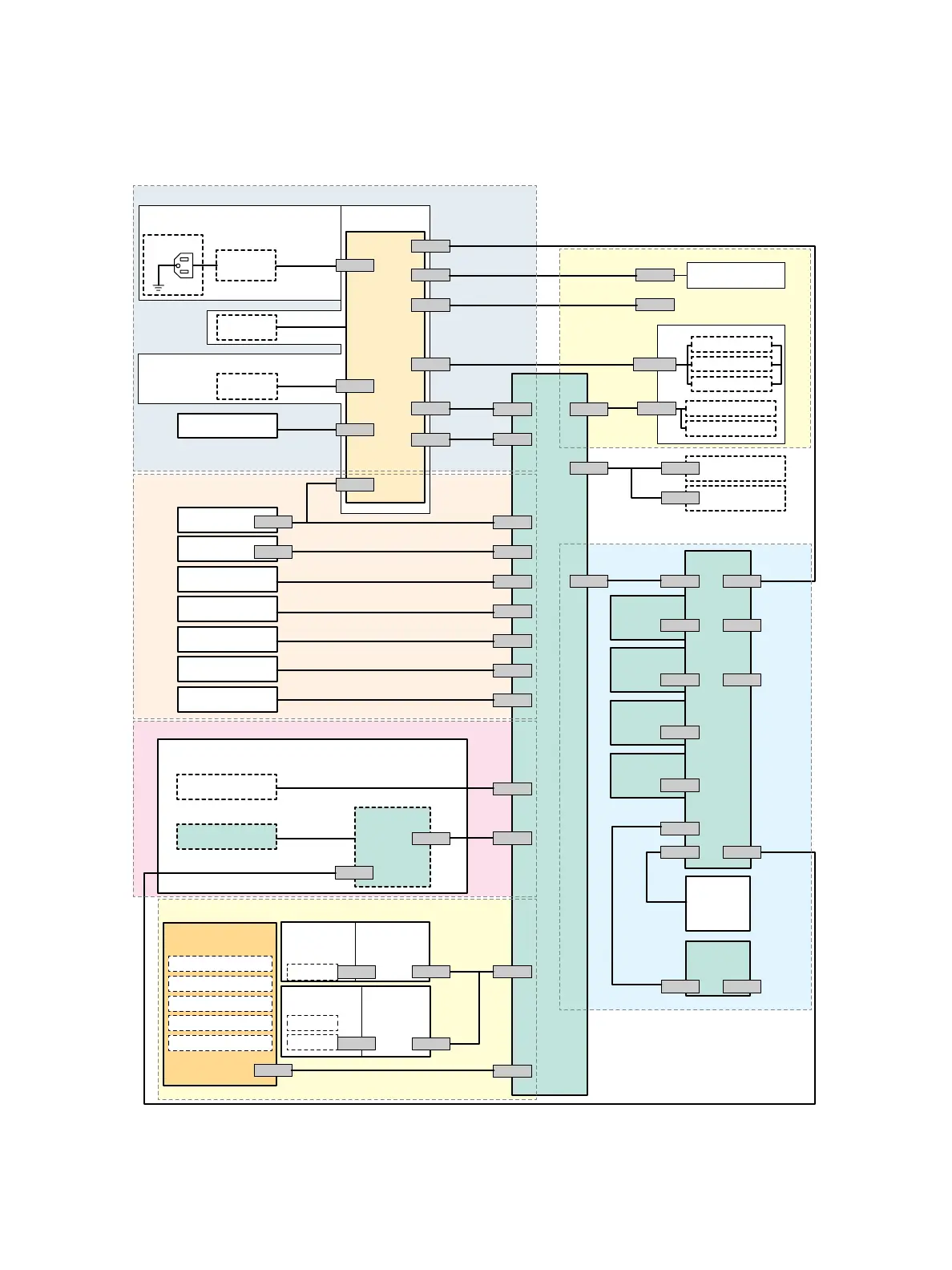

General Wiring Diagram for 3615

s3610-186

1Power

AC Inlet

PL 5.4

AC Inlet

Main Switch

LVPS

PL 5.2

LVPS

PL 5.2

Front Interlock

Switch

P/J200

P/J211

P/J240 P/J2401

P/J230

P/J241

P/J212

P/J101

P/J111

P/J502

P/J210 P/J21

P/J22

P/J23 P/J233

P/J27 P/J271

P/J20

P/J421 P/J441

P/J411P/J401

P/J402

P/J412

P/J422

P/J413

P/J431

P/J2 P/J1

P/J414

P/J10

P/J11

P/J12

P/J14

P/J15

P/J16

P/J17

P/J18

P/J19

P/J220

P/J250 P/J251

P/J201

Interlock Harness Assembly

PL 2.4

Rear Interlock

Switch

LVPS Fan

PL 4.2

2 Drive

Main Drive Assy

PL 4.1

Dispense Motor

PL 3.3

Registration Clutch

PL 2.2

Tray Feed Clutch

PL 2.2

Bypass Tray Feed

Solenoid PL 2.6

Exit Clutch Assembly

PL 4.1

Invert Clutch Assy

PL 4.1

3 ROS

ROS Assembly

PL 3.2

Polygon Motor Assy

SOS Board

LDD Board

MCU PWB

PL 5.3

5 Fusing

Test Port

Fuser

PL 3.5

DP/DJ233

Rear Fan [Sub Fan]

PL 1.3

Long Heater (2)

Short Heater (1)

Thermostat

Main Temp. Sensor

Side Temp. Sensor

Exit Sensor

PL 2.5

P/J272

Full Stack Sensor

PL 2.5

6 Controller

ESS PWB

PL 5.2

USB Port

Ethernet

Port

Kit Memory

(Option)

PL 5.2

Fax PWB

PL 5.2

Wireless Adapter

(Option)

PL 5.2

P/J412

SD Card (Option)

PL 5.2

Front

USB Port

MFP Console

Assembly

PL 1.5

Front USB

PWB

PL 5.2

4 Xero/HVPS

HVPS

PL 5.3

BP Tray No Paper Sensor

Tray No Paper Sensor

Registration Sensor

Temperature Sensor

Humidity Sensor

Toner Cartridge

PL 3.1

Toner CRUM

Connector

PL 3.3

Xerographic Assy

PL 3.1

ATC Sensor

CRUM

Xerographic

Connector

PL 3.3

P/J253

P/J254

P/J261 P/J26

P/J25

P/J501
