Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-64
REP 2.15 Pick-up Holder Assembly
PL 2.6 MSI
Removal
1. Remove all the trays.
2. Tip the unit onto the left side.

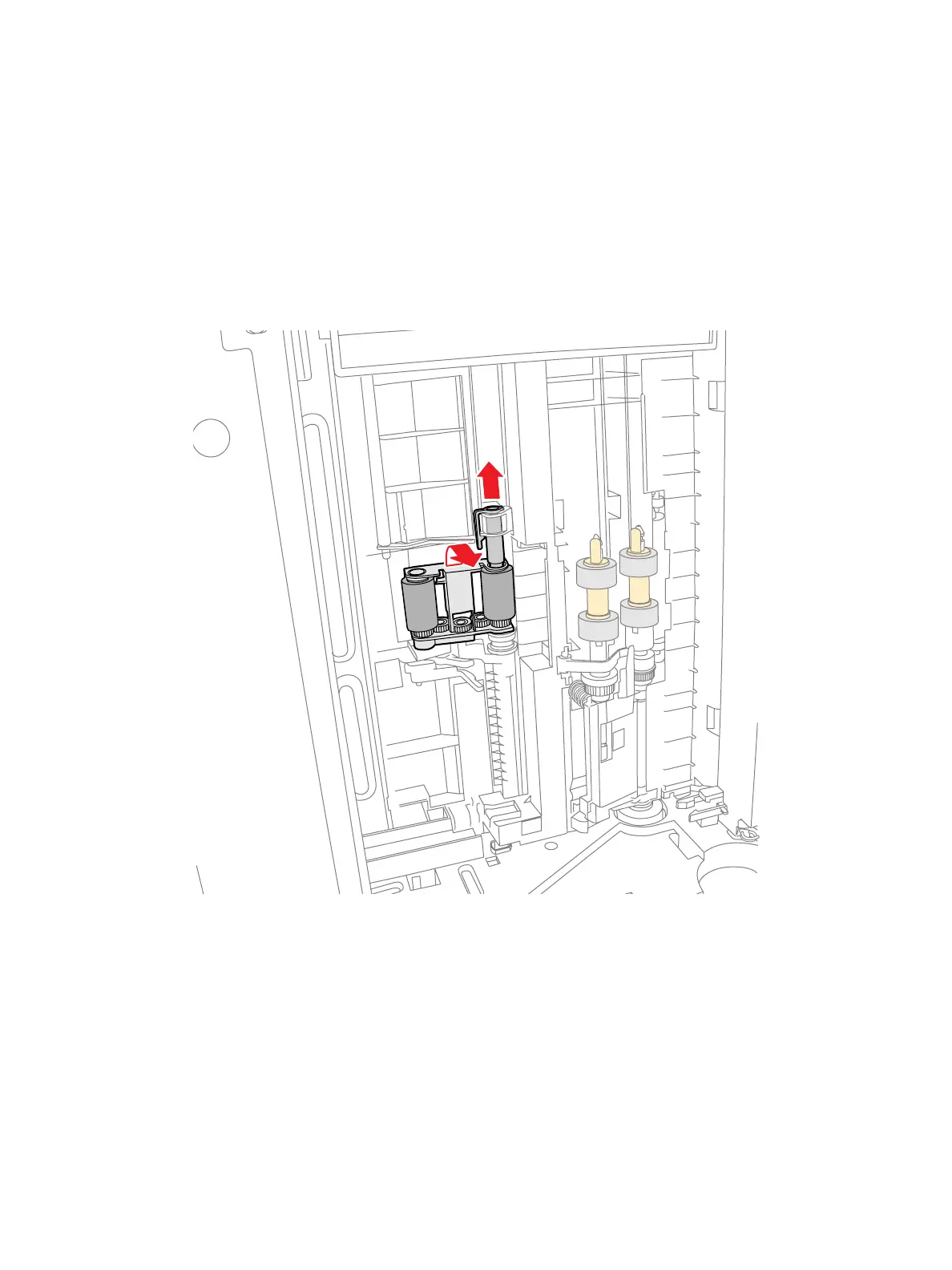

3. Release the clip that secures the Pick-up Flange and remove the assembly. (Figure 1)
Figure 1
Replacement
1. Make sure the Roller Assembly engages the Lift Lever upon replacement.
2. Replace in reverse order.
