Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-71
REP 3.2 Toner Dispense CRUM Assembly
PL 3.3 Toner Dispense
Removal
1. Open the Front Cover.
2. Remove the Drum Cartridge.

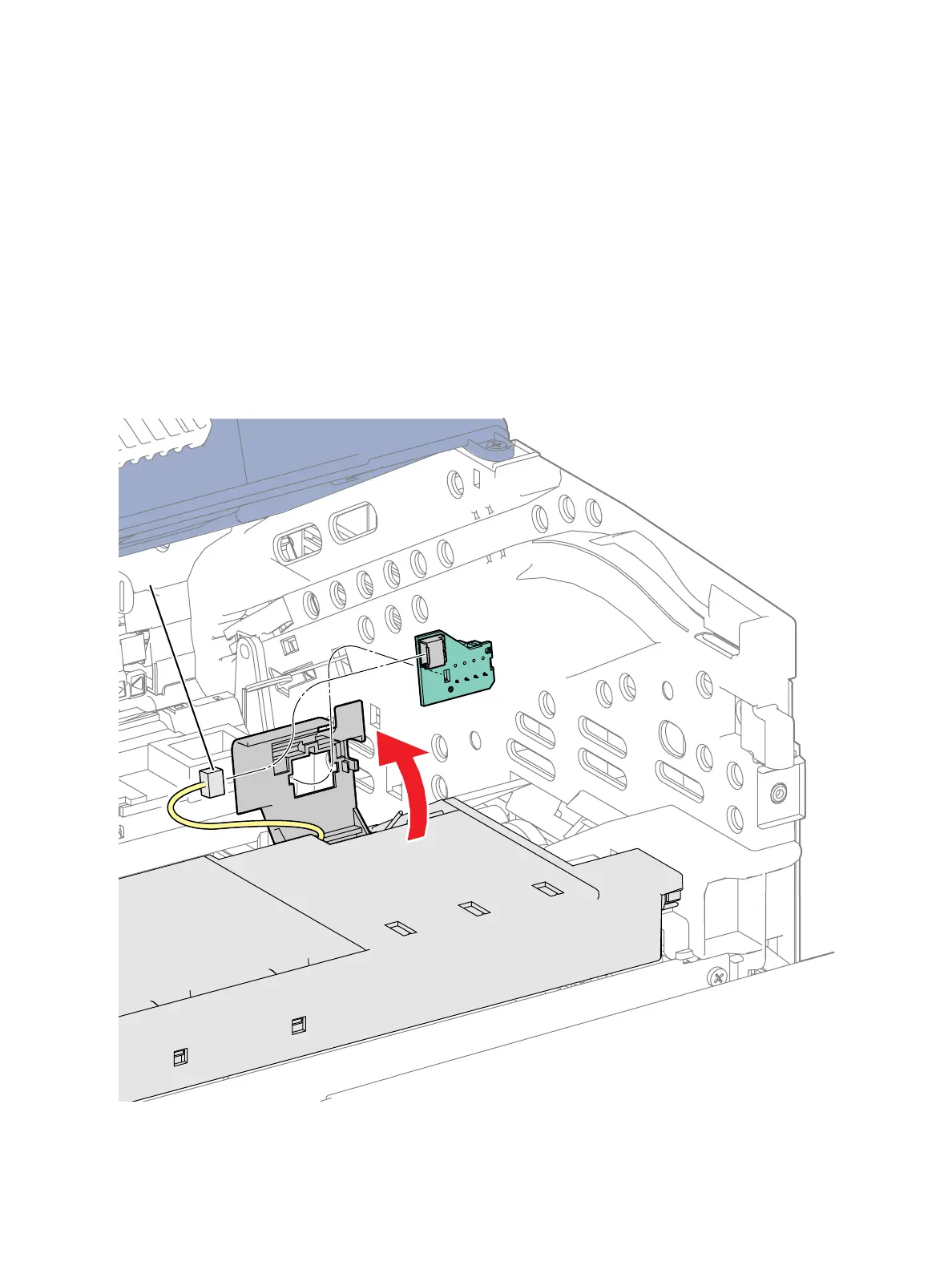

3. Access the CRUM. (Figure 1)
a. Release 1 clip to open the CRUM Housing from the MCU PWB Housing.
b. Disconnect P/J 253.
CAUTION: The wire to the connector may be short, so use caution when removing the connector.
Figure 1
s3610-03
P/J253
To Next Page
