Xerox WorkCentre 3615

Wiring
Phaser 3610, WorkCentre 3615 Service Manual7-54

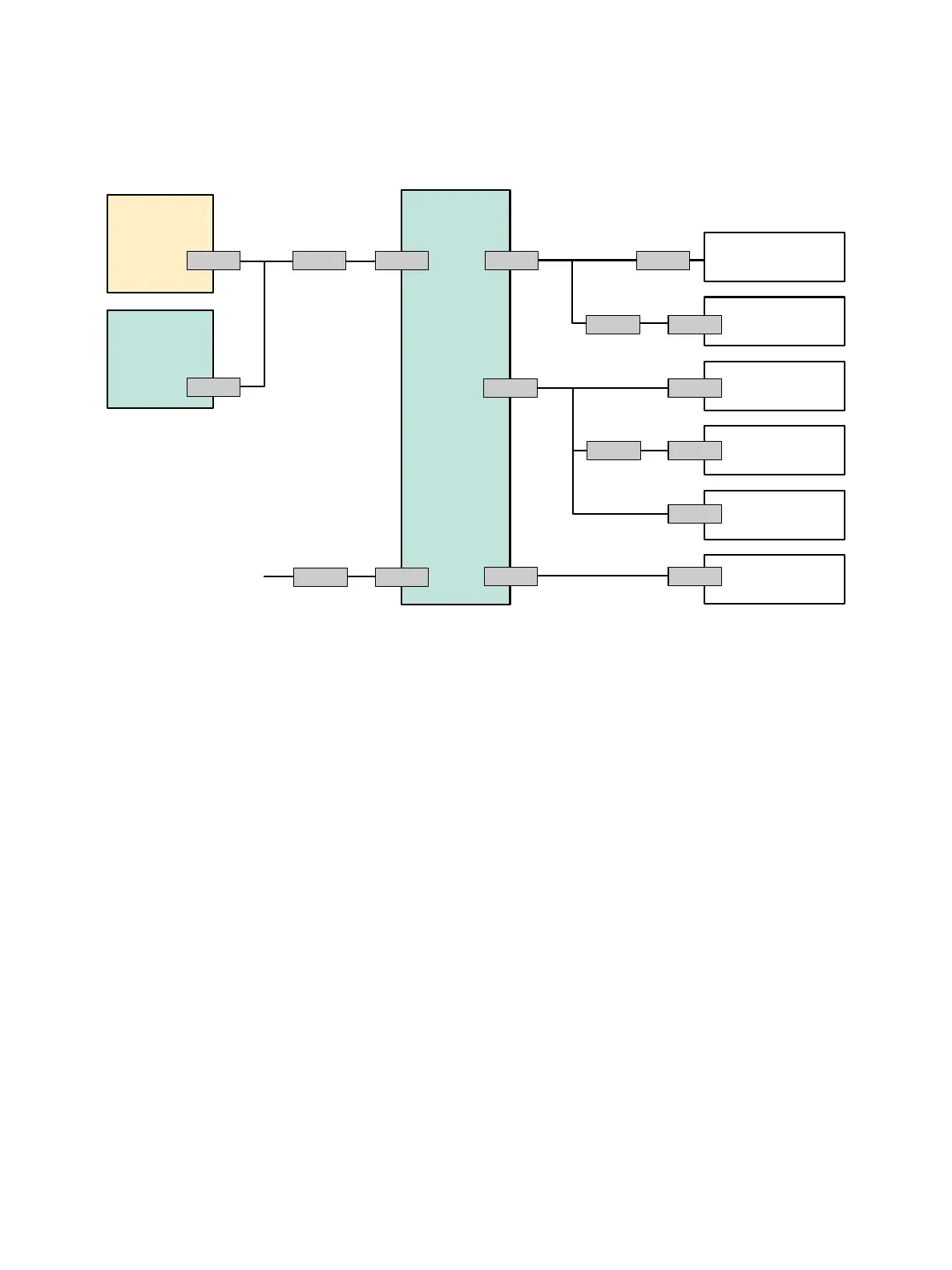

8. Optional Feeder
s3610-188
LVPS
P L 5.1
MCU PWB
PL 5.3
Optional Tray
PWB
PL 7.1
Optional Tray Feed
Clutch PL 7.1
No Paper Sensor
PL 7.2
Take Away Clutch
(Registration Clutch)
PL 7.2
Path Sensor
PL 7.4
Option Motor Assy
PL 7.1
To Second Feeder
P/J213 P/J243
P/J4231 P/J423 P/J422 P/J4221
P/J419
P/J24
P/J421
P/J4213
P/J420 P/J4201
P/J4202
P/J4203
P/J4214
P/J4212
Not used
