Xerox WorkCentre 3615 Service Manual

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-106
REP 5.5 Front USB PWB
PL 5.2 Electrical (ESS PWB / LVPS) (3615)
Removal
WARNING: Allow the Fusing Assembly to cool before servicing the product.
1. Remove the Bypass Tray.
2. Remove (REP 1.2 Front Cover Assembly (3610 / 3615)).
3. Remove (REP 1.5 Rear Cover Assembly).
4. Remove (REP 1.17 Lower Left Side Cover (3615)).

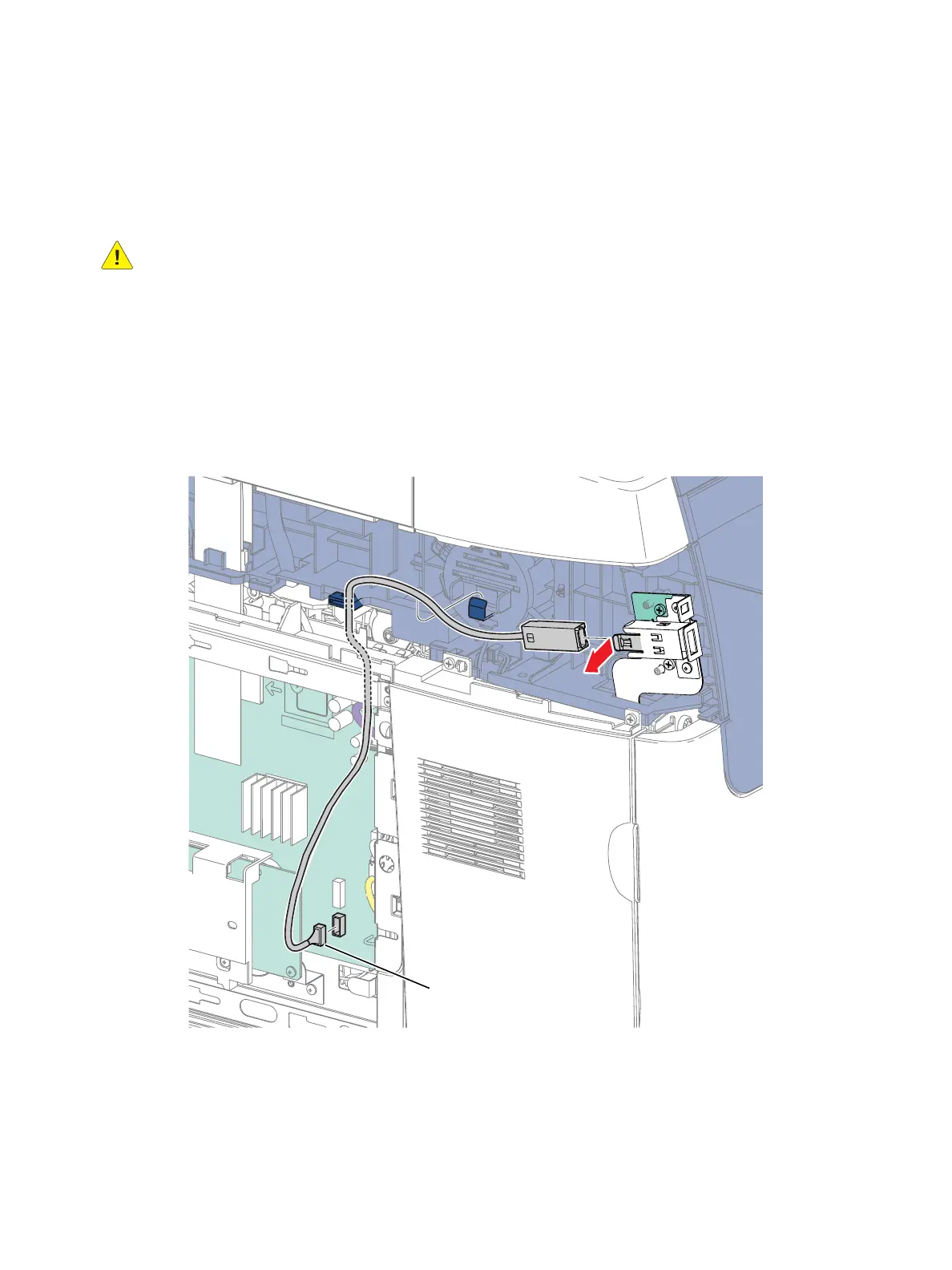

5. Remove the PWB. (Figure 1)
a. Disconnect P/J2 from the Front USB PWB.
b. Remove 2 screws (silver, tapping, 8mm) to remove the PWB.
Figure 1
Replacement
1. When installing the Front USB PWB, capture the ground wire with the top screw.
2. Replace in reverse order.
P/J15
s3610-18
3
b)
a)

Xerox WorkCentre 3615 Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 1200 dpi
Fax	Yes
Duplex Printing	Yes
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory (Standard)	256 MB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Print Speed	47 ppm
Scan Resolution	600 x 600 dpi
Automatic Document Feeder	50 sheets
Connectivity	Ethernet
First Page Out Time (Copy)	8.5 seconds
Paper Capacity	250 sheets
Network Connectivity	Ethernet
Operating System Compatibility	Windows, Mac, Linux
