Xerox WorkCentre 3615 Service Manual

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-98
Electrical Repairs
REP 5.1 ESS PWB
PL 5.1 Electrical (ESS PWB / LVPS) (3610)
PL 5.2 Electrical (ESS PWB / LVPS) (3615)
Removal
CAUTION: Do not replace the MCU and ESS PWBs at the same time. Replace or check the ESS
PWB first, then cycle system power before replacing the MCU PWB.
CAUTION: Do not remove the ESS PWB from the protective bag until ready for installation.
Always wear a grounded wrist band while handling circuit boards.
1. Ask the customer to export their address book. Customer can find instructions for exporting their
address book in their UG or on the Xerox.com Support page.
2. Remove (REP 1.7 Left Side Cover (3610)) (REP 1.17 Lower Left Side Cover (3615)).
3. Disconnect all connections to the ESS PWB.

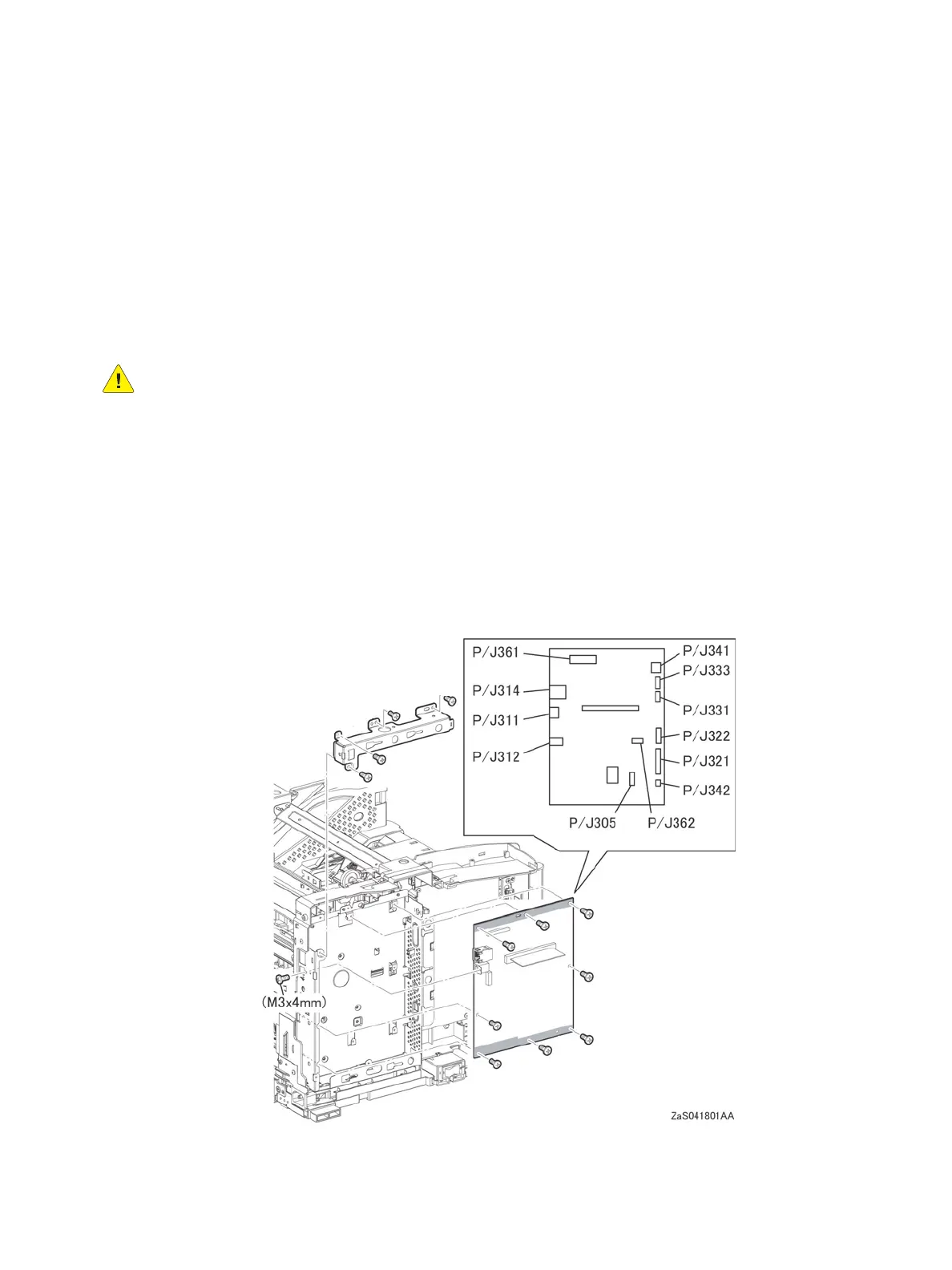

4. For the 3610, remove 4 screws and the top plate, and remove 8 screws (silver, M3, 6mm) and 1
screw (silver, M3, 4mm) that secure the ESS PWB to the chassis. (Figure 1).
Figure 1

Xerox WorkCentre 3615 Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 1200 dpi
Fax	Yes
Duplex Printing	Yes
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory (Standard)	256 MB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Print Speed	47 ppm
Scan Resolution	600 x 600 dpi
Automatic Document Feeder	50 sheets
Connectivity	Ethernet
First Page Out Time (Copy)	8.5 seconds
Paper Capacity	250 sheets
Network Connectivity	Ethernet
Operating System Compatibility	Windows, Mac, Linux
