Xerox WorkCentre 3615 Service Manual

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-91
REP 4.5 Front Links
PL 4.2 NOHAD
Removal
WARNING: Allow the Fusing Assembly to cool before servicing the product.
1. Open the Front Cover.
2. Release the right or left Front Link from the Front Cover Assembly.
3. Release the Link Connector clips from the link shaft to remove the Front Link. (Figure 1)

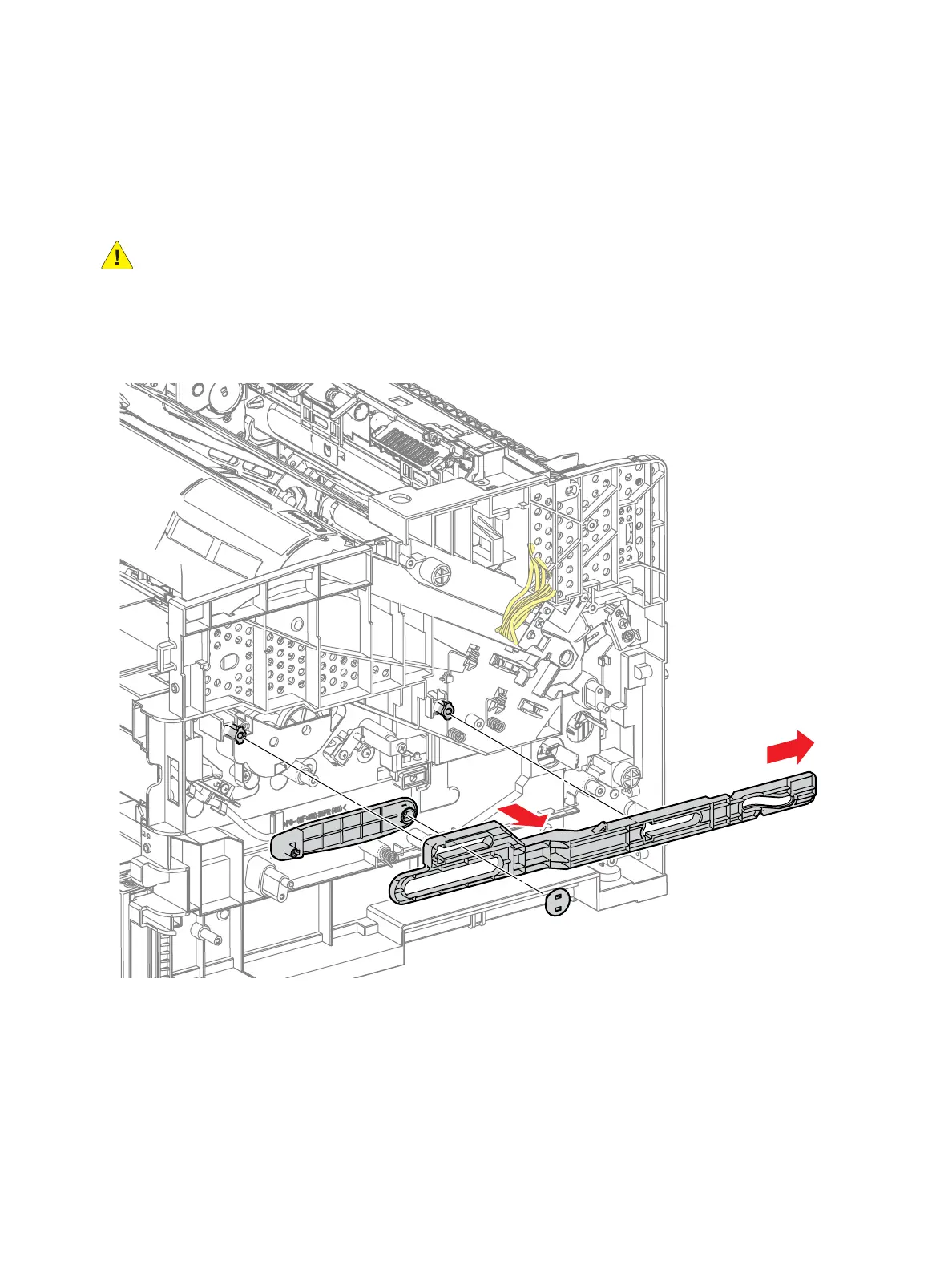

Figure 1
Replacement
1. Replace in reverse order.
s3610-059
