Xerox WorkCentre 3615

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-18
REP 1.9 IIT Left Side Cover
PL 1.5 Control Panel (3615)
Removal
1. Remove the Lower rear Cover. (Figure 1)
a. Open the IIT Assembly.
b. Pry the IIT Left Side Cover from the right and pull straight up to remove.

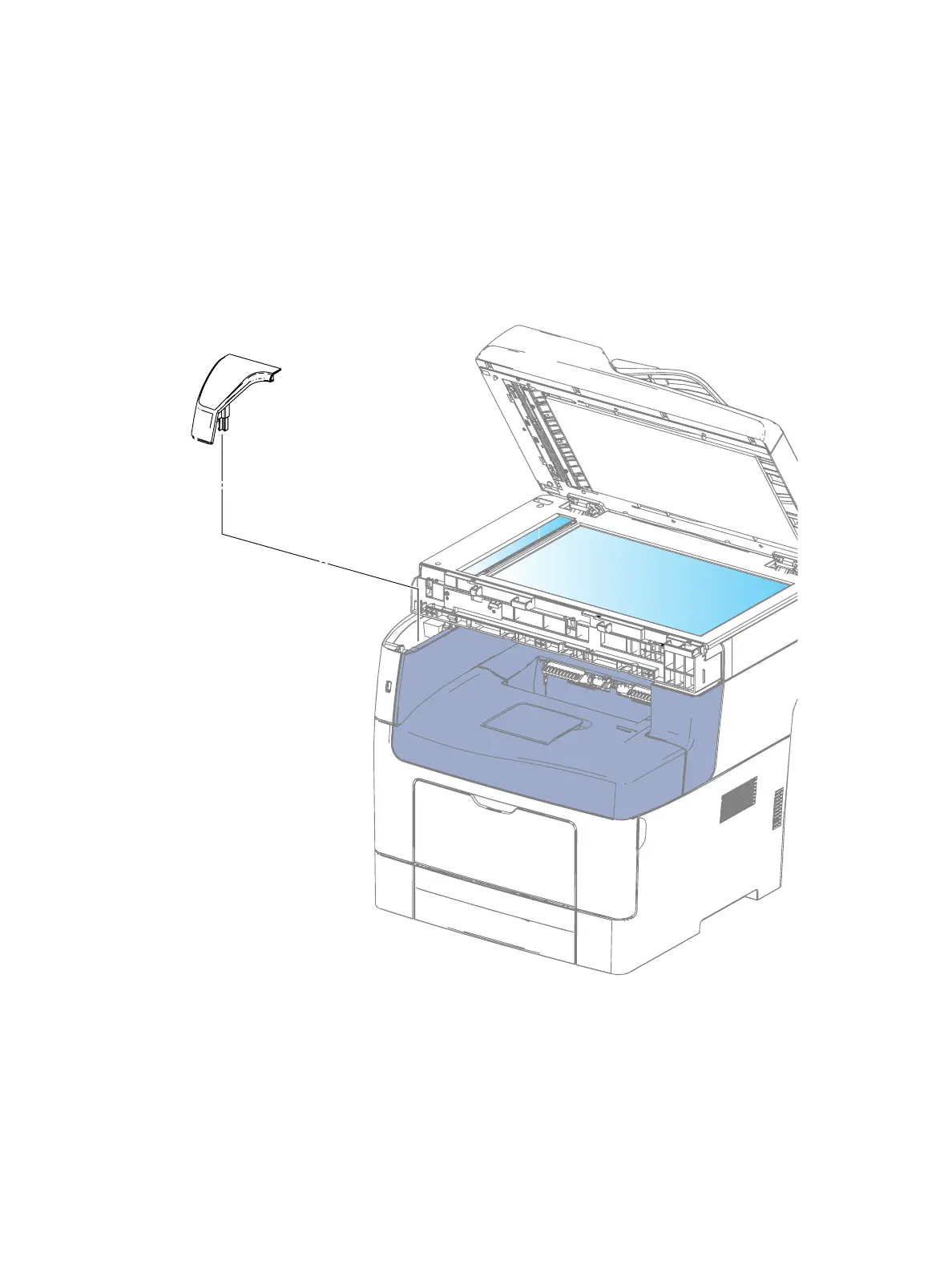

Figure 1
Replacement
1. Replace in reverse order.
s3610-142c
b)
a)
