Xerox WorkCentre 3615 Service Manual

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-94
REP 4.7 Toner Dispense Motor
PL 3.3 Toner Dispense
WARNING: Allow the Fusing Assembly to cool before servicing the product.
1. Remove the Bypass Tray.
2. Remove the Drum Cartridge.
3. Open the Rear Cover, release the stopper strap and hinge clip from the chassis and rest the Rear
Cover Assembly on the work surface.
4. Remove (REP 1.1 Control Panel (3610)).
5. Remove (REP 1.4 Top Cover Assembly (3610)).
6. Remove (REP 1.6 Right Side Cover (3610)).

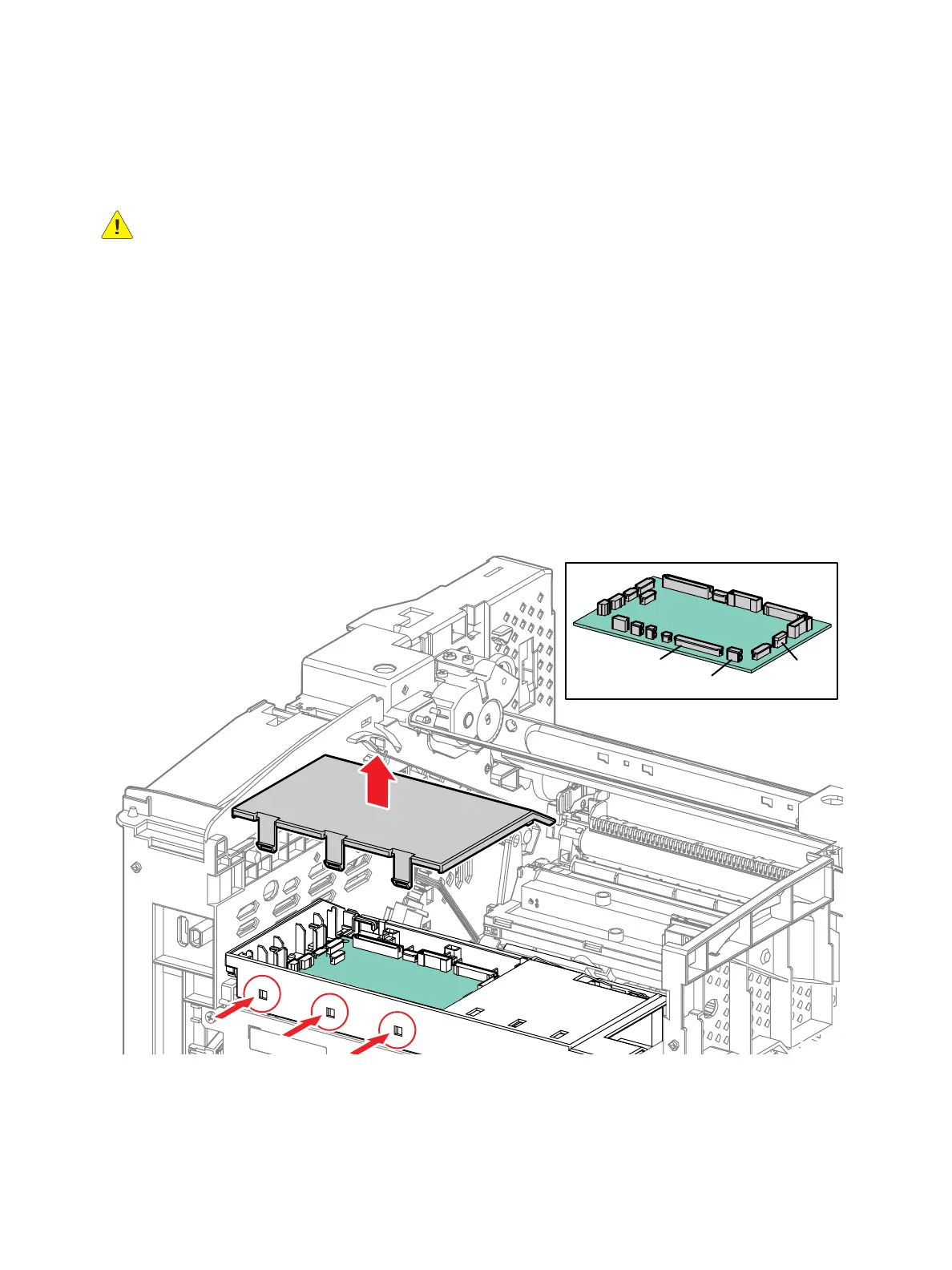

7. Prepare the MCU PWB. (Figure 1)
a. Release 3 clips to remove the MCU PWB Cover.
b. Disconnect all MCU PWB connections except P/J11, 18 and 26.
Note: Do not remove the MCU PWB.
Figure 1
s3610-03
5
P11
P18
P26

Xerox WorkCentre 3615 Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 1200 dpi
Fax	Yes
Duplex Printing	Yes
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory (Standard)	256 MB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Print Speed	47 ppm
Scan Resolution	600 x 600 dpi
Automatic Document Feeder	50 sheets
Connectivity	Ethernet
First Page Out Time (Copy)	8.5 seconds
Paper Capacity	250 sheets
Network Connectivity	Ethernet
Operating System Compatibility	Windows, Mac, Linux
