Xerox WorkCentre 3615 Service Manual

Image Quality
Phaser 3610, WorkCentre 3615 Service Manual 3-21

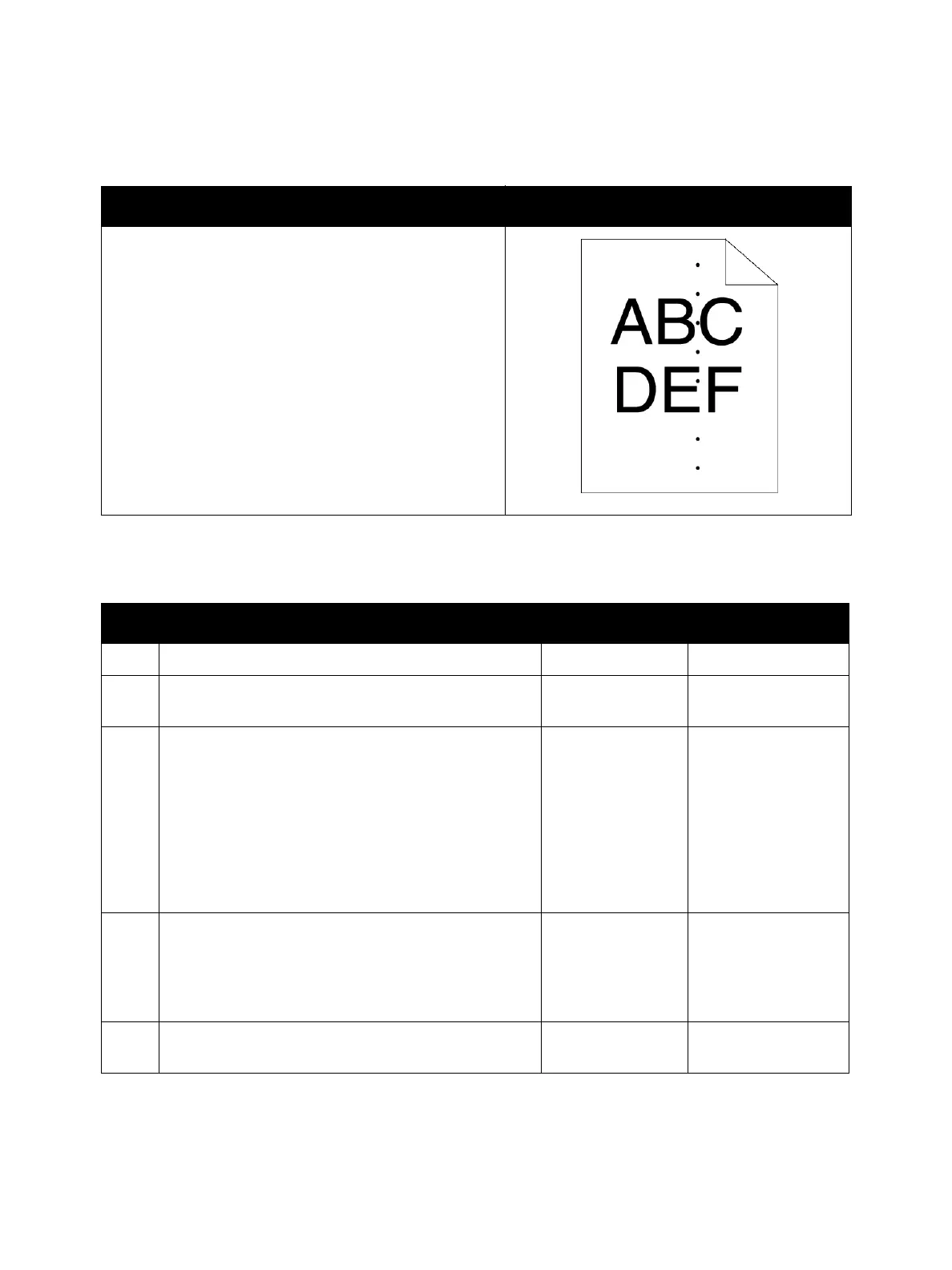

IQ-7 Pitched Black Dots
Note: for the Phaser 3610, begin the procedure at step 4.
Troubleshooting Reference
Applicable Parts Example Print
• IIT Assembly, PL 6.1
• DADF Assembly, PL 6.1
• Drum Cartridge, PL 3.1
• Transfer Roller Assembly, PL 3.4
• Fusing Assembly, PL 3.5
•HVPS, PL 5.3
Troubleshooting Procedure
Step Actions and Questions Yes No
1 Does the error occur only during copying? Go to step 2. Go to step 4.
2
Is the original clean?
Go to step 3. Change the original.
3
Is there any damages or foreign substances on the
Platen Glass and DADF Feed Roller?
Remove the for-
eign substances or
Clean up the
IIT/DADF. If
platen glass has
been damaged,
replace (REP 6.1
IIT Assembly),
then go to step 5.
Go to step 5.
4
Print the Pitch Chart. (Machine Status / Tools / Admin
Settings / Service Tools / Chart.
When a repeating defect / deletion is observed, use
the Pitch Chart to determine the defective part.
Are there any defects / deletions matching the chart?
Replace the corre-
sponding parts,
then go to step 5.
Go to step 5.
5
Clean the inside of the printer.
Is the image printed correctly?
Troubleshooting
complete.
Go to step 6.

Xerox WorkCentre 3615 Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 1200 dpi
Fax	Yes
Duplex Printing	Yes
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory (Standard)	256 MB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Print Speed	47 ppm
Scan Resolution	600 x 600 dpi
Automatic Document Feeder	50 sheets
Connectivity	Ethernet
First Page Out Time (Copy)	8.5 seconds
Paper Capacity	250 sheets
Network Connectivity	Ethernet
Operating System Compatibility	Windows, Mac, Linux
