Xerox WorkCentre 3615 Service Manual

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-49
REP 2.7 Rubber Registration Roller
PL 2.2 Transport Assembly
Removal
WARNING: Allow the Fusing Assembly to cool before servicing the product.
1. Remove (REP 2.2 Transport Assembly).
2. Remove the Rubber Registration Roller shaft. (Figure 1)
a. Remove the E-ring that secures the Registration Clutch to the shaft, then remove, but do not
disconnect the clutch.
b. Lift the tabs and rotate the registration shaft bearings to release the bearing and remove.
c. Release the tension springs from the plastic registration roller shaft.
d. Remove the E-ring on the Rubber Registration Roller shaft
e. Slide the shaft to the left to release the shaft from the Transport Assembly.

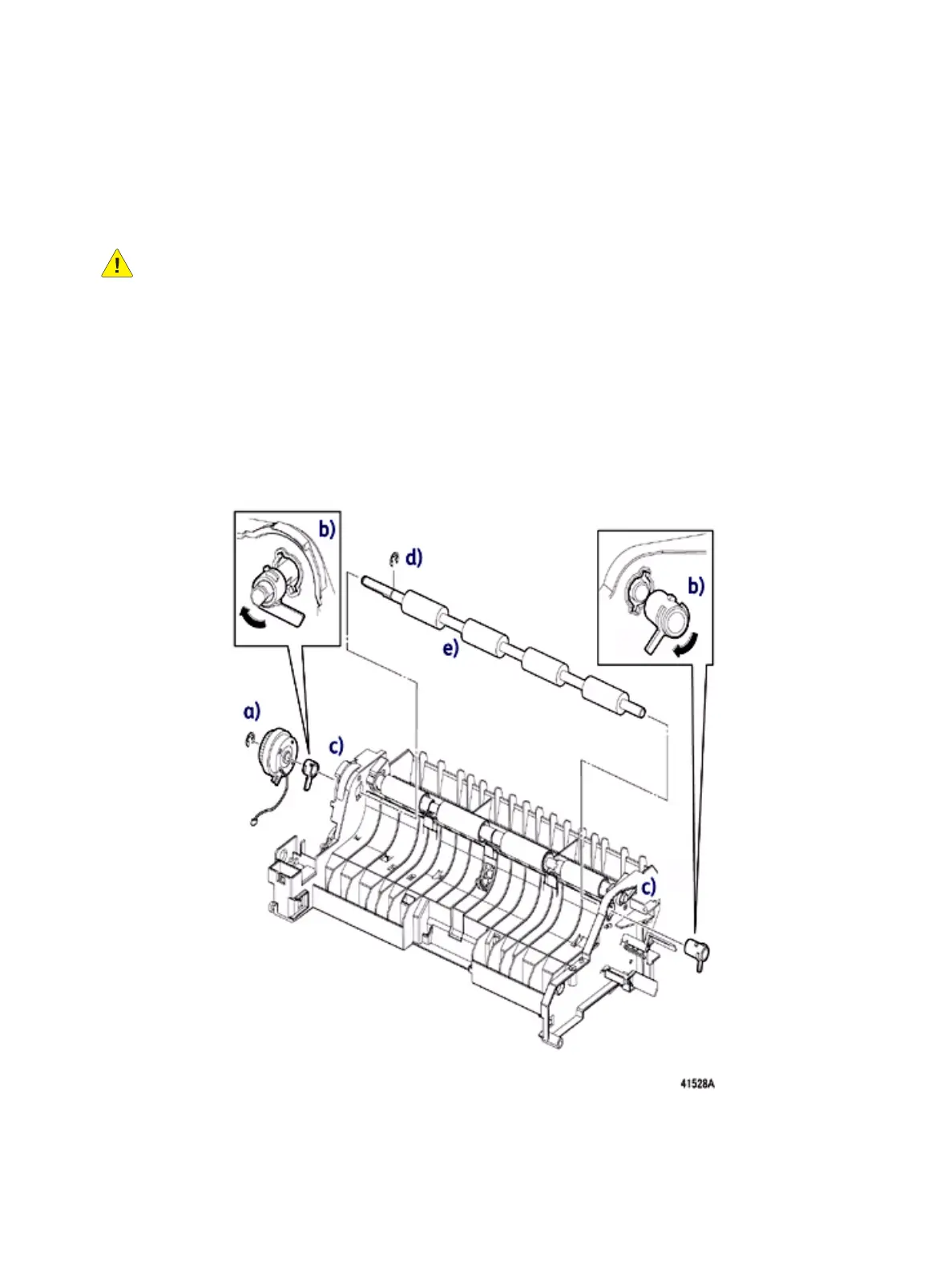

Figure 1

Xerox WorkCentre 3615 Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 1200 dpi
Fax	Yes
Duplex Printing	Yes
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory (Standard)	256 MB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Print Speed	47 ppm
Scan Resolution	600 x 600 dpi
Automatic Document Feeder	50 sheets
Connectivity	Ethernet
First Page Out Time (Copy)	8.5 seconds
Paper Capacity	250 sheets
Network Connectivity	Ethernet
Operating System Compatibility	Windows, Mac, Linux
