Xerox WorkCentre 3615

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-50
Replacement

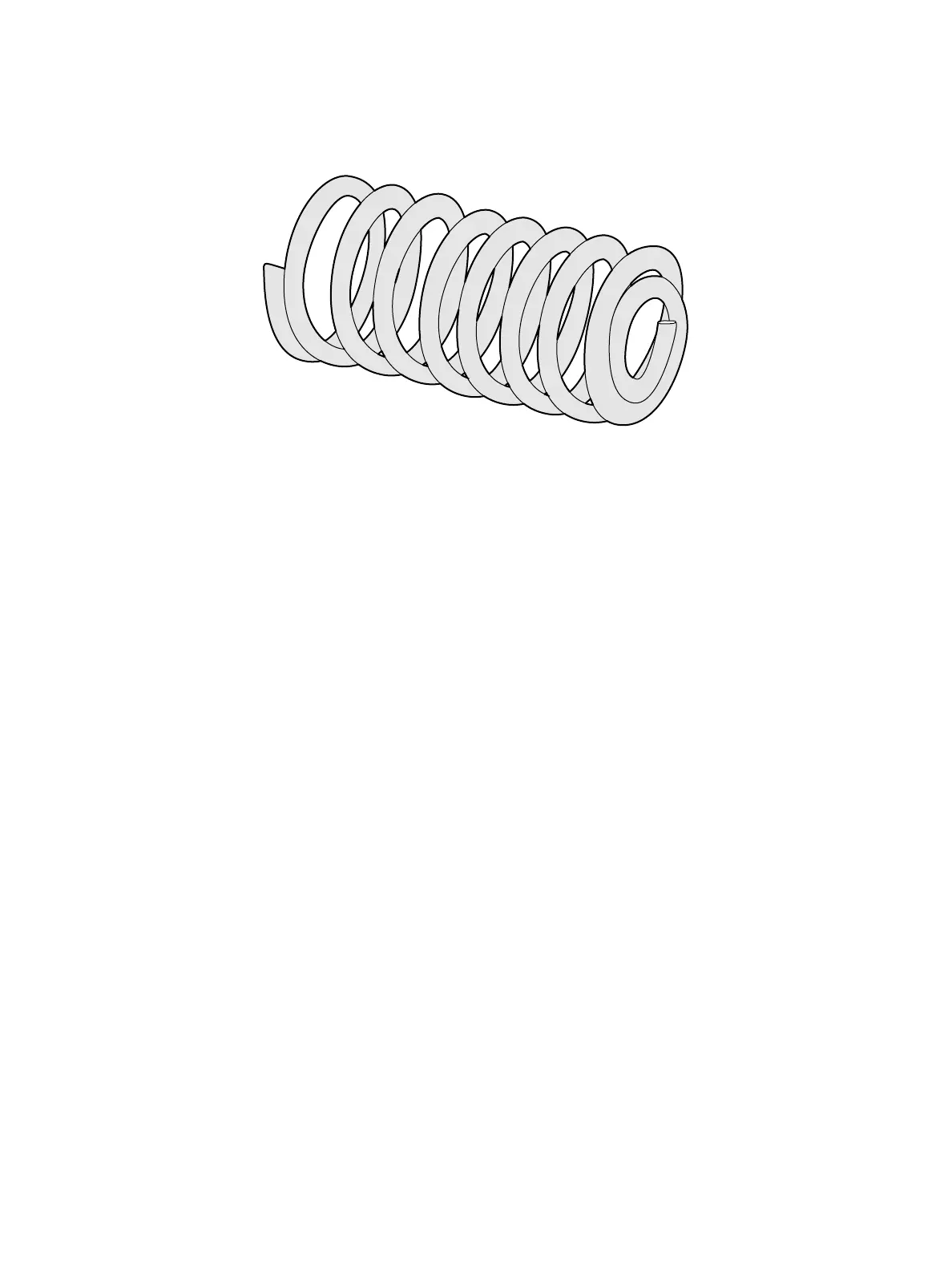

1. Install the plastic registration roller tension springs with the extra coil facing the shaft. (Figure 2)
Figure 2
2. Replace in reverse order.
s3610-083
