Xerox WorkCentre 3615 Service Manual

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-6
Covers
REP 1.1 Control Panel (3610)
PL 1.1 Covers (3610)
Removal

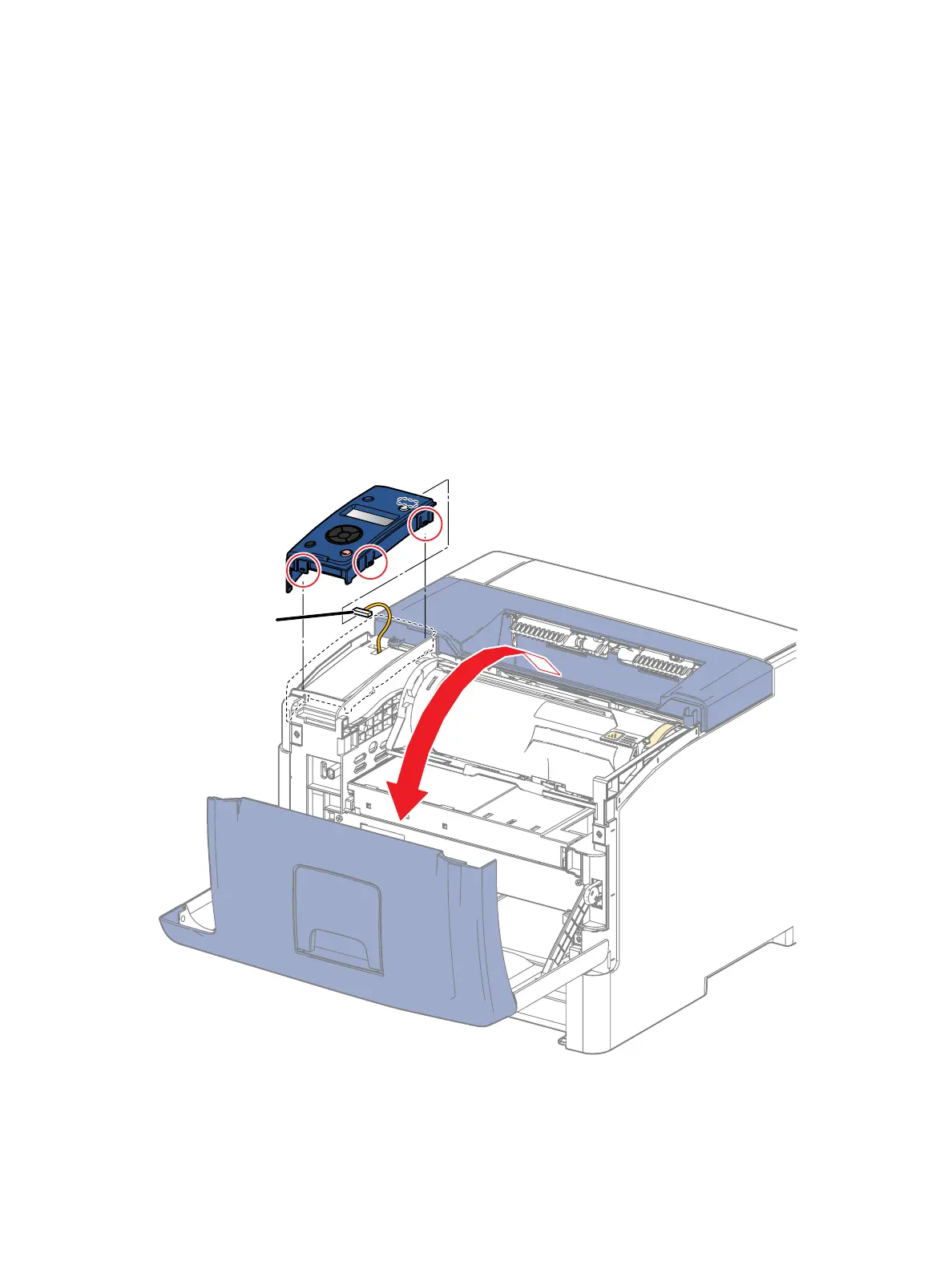

1. Open the Front Cover.
2. Remove the Control Panel (Control Panel). (Figure 1)
a. Release 3 clips.
Note: the use of a small flat-head screwdriver may be necessary to release the 2 tabs on the right
of the assembly.
b. Lift the Control Panel to access the connector and disconnect P/J220.
Figure 1
Replacement
1. Replace in reverse order.
s3610-06
2
P/J220
a)
b)

Xerox WorkCentre 3615 Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 1200 dpi
Fax	Yes
Duplex Printing	Yes
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory (Standard)	256 MB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Print Speed	47 ppm
Scan Resolution	600 x 600 dpi
Automatic Document Feeder	50 sheets
Connectivity	Ethernet
First Page Out Time (Copy)	8.5 seconds
Paper Capacity	250 sheets
Network Connectivity	Ethernet
Operating System Compatibility	Windows, Mac, Linux
