Xerox WorkCentre 3615 Service Manual

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-123
REP 7.4 Rear Cover
PL 7.1 Tray 1/Optional Tray 550-Sheet Feeder (1/4)
Removal
1. Remove the Tray from the 550-Sheet Feeder.
2. Remove (REP 7.1 550-Sheet Feeder).

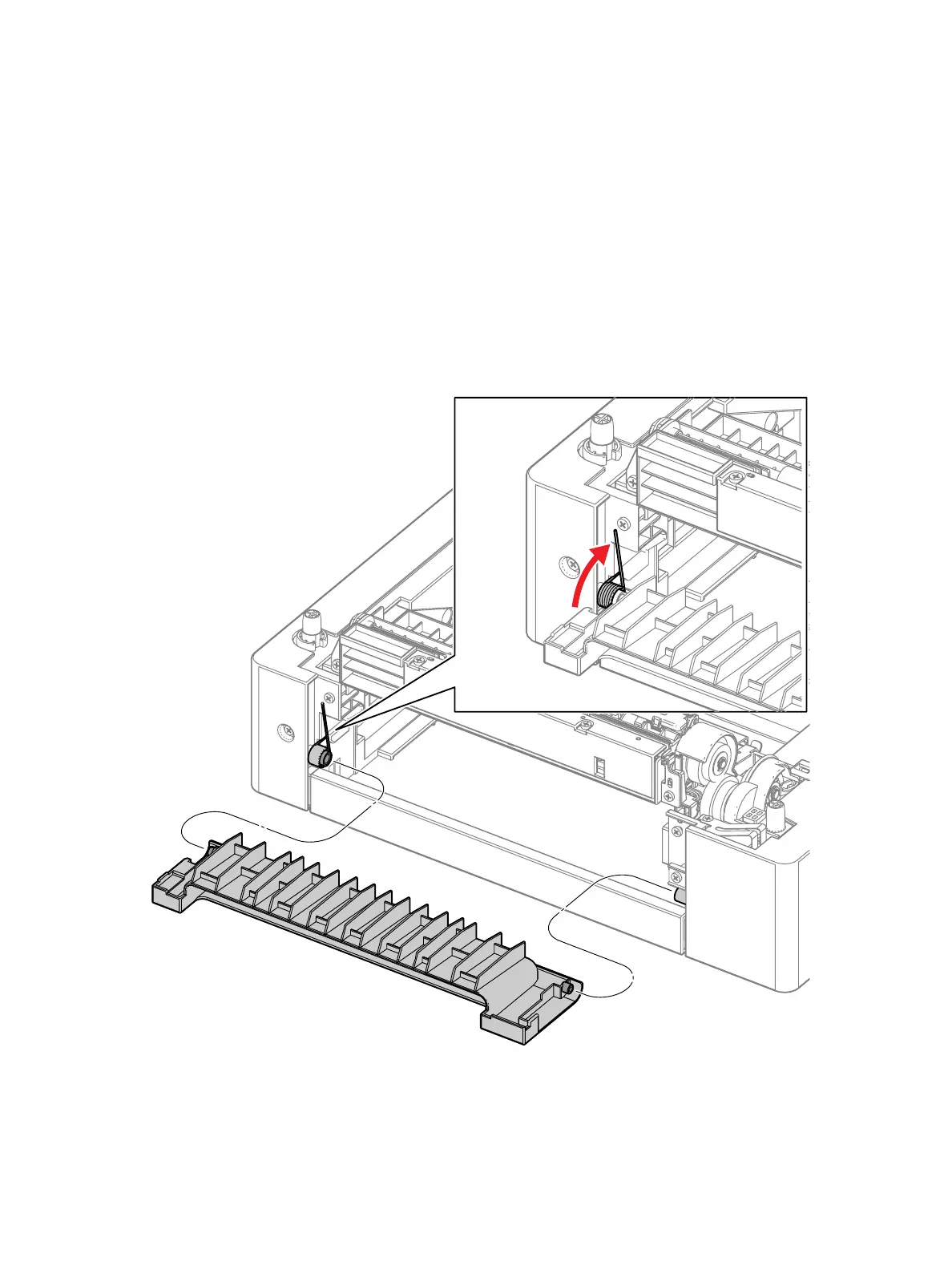

3. Remove the Rear Cover. (FIgure 1)
a. Open the Rear Cover
b. Remove one side of the Rear Cover Spring from the Rear Cover.
c. Release the left boss to remove the Rear Cover.
Figure 1
Replacement
1. Replace in reverse order.
s3610-112
b)
c)
a)

Xerox WorkCentre 3615 Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 1200 dpi
Fax	Yes
Duplex Printing	Yes
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory (Standard)	256 MB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Print Speed	47 ppm
Scan Resolution	600 x 600 dpi
Automatic Document Feeder	50 sheets
Connectivity	Ethernet
First Page Out Time (Copy)	8.5 seconds
Paper Capacity	250 sheets
Network Connectivity	Ethernet
Operating System Compatibility	Windows, Mac, Linux
